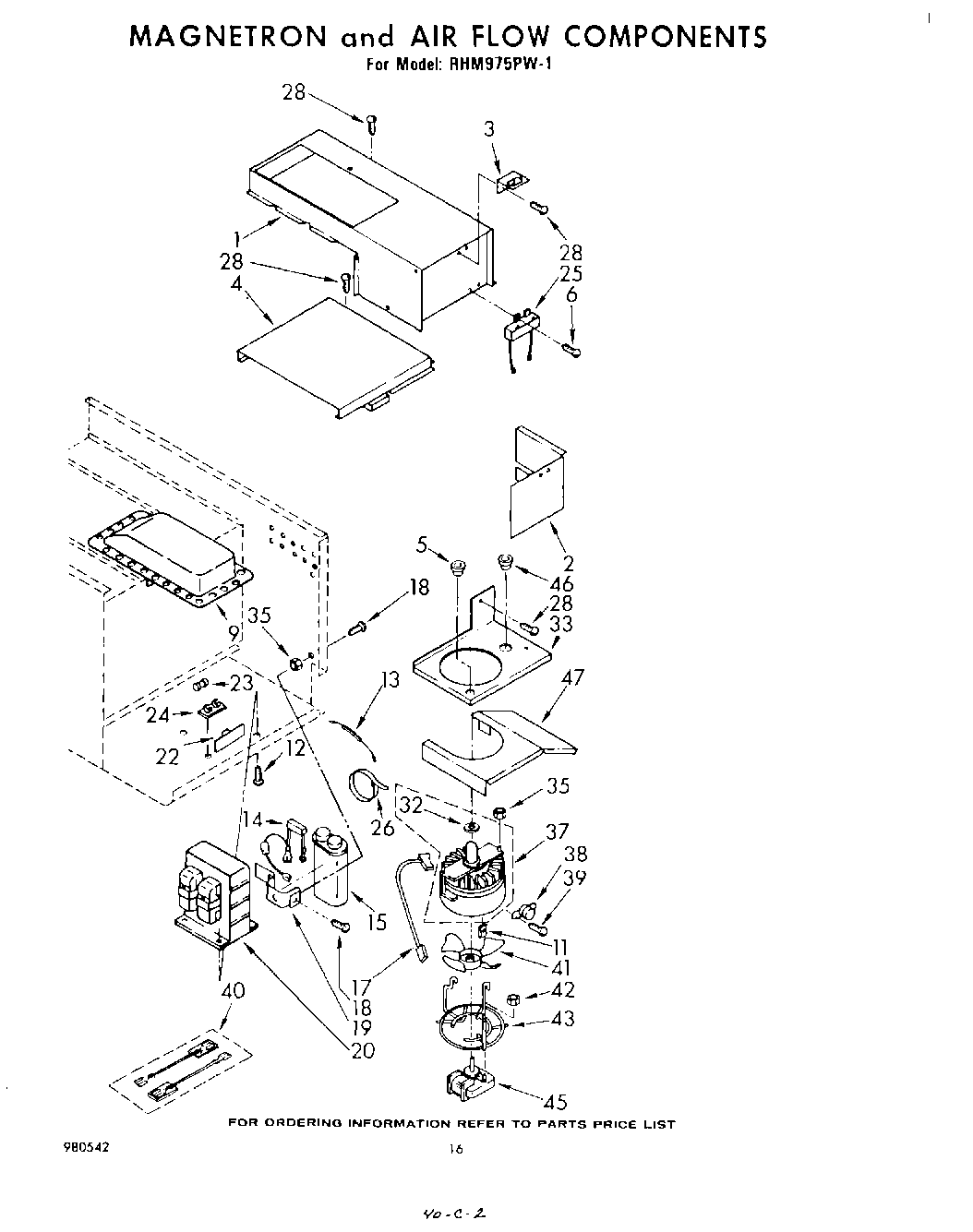

RHM975PW1 10 – MAGNETRON AND AIR FLOW , LITERATURE

Products

Position	Product
	Enamel, Black (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Platinum
2	Baffle, Air
3	Bracket, Receptacle
4	Duct, Discharge
5	Bushing, Wire
6	WP965173 Whirlpool Dishwasher Screw
9	Guide, Wave (Riveted At Assembly, Not Serviceable)
11	Clip (2)
13	Varistor Assembly
14	Rectifier, High Voltage (Includes Illus. 13)
15	Capacitor (Alternate)
15	Cover-Lock
17	Wire, High Voltage (Capacitor)
18	Main Chassis (Screw, 10-32 x 1/2)
19	Bracket, Capacitor
20	Transformer
22	Shield, Fuse
23	WPW10017410 Whirlpool Fuse
24	Block, Fuse
25	Relay, Reed
26	WPW10339879 Whirlpool Wire Tie
28	panel, top (screw, 10a x 3/8 (3))
32	Gasket, Magnetron (Use W/Litton Magnetron)
33	Duct, Bottom Air
35	Hex Nut, 10-32 (2)
37	Magnetron
38	Thermostat
39	Screw
40	Wire Kit, High Voltage (Magnetron)
41	Blade, Fan
42	Nut
43	Mount, Fan Motor
45	Motor Fan (Alternate)
45	Motor, Fan (Alternate)
46	Snap Bushing
47	Wire (14 Ga. 150 c Yellow)
47	WPL 310847
47	WPL 980542
47	WPL 311084
47	WPL 309600
47	350942 Whirlpool Spray Paint
47	WPL 310885
47	WPL 310081
47	WPL 310053
47	Touch-Up, Oven
47	WP75614 Whirlpool Connector
47	WPL 308500
47	72109 Whirlpool Dacor Avocado Touch-Up Paint
47	WP482338 Whirlpool Refrigerator Adhesive
47	72032 Whirlpool Touch Up Paint Black
47	285006 Whirlpool Spray
47	Wire, 25“ Roll (White 14 GA.)
47	Wire, 25` Roll (Red 14 Ga.)
47	Wire, 25` Roll (Black 14 Ga.)
47	WPW10208653 Whirlpool Insulation
47	WPL 799832
47	511873 Whirlpool Refrigerator Paint
47	Golden Harvest
47	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47	WP72107 Whirlpool Touchup
47	72017 Whirlpool Appliance Touch-Up Paint White
47	350956 Whirlpool Spray Assembly
47	Paint, Touch-Up 1/2 Oz. (Coffee)
47	paint, spray 13 oz. (coffee)
47	Paint, Spray 13 Oz. (Avocado)
47	WPL 799351
47	261900 Whirlpool Microwave Spray
47	Grease
47	Leveler (Thinner) (2oz.)
47	WPL 591014
47	1
47	Wire (14 Ga. 200 c Brown)
47	18 Ga. 80~c Rating (Red)
47	Wire (12 Ga. 150 c Black)
47	Wire (14 Ga. 150 c Orange)
47	Wire (14 Ga. 150 c Green)
47	Wire (14 Ga. 150 c Brown)
47	Wire (14 Ga. 150 c Blue)
47	WP261869 Whirlpool Microwave Paint
47	242831 Whirlpool Oven Wire
47	350930 Whirlpool White Spray Paint
