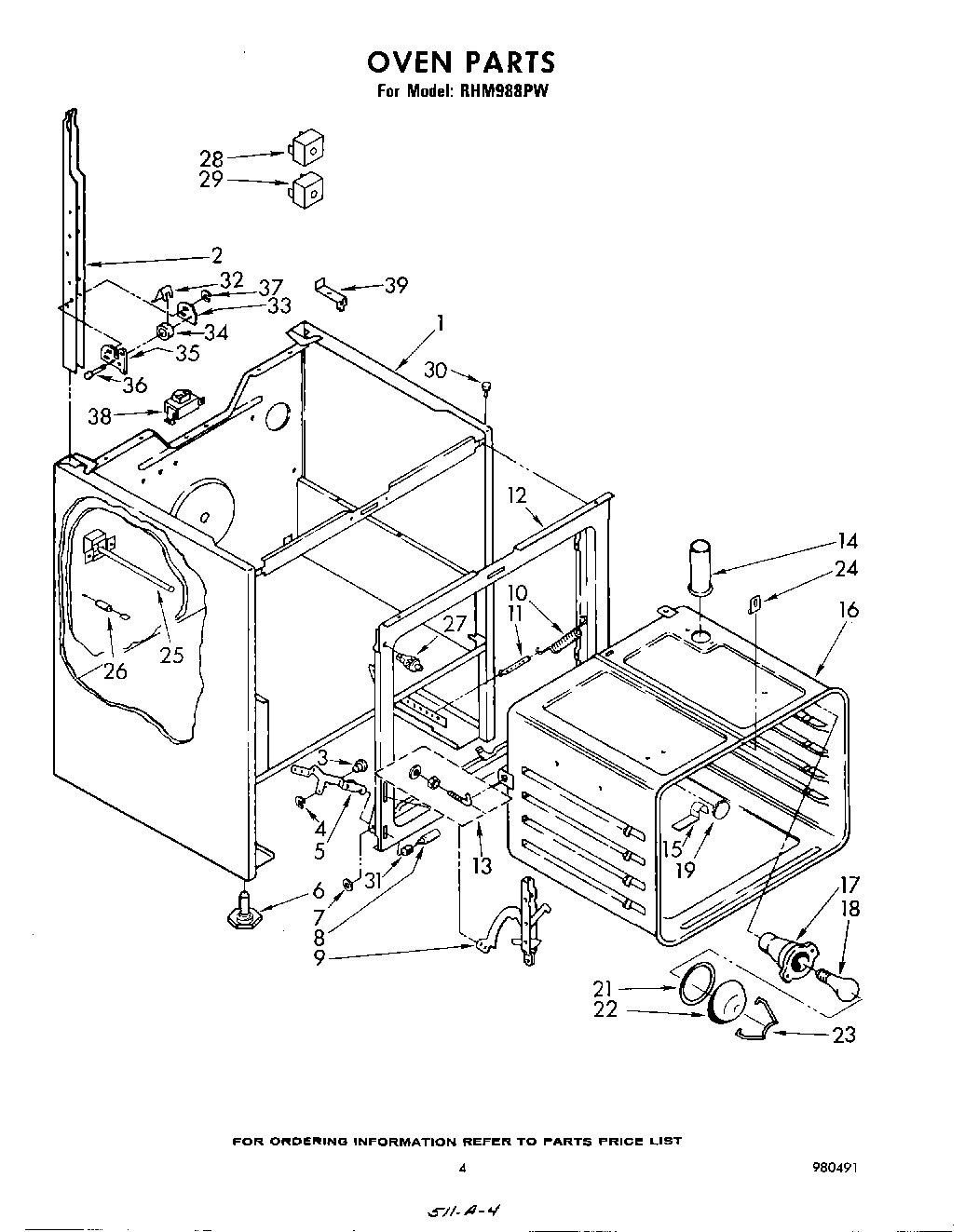

RHM988PW 03 – OVEN

Products

Position	Product
1	Lining-Compartment Door (16331A,2A
1	main chassis (almond)
1	Griddle Cover (Almond 1633L1A, L2A)
2	Flange Nutxxx
2	Support, Tube (R.H.)
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	Main Chassis (Screw, 10-32 x 1/2)
5	Hinge (L.H.)
5	Hinge (R.H.)
6	WP233550 Whirlpool Leveling Feet
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel, Arm (2)
10	WP308126 Whirlpool Door Spring
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
13	Oven Mounting Kit
14	Vent, Oven
15	98005642 Whirlpool Clip
15	WP308685 Whirlpool Microwave Screw
16	Insulation-Latch
17	Socket, Oven Light (Alt.)
17	Screw (10-12 x .875)
18	RANGE ONLY 40W 120V APPL BULB
19	Plug Button
21	Gasket, Light
22	Cover, Light
23	Retainer, Light
24	Clip, Oven
24	Screw, 10A x 1/2
25	Wire Cover-Thermostat
26	Resistor & Terminal Assembly
27	Switch, Plunger
28	Switch, Broil
29	Screw, 6A x 1 1/4 (2)
29	Switch, Bake
30	238614 Whirlpool Bumper Hinge
31	Snubber, Door (2)
32	WPL 308977
33	Plate, Roller Guide
34	WPL 308976
35	WP308544 Whirlpool Screw
35	hinge (2)
36	Pin, Roller
37	Ring, Retaining (2)
38	Ballast (Alt.)
39	WPL 309102
39	SCREW
