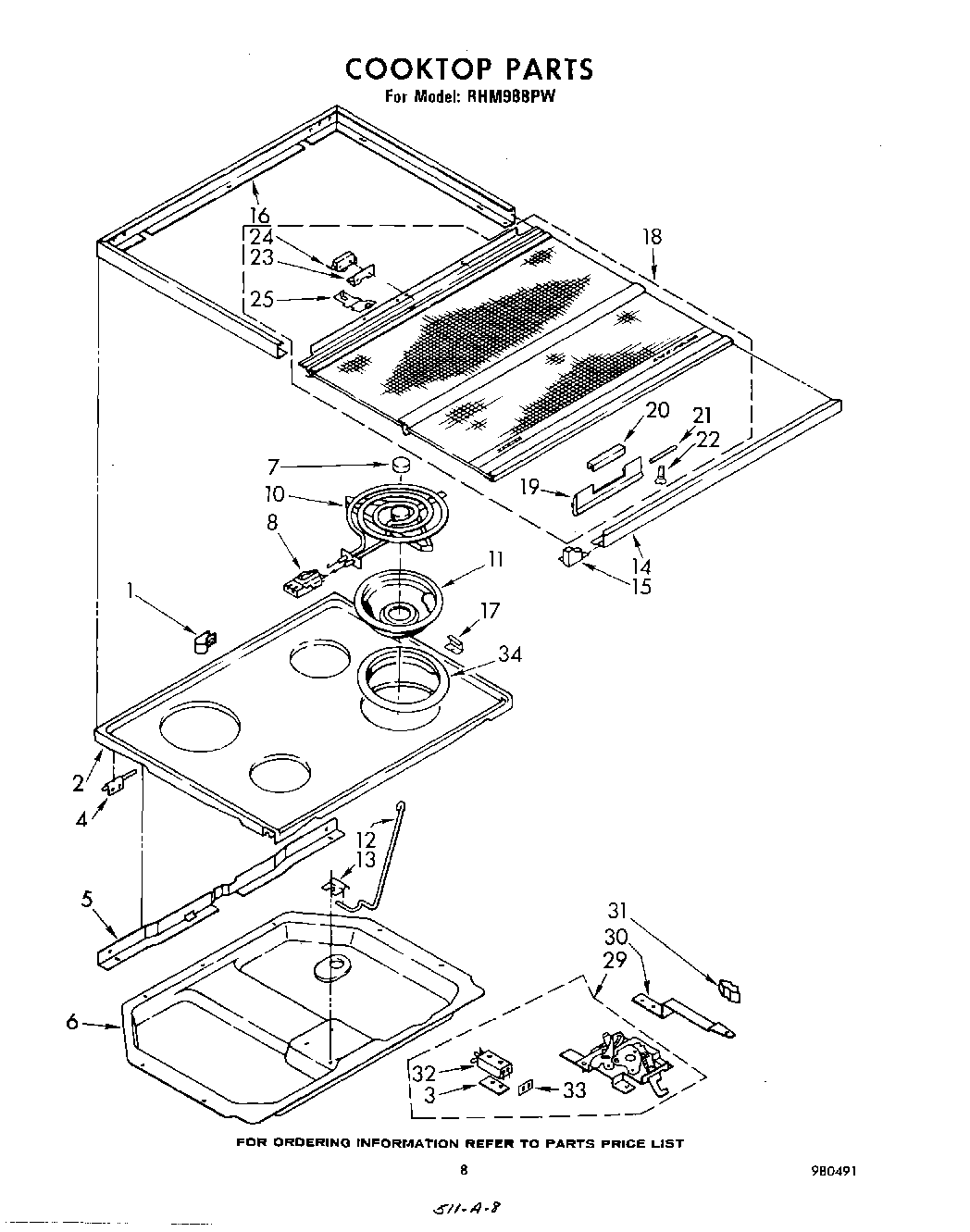

RHM988PW 05 – COOKTOP

Products

Position	Product
1	WP308605 Whirlpool Refrigerator Clamp
2	Clip (2)
2	Cooktop (Golden Harvest)
2	Cooktop (White)
2	Cooktop (Almond)
3	Insulator, Switch
4	Hinge, Leaf Cooktop R.H.
4	Hinge, Leaf Cooktop L.H.
5	Shield, Wiring
6	burner box
6	Screw, 10 x .5HH
7	medallion
8	WP486754 Whirlpool Compactor Screw
8	BURNER RECEPTACLE KIT
10	WPY04100165 Whirlpool Surface Element
10	WP660533 Whirlpool Oven 8" Surface Element
11	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
12	Rod, Cooktop
13	Retainer, Cooktop
13	WP3390631 Whirlpool Screw
14	Trim, Front
15	Clip (4)
15	Screw, 8A x 3/8 (2)
15	end cap trim r.h.
15	end cap trim l.h.
16	W11693756 Whirlpool Screw Assembly
16	trim, cooktop side & rear
17	WP308685 Whirlpool Microwave Screw
17	bracket, cooktop (6)
18	Glass Top Assembly
19	Handle
20	Retainer, Handle
21	Pin, Retainer (2)
22	Screw, 4B x 1/4 (2)
23	Pivot Angle
24	Switch
25	Switch, Actuator
29	SCREW
29	Latch Assembly
29	Screw
30	Handle, Latch
30	Screw
31	WP488627 Whirlpool Refrigerator Screw
31	Knob, Latch
32	Safety Switch
32	Screw
33	Terminal
34	W10858781 Whirlpool Trim Ring
34	W10854470 Whirlpool Trim Ring
