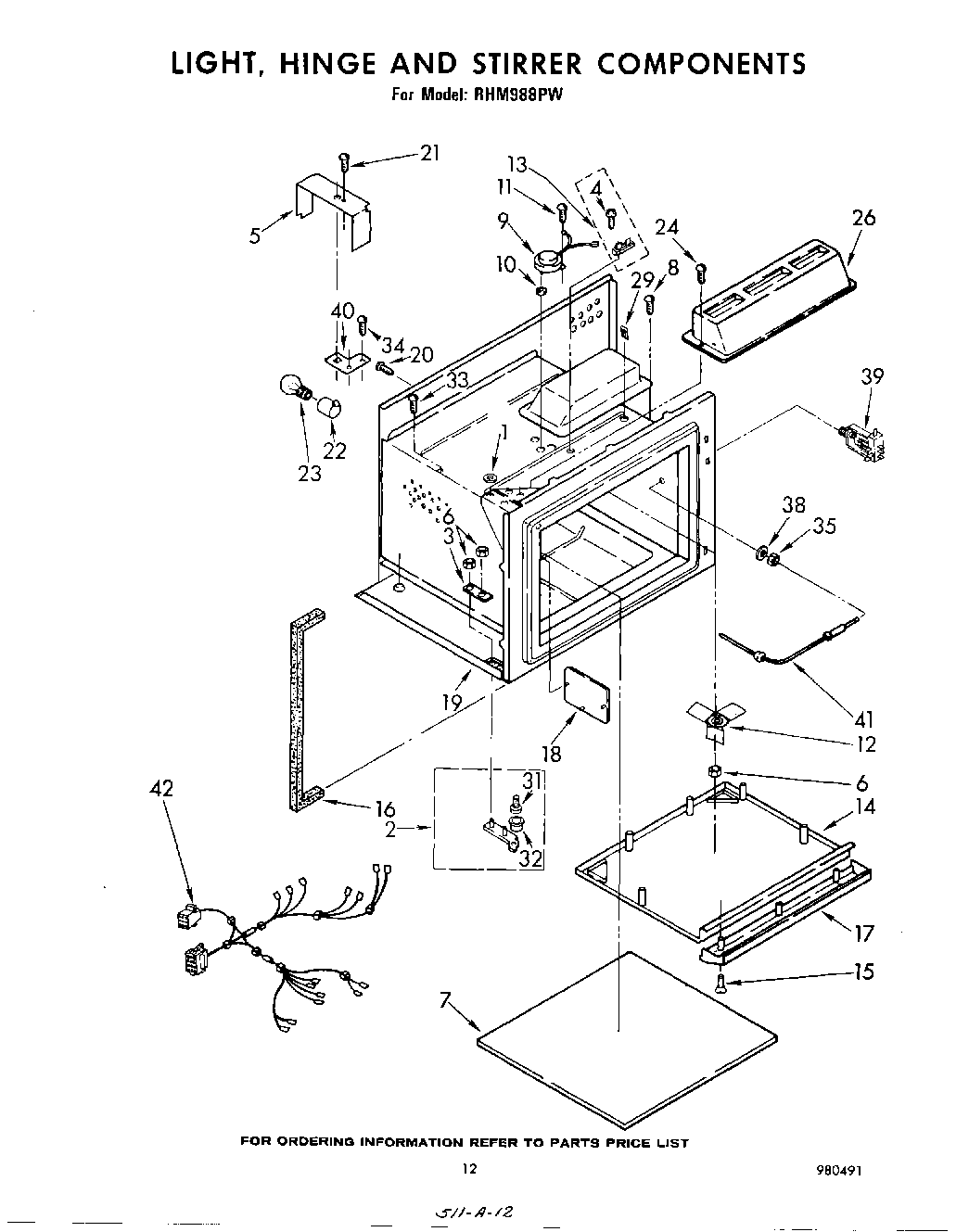

RHM988PW 07 – LIGHT, HINGE AND STIRRER

Products

PositionProduct
1Washer
2Hinge, Door (Top)
2WPL 328127
3Plate, Hinge
4WP965173 Whirlpool Dishwasher Screw
5Shield, Lamp
6Nut, Hex (1/4-20)
7Base, Ceramic (Install W/Silastic No. 482338)
9Motor, Stirrer
10Gasket, Stirrer Motor
11Screw
12Stirrer, 3-Blade
13Fuse, Thermal
14Cover, Stirrer
15Screw, 10 x 2
16Seal, Light
17Cover, Front
18Shield, Exhaust Probe
19Base & Cavity Assembly (Not Serviceable)
20Main Chassis (Screw, 10-32 x 1/2)
21panel, top (screw, 10a x 3/8 (3))
22Socket, Snap-In
23RANGE ONLY 40W 120V APPL BULB
24WP487353 Whirlpool Refrigerator Screw
26Baffle, Air Exhaust
29Fastener, Slide
31Pin, Hinge
32Bushing
33WP308685 Whirlpool Microwave Screw
34Screw, 10-32 x 1/2
35Nut
38Washer
39Jack, Probe
40Oven Burner Support
41Meat Probe
42Harness, Wiring (Main) (Microwave)
