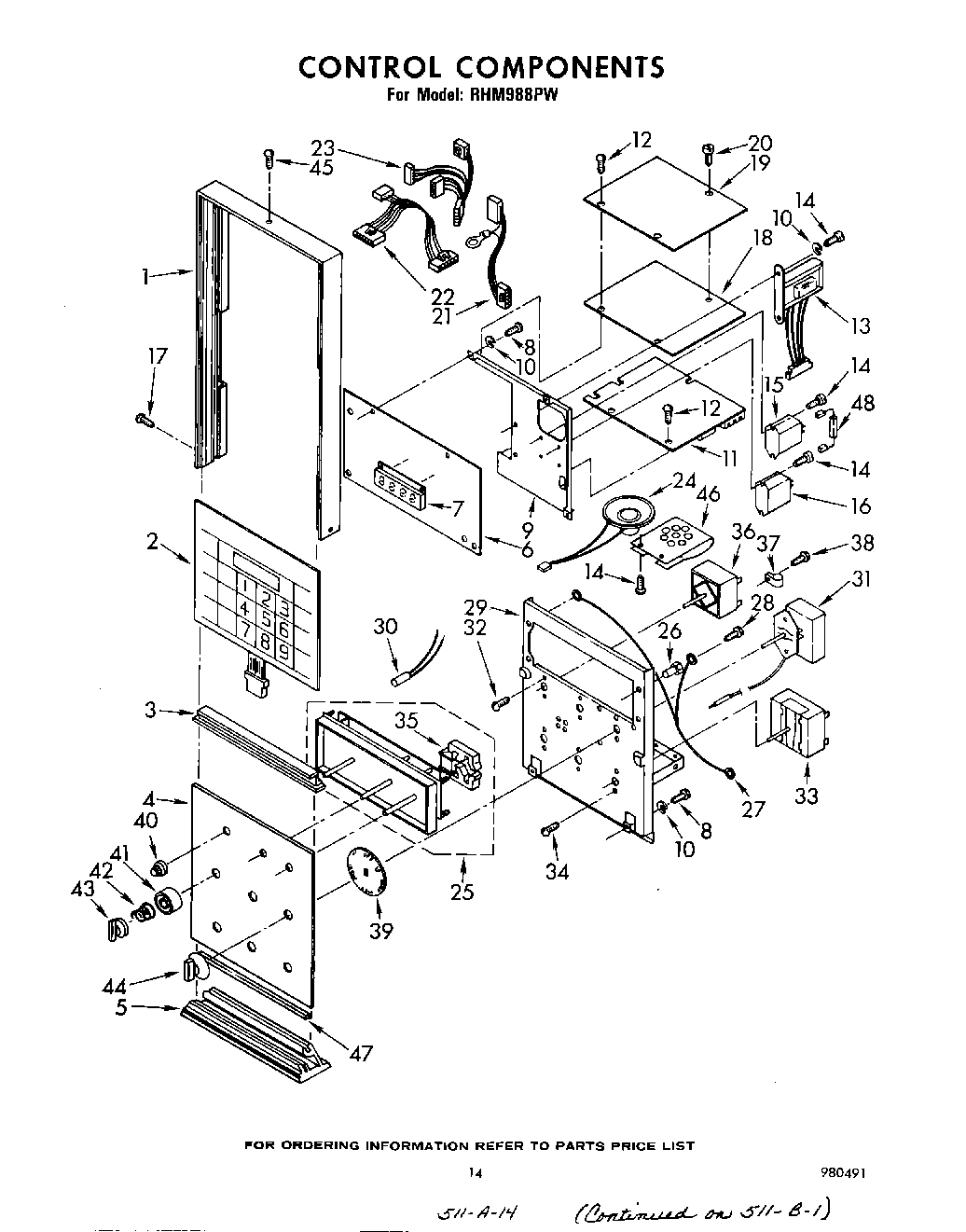

RHM988PW 08 – CONTROL

Products

Position	Product
1	Frame, Control Panel
2	Switch, Touch
3	Splice, Panel
4	Panel, Glass
5	Cap, Control Panel
6	Display Assembly
7	Clock, LED
8	WP486754 Whirlpool Compactor Screw
9	Bracket, P.C. Board
10	Lockwasher
11	Power Supply Assembly
12	WPL 309080
13	Transformer & Harness Assembly
15	Relay, Door & Control (2
16	Relay, Latch (120V)
17	NAMEPLATE
18	Microcomputer Assembly
19	Catch-Storage Door 18850A Models
20	Spacer
21	Harness, Power Supply
22	Harness, Touch Panel
23	Harness, Display
24	Speaker & Harness Assembly
25	Timer
26	Nut, Aluminum (4)
27	Cable, Support
28	Screw
29	Bracket, Control Mounting
30	Light, Indicator 250V (7)
31	Thermostat, Lower Oven
32	screw, 6-32 x 1/4 (2)
33	Switch, Selector
35	Motor, Timer
36	Screw, 8-32 x 3/16 (2)
36	switch, infinite (4)
37	WP308605 Whirlpool Refrigerator Clamp
37	488946 Whirlpool Air Conditioner Clamp
38	W11693756 Whirlpool Screw Assembly
39	Dial, Surface Units (4)
40	knob, timer
41	Bezel, Knob (4)
42	spring, bezel (4)
43	knob, control
44	WP330190 Whirlpool Knob
45	WP488627 Whirlpool Refrigerator Screw
46	Screw
46	Bracket, Speaker
47	Support-Top Burner
48	Resistor, Surge (3-Ohm)
