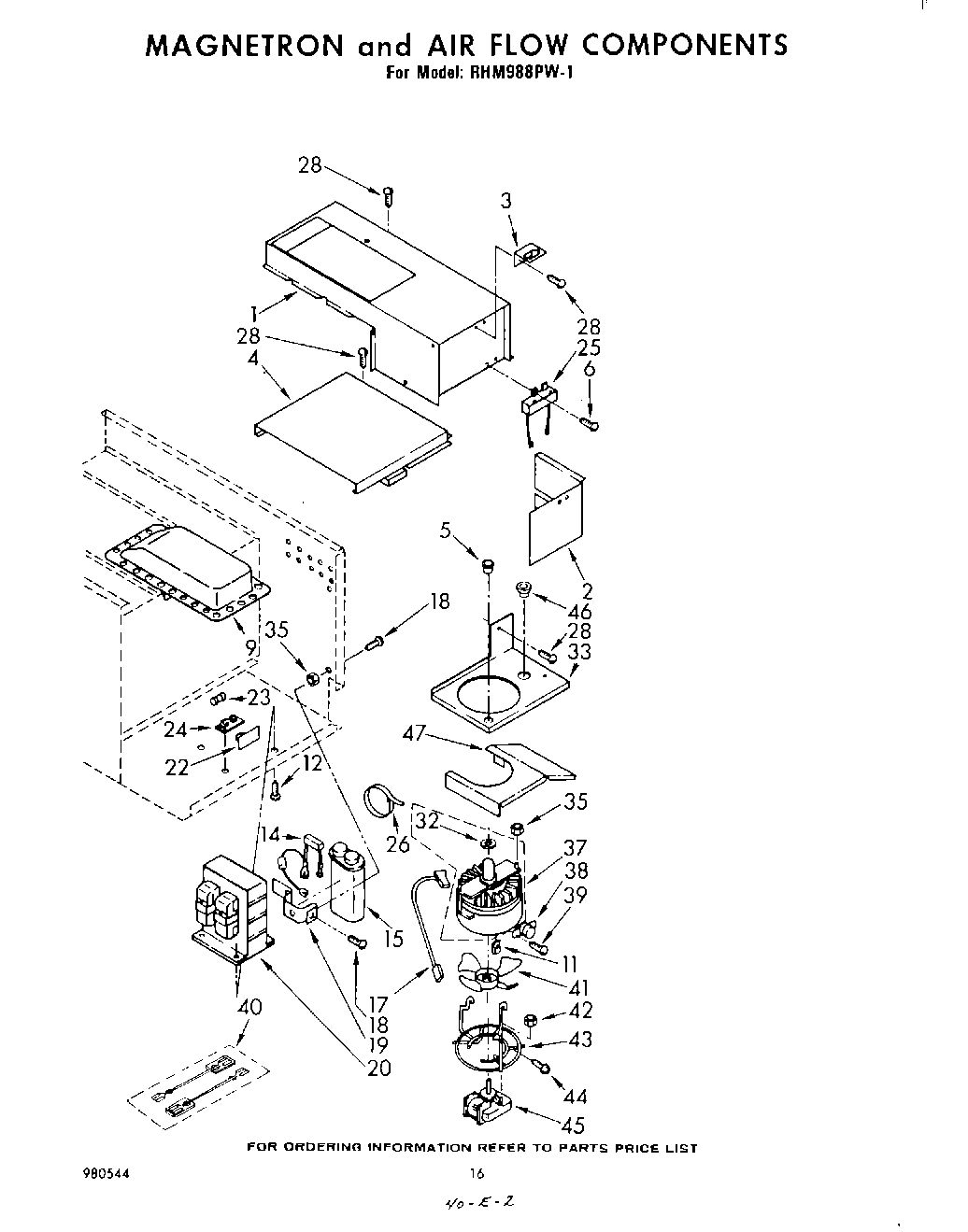

RHM988PW1 09 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Platinum
2	Baffle, Air
3	Bracket, Receptacle
4	Duct, Discharge
5	Bushing, Wire
6	WP965173 Whirlpool Dishwasher Screw
9	Guide, Wave (Riveted At Assembly, Not Serviceable)
11	Clip (2)
14	Rectifier, High Voltage (Includes Illus. 15)
15	Cover-Lock
15	Capacitor (Alternate)
17	Wire, High Voltage (Capacitor)
18	Main Chassis (Screw, 10-32 x 1/2)
19	Bracket, Capacitor
20	Transformer
22	Shield, Fuse
23	WPW10017410 Whirlpool Fuse
24	Block, Fuse
25	Reed Relay (Alternate)
25	Relay, Reed
26	WPW10339879 Whirlpool Wire Tie
28	panel, top (screw, 10a x 3/8 (3))
32	Gasket, Magnetron (Use W/Litton Magnetron)
33	Duct, Bottom Air
35	Hex Nut, 10-32 (2)
37	Magnetron
38	Thermostat
39	Screw
40	Wire Kit, High Voltage (Magnetron)
41	Blade, Fan
42	Nut
43	Mount, Fan Motor
44	WP90767 Whirlpool Screw
45	Motor, Fan (Alternate)
45	Motor Fan (Alternate)
46	Snap Bushing
47	WPL 311084
