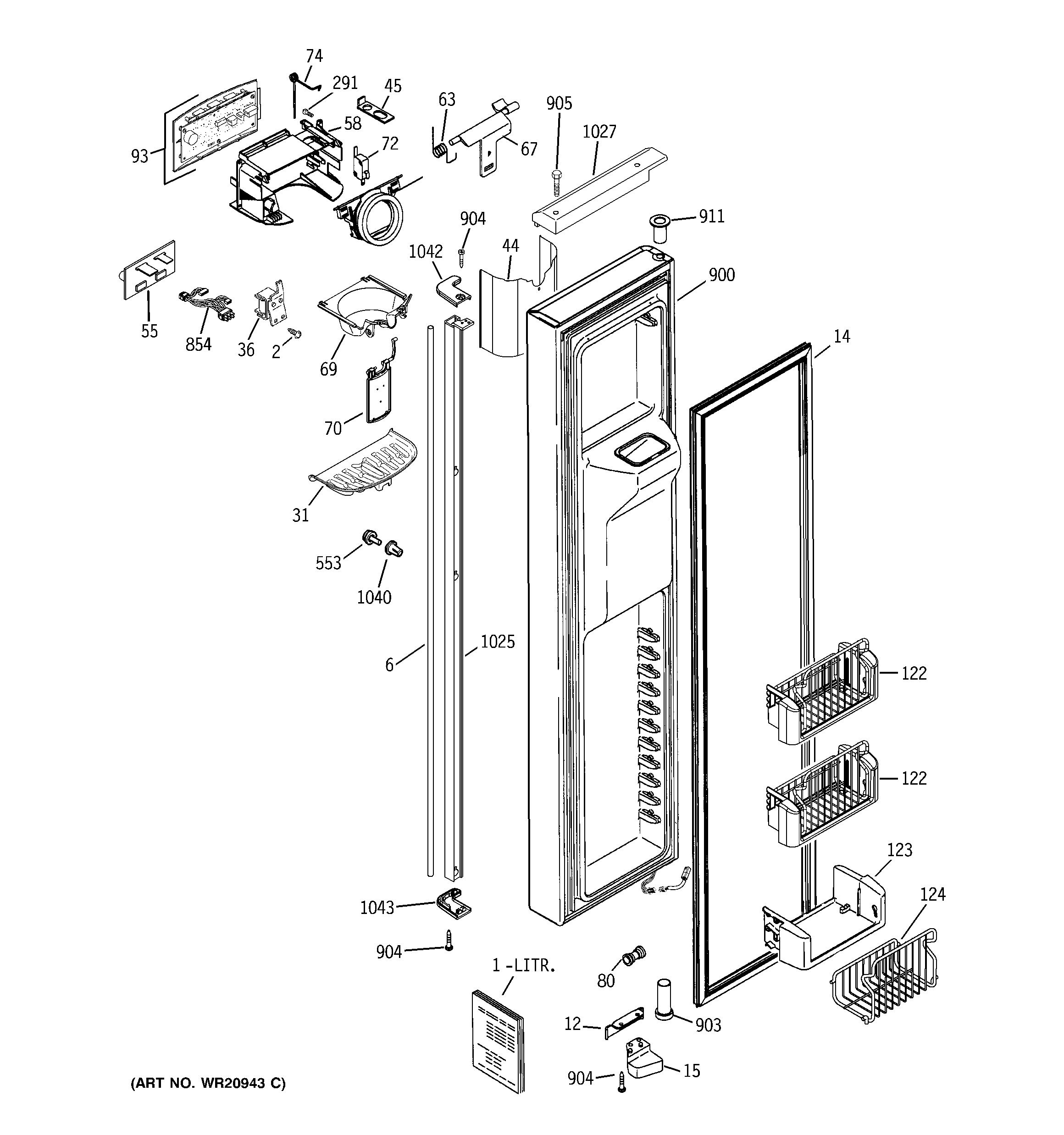

RIE24VGBBFSV FREEZER DOOR

RIE24VGBBFSV FREEZER DOOR

Written by

in

RIE24VGBBFSV FREEZER DOOR

Products

PositionProduct
1GEN 49-60659
1GEN 31-46252
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
12WR02X13425 GE Refrigerator Door Stop
14GEN WR24X10260
15WR02X10780 GE Refrigerator Cam Closure
31WR17X12864 GE Refrigerator Grille Recess
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
44WR17X12110 GE Refrigerator Recessed Overlay
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X12491 GE Refrigerator Housing Shield Dispenser
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12983 GE Refrigerator Ice Dispenser Funnel
70GEN WR17X13040
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X10953 GE Refrigerator Dispenser Control
122GEN WR71X11039
123GEN WR71X10358
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
553GEN WR01X10416
854WR23X10665 GE Dispenser Recess Harness
900GEN WR78X12861
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
905WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
911WR01X10956 GE Door Thimble
1025GEN WR12X10443
1027GEN WR17X10946
1040WR02X12266 GE Fastener
1042GEN WR17X13054
1043GEN WR17X13053
