RJ734GP1

RJ734GP1

Written by

in

RJ734GP1

Products

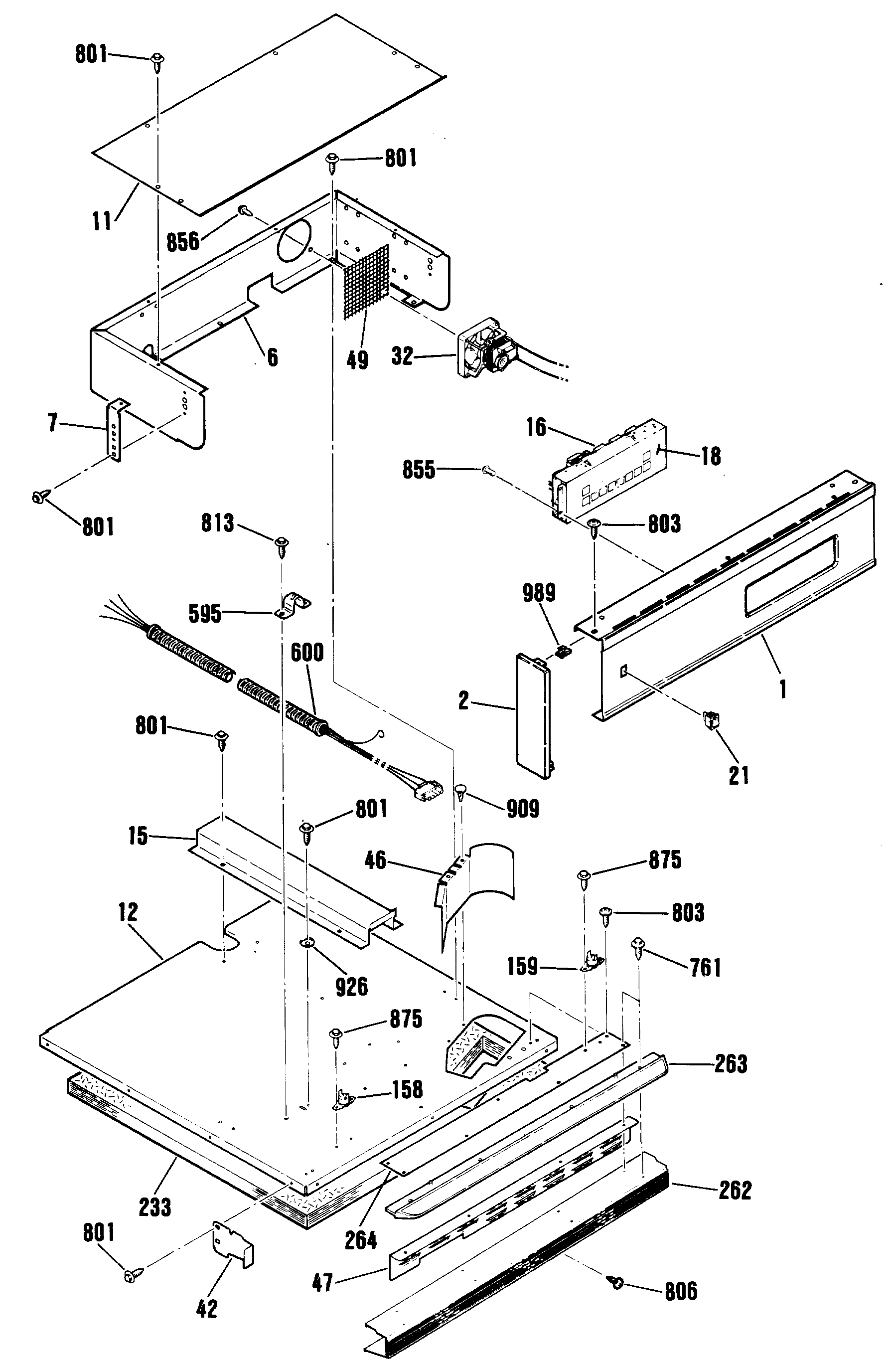

PositionProduct
1GEN WB36K5134
2GEN WB36K5129
2GEN WB36K5128
4WB63M45 GE Cabinet Back
6GEN WB37K5013
7GEN WB02X9658
11GEN WB63K5100
12GEN WB63K5120
15WB2X9665 GE Wire Cover
16GEN WB27K5054
18UNKNOWN
21WB24K5035 GE Oven Rocker Switch
25GEN WB02M0041
32FAN ASM-LOWER
42GEN WB34K5102
42GEN WB34K5101
46GEN WB34K5099
47WB38K5029 GE Oven Vent Barrier
49GEN WB07X5016
68GEN WB02M0040
79WB34K5077 GE Oven Door Baffle
101WB35K5054 GE Oven Door Insulation
102DOOR PLUG INSULATION
111OVEN DOOR LINER
112OVEN DOOR LINING
113WB2K5159 GE Oven Door Insulation
114GEN WB02M0001
117GEN WB02K5131
118OV DR LINING STIFFENER
121GEN WB57K5067
122GLASS-INTERMEDIATE
123WB36X779 GE Oven Glass Center
124GEN WB57M0022
125GEN WB34K5091
131WB2X9168 GE Oven Seal
132GASKET-OVEN DOOR
136GEN WB15K5017
140OV DR FRAME W/REFLECTOR
143FIBER WASHER
147UNKNOWN
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
158LIMIT SWITCH-TO CAB TOP
159WB24K5085 GE Oven Limit Switch
161GEN WB24X0452
184WB34K5228 GE Oven Door Lock Plate
191WB15K5016 GE Oven Lock Lever Assembly
201GEN WB63K5115
202UNKNOWN
203GEN WB63K5118
211GEN WB02K5180
212GEN WB63K5116
213UNKNOWN
221GEN WB63K5117
227GEN WB02K5173
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
233GEN WB35K5066
241WB48T10094 GE Oven Rack
245GEN WB02M0030
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262GEN WB07K5128
263GEN WB07K5109
264GEN WB07K5121
266GEN WB02X9634
268UNKNOWN
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
282GEN WB28K5010
286UNKNOWN
291GEN WB02X9152
294UNKNOWN
300GEN WB07M0010
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5202
760WB1X536 GE Oven Screw
770WB1K5072 GE Oven Screw
801WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
815SCREW
819SCREW
833WB1X1131 GE Screw 6-32
856WB1X1293 GE Oven Screw
875GEN WB01K5057
909WB1X1173 GE Rivet
918WB1K5071 GE Oven Plastic Rivet
989WB1K5209 GE Oven Clip
999GEN 31-13058
999GEN 31-0975
999GEN WB18K5264
999GEN WB18K5269
999GEN 39-4688
