RJCT3681A 01 – BODY/MANIFOLD

RJCT3681A 01 – BODY/MANIFOLD

Written by

in

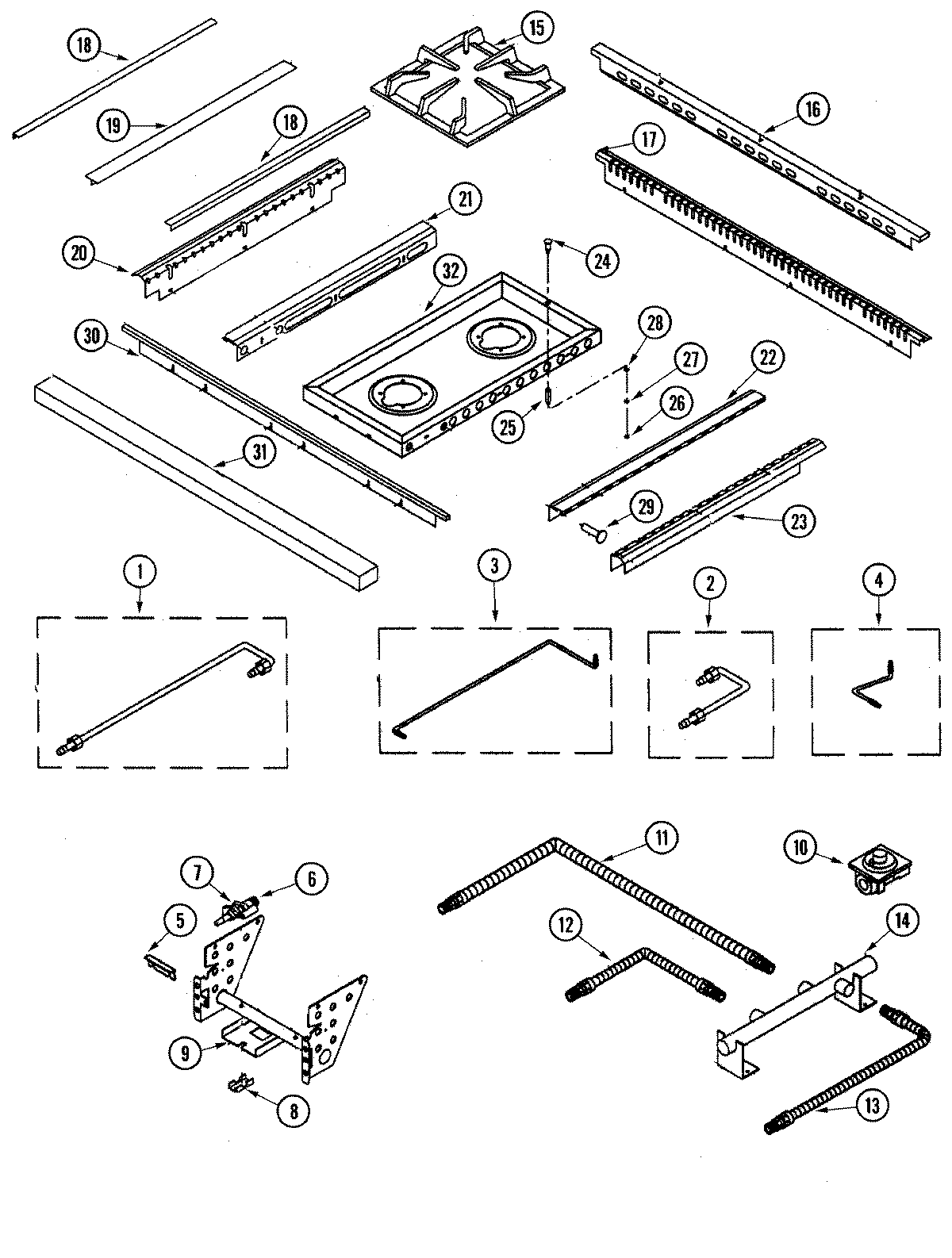

RJCT3681A 01 – BODY/MANIFOLD

Products

Position	Product
1	MAY 70001976
1	MAY 70002027
2	MAY 70002026
2	MAY 70002025
2	MAY 70001977
2	MAY 70002028
3	MAY 70002031
3	MAY 70001978
4	MAY 70001979
4	MAY 70002032
4	MAY 70002030
4	MAY 70002029
5	MAY 70001980
6	VALVE (W/.42 LP ORIFICE) 3/8“
6	VALVE (W/.70 NAT ORIFICE) 3/8“
7	MAY 70001983
8	BRACKET, VALVE (W/SCREWS)
8	SCREW, BRACKET/VALVE
9	MANIFOLD ASSEMBLY (MIDDLE)
10	MAY 70001038
12	MAY 70002350
13	MAY 70001988
14	MANIFOLD – ASSY -RJDF
15	MAY 70001761
15	GRATE, SEALED BURNER
16	MAY 70002004
16	SCREW, REAR STRIP
17	MAY 70002995
18	MAY 70002992
19	STRIP, CENTER – RJDF
20	MAY 70002990
21	MAY 70002991
22	MAY 70002988
23	MAY 70002989
24	FASTENER, BRASS
25	INSERT, THREAD
26	NUT (FASTENER/INSERT)
27	WASHER, LOCK
28	WASHER, PLAIN
29	SCREW
30	MAY 70002007
30	MAY 70002994
31	MAY 70002020
32	SUPPORT, GRATE
