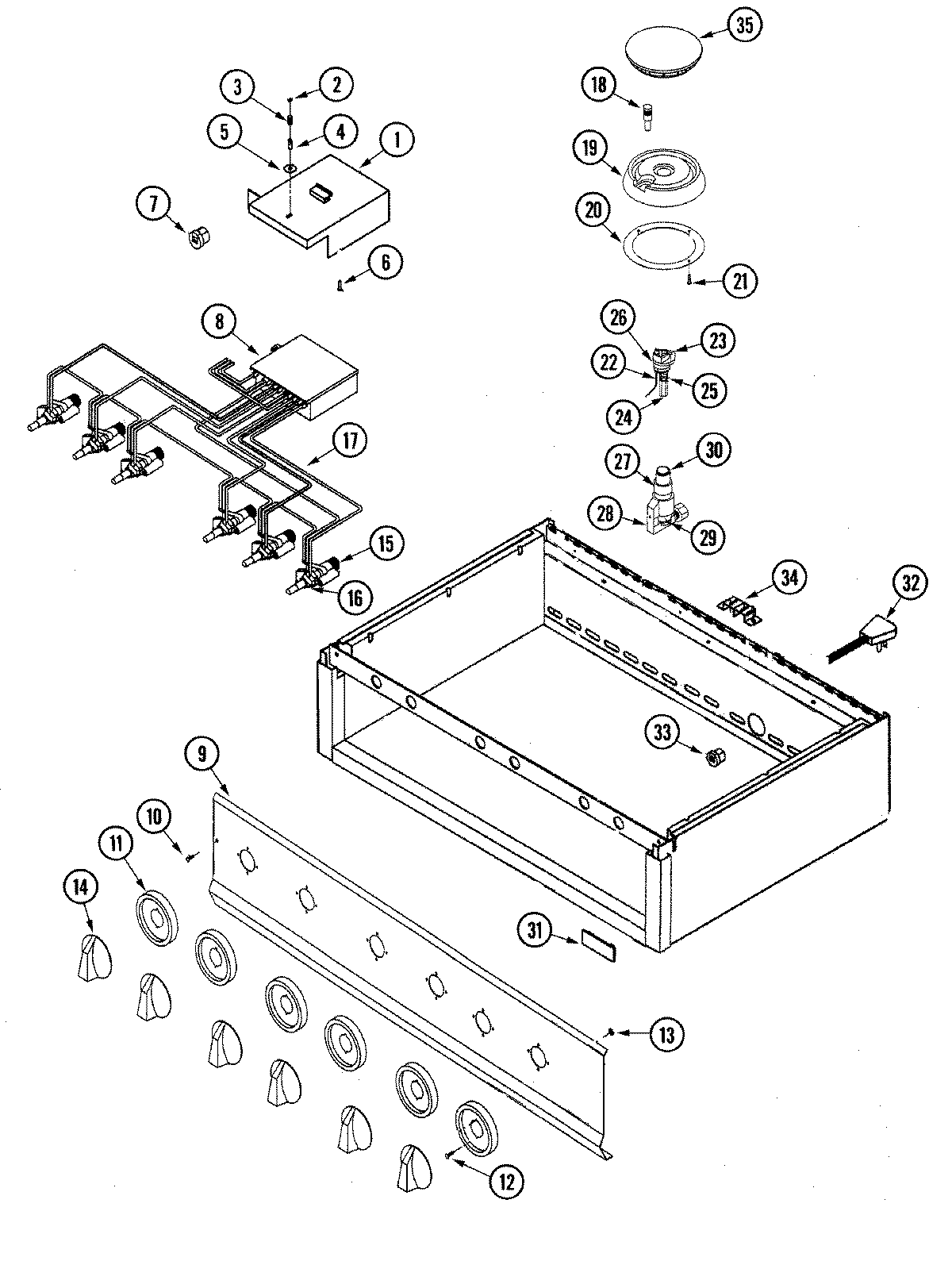

RJCT3681A 02 – CONTROL PANEL/GAS CONTROL

Products

PositionProduct
NIMAY 70002999
NISIMMERMAX OB ASSY, LP
NIMAY 70003000
NIMAY 16023218
NISIMMERMAX OB ASSY. NAT.
1BRACKET, IGNITION MODULE (LWR)
2MAY 70001991
3MAY 70001992
4MAY 70001993
5MAY 70001994
6MAY 70001995
8MODULE, IGNITION
9MAY 70001998
10MAY 70001999
11BEZEL, KNOB (CHROME)
12SCREW, BEZEL
13MAY 70001831
14MAY 70002468
15VALVE (W/.42 LP ORIFICE) 3/8“
15VALVE (W/.70 NAT ORIFICE) 3/8“
16MAY 70001983
17MAY 70003013
18BASE, SIMMER
19BASE, BURNER
20GASKET, SEALED BURNER BASE
22MAY 70003006
22IGNITER/WIRE/TERMINAL(620MM)
23MOUNT, SIMMER BURNER
23SCREW, M5 X 8MM-BURNER MOUNT
24VENTURY, SIMMER
25ORIFICE, SIMMER (NAT) .0125“
25ORIFICE, SIMMER (LP) .0086“
27VENTURI, SEALED BURNER
28BURNER, ELBOW
28SCREW, BURNER ELBOW
29ORIFICE, BURNER (No.50-NAT)
29ORIFICE, BURNER (No.56-LP)
30RING, RETAINING
31MAY 70002345
32CORD, POWER
33MAY 70001996
34MAY 70001230
34MAY 70002007
35CAP, BURNER
