RJCT3690A 02 – CONTROL PANEL/GAS CONTROL

RJCT3690A 02 – CONTROL PANEL/GAS CONTROL

Written by

in

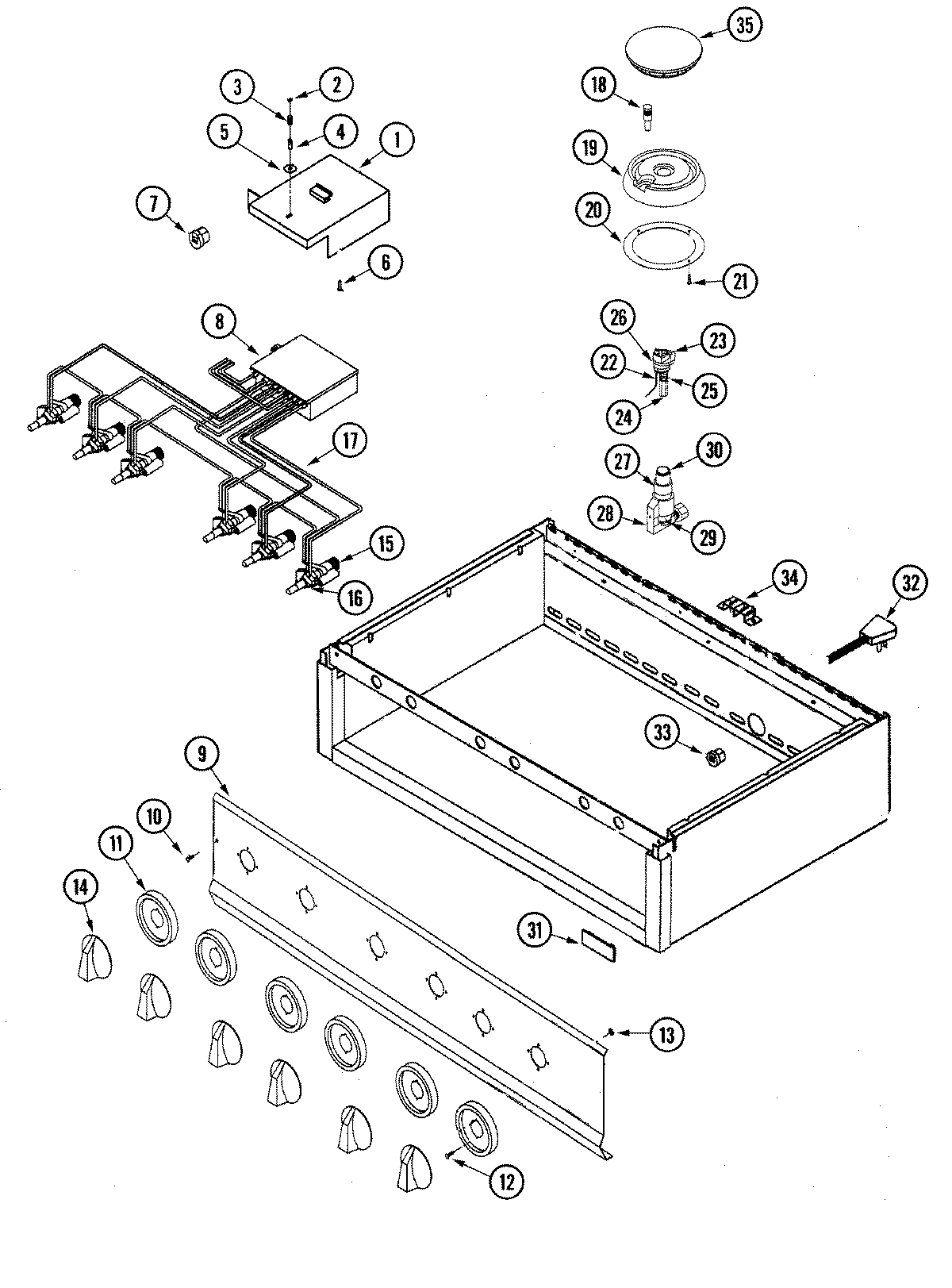

RJCT3690A 02 – CONTROL PANEL/GAS CONTROL

Products

PositionProduct
NIMAY 16023218
NISIMMERMAX OB ASSY, LP
NIMAY 70003000
NISIMMERMAX OB ASSY. NAT.
NIMAY 70002999
1BRACKET, IGNITION MODULE (LWR)
2MAY 70001991
3MAY 70001992
4MAY 70001993
5MAY 70001994
6MAY 70001995
8MODULE, IGNITION
9MAY 70001998
10MAY 70001999
11BEZEL, KNOB (CHROME)
12SCREW, BEZEL
13MAY 70001831
14MAY 70002468
15VALVE (W/.42 LP ORIFICE) 3/8“
15VALVE (W/.70 NAT ORIFICE) 3/8“
16MAY 70001983
17MAY 70002023
18BASE, SIMMER
19BASE, BURNER
20GASKET, SEALED BURNER BASE
22IGNITER/WIRE/TERMINAL(380 MM)
22IGNITER/WIRE/TERMINAL(620MM)
23MOUNT, SIMMER BURNER
23SCREW, M5 X 8MM-BURNER MOUNT
24VENTURY, SIMMER
25ORIFICE, SIMMER (NAT) .0125“
25ORIFICE, SIMMER (LP) .0086“
27VENTURI, SEALED BURNER
28BURNER, ELBOW
28SCREW, BURNER ELBOW
29ORIFICE, BURNER (No.56-LP)
29ORIFICE, BURNER (No.50-NAT)
30RING, RETAINING
31MAY 70002345
32CORD, POWER
33MAY 70001996
34MAY 70002007
34MAY 70002021
35CAP, BURNER
