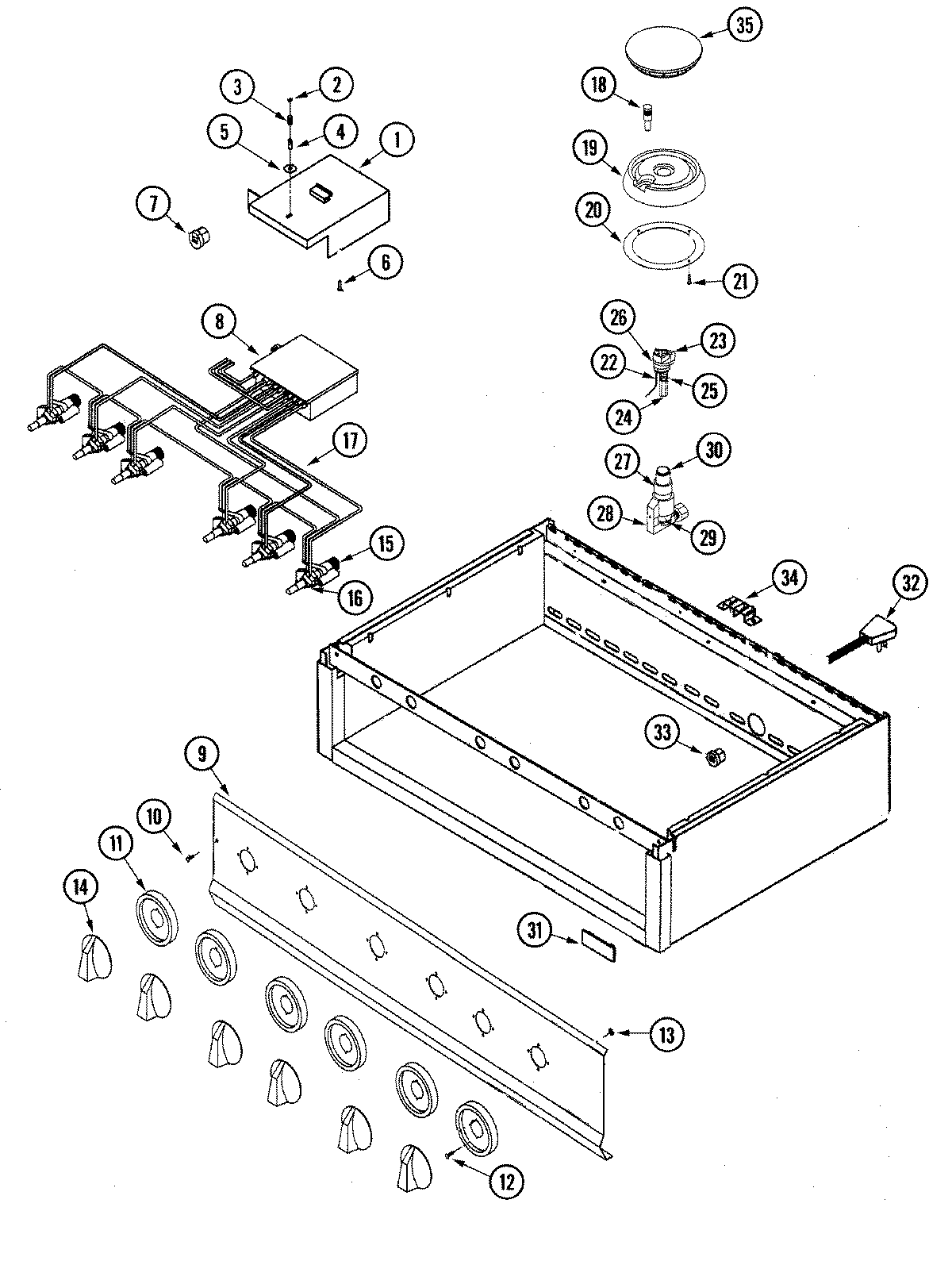

RJCT3691A 02 – CONTROL PANEL/GAS CONTROLadmin2025-04-26T08:53:27+00:00RJCT3691A 02 – CONTROL PANEL/GAS CONTROL
Products
| Position | Product |
|---|
| NI | MAY 70002999 |
| NI | SIMMERMAX OB ASSY, LP |
| NI | MAY 70003000 |
| NI | MAY 16023218 |
| NI | SIMMERMAX OB ASSY. NAT. |
| 1 | BRACKET, IGNITION MODULE (LWR) |
| 2 | MAY 70001991 |
| 3 | MAY 70001992 |
| 4 | MAY 70001993 |
| 5 | MAY 70001994 |
| 6 | MAY 70001995 |
| 8 | MODULE, IGNITION |
| 9 | MAY 70001998 |
| 10 | MAY 70001999 |
| 11 | BEZEL, KNOB (CHROME) |
| 12 | SCREW, BEZEL |
| 13 | MAY 70001831 |
| 14 | MAY 70002468 |
| 15 | VALVE (W/.42 LP ORIFICE) 3/8`` |
| 15 | VALVE (W/.70 NAT ORIFICE) 3/8`` |
| 16 | MAY 70001983 |
| 17 | MAY 70003013 |
| 18 | BASE, SIMMER |
| 19 | BASE, BURNER |
| 20 | GASKET, SEALED BURNER BASE |
| 22 | MAY 70003006 |
| 22 | IGNITER/WIRE/TERMINAL(620MM) |
| 23 | MOUNT, SIMMER BURNER |
| 23 | SCREW, M5 X 8MM-BURNER MOUNT |
| 24 | VENTURY, SIMMER |
| 25 | ORIFICE, SIMMER (NAT) .0125`` |
| 25 | ORIFICE, SIMMER (LP) .0086`` |
| 27 | VENTURI, SEALED BURNER |
| 28 | BURNER, ELBOW |
| 28 | SCREW, BURNER ELBOW |
| 29 | ORIFICE, BURNER (No.50-NAT) |
| 29 | ORIFICE, BURNER (No.56-LP) |
| 30 | RING, RETAINING |
| 31 | MAY 70002345 |
| 32 | CORD, POWER |
| 33 | MAY 70001996 |
| 34 | MAY 70001230 |
| 34 | MAY 70002007 |
| 35 | CAP, BURNER |
