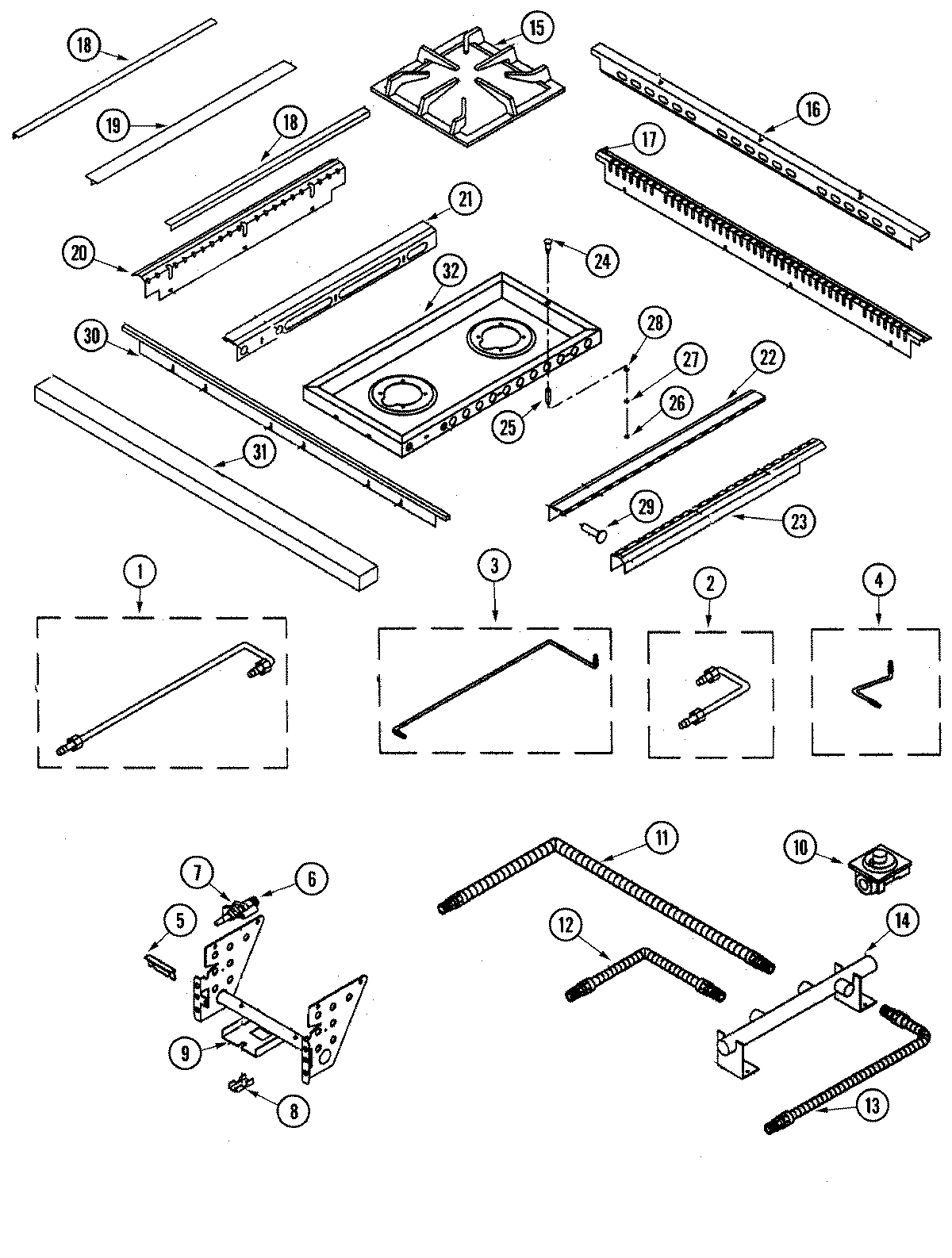

RJCT4891A 01 – BODY/MANIFOLDadmin2025-04-26T08:53:57+00:00RJCT4891A 01 – BODY/MANIFOLD
Products
| Position | Product |
|---|
| 1 | MAY 70001976 |
| 1 | MAY 70002027 |
| 2 | MAY 70002026 |
| 2 | MAY 70002025 |
| 2 | MAY 70001977 |
| 2 | MAY 70002028 |
| 3 | MAY 70002031 |
| 3 | MAY 70001978 |
| 4 | MAY 70001979 |
| 4 | MAY 70002032 |
| 4 | MAY 70002030 |
| 4 | MAY 70002029 |
| 5 | MAY 70001980 |
| 6 | VALVE (W/.70 NAT ORIFICE) 3/8`` |
| 6 | VALVE (W/.42 LP ORIFICE) 3/8`` |
| 7 | MAY 70001983 |
| 8 | BRACKET, VALVE (W/SCREWS) |
| 8 | SCREW, BRACKET/VALVE |
| 9 | MANIFOLD ASSEMBLY (MIDDLE) |
| 10 | MAY 70001038 |
| 12 | MAY 70003023 |
| 13 | MAY 70001988 |
| 14 | MAY 70003022 |
| 15 | MAY 70001761 |
| 15 | GRATE, SEALED BURNER |
| 16 | SCREW, REAR STRIP |
| 16 | MAY 70003019 |
| 17 | MAY 70003020 |
| 18 | MAY 70003018 |
| 19 | STRIP, CENTER - RJDF |
| 20 | MAY 70002990 |
| 21 | MAY 70002367 |
| 22 | MAY 70003016 |
| 23 | MAY 70003017 |
| 24 | FASTENER, BRASS |
| 25 | INSERT, THREAD |
| 26 | NUT (FASTENER/INSERT) |
| 27 | WASHER, LOCK |
| 28 | WASHER, PLAIN |
| 29 | SCREW |
| 30 | MAY 70002007 |
| 30 | MAY 70003021 |
| 31 | MAY 70003015 |
| 32 | SUPPORT, GRATE |
