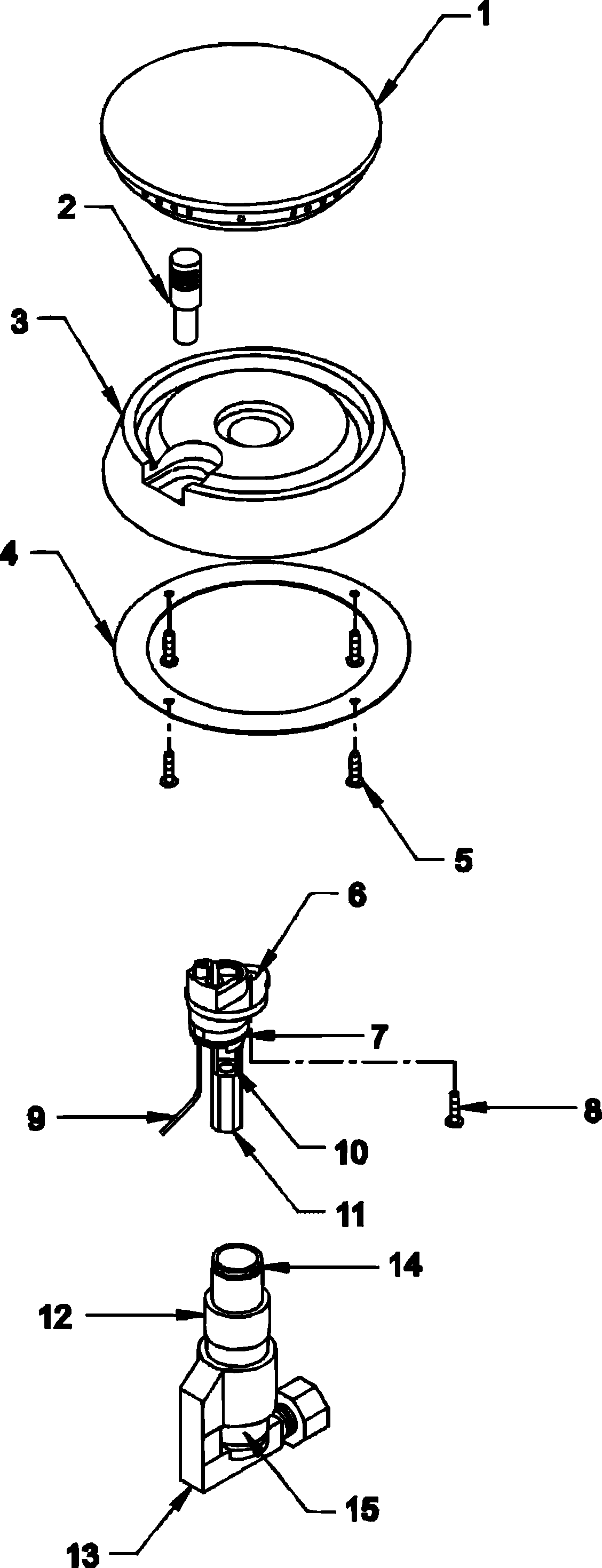

RJDF3680A 06 – SEALED BURNER DETAILadmin2025-04-26T08:53:13+00:00RJDF3680A 06 – SEALED BURNER DETAIL
Products
| Position | Product |
|---|
| NI | SIMMERMAX OB ASSY. NAT. |
| NI | SIMMERMAX OB ASSY, LP |
| 1 | CAP, BURNER |
| 2 | BASE, SIMMER |
| 3 | BASE, BURNER |
| 4 | GASKET, SEALED BURNER BASE |
| 6 | MOUNT, SIMMER BURNER |
| 8 | SCREW, M5 X 8MM-BURNER MOUNT |
| 9 | IGNITER/WIRE/TERMINAL(380 MM) |
| 10 | VALVE (W/.42 LP ORIFICE) 3/8`` |
| 10 | ORIFICE, SIMMER (LP) .0086`` |
| 10 | ORIFICE, SIMMER (NAT) .0125`` |
| 10 | VALVE (W/.70 NAT ORIFICE) 3/8`` |
| 11 | VENTURY, SIMMER |
| 12 | VENTURI, SEALED BURNER |
| 13 | FLARE, ELBOW-D/JBQ,RJDF |
| 14 | RING, RETAINING |
| 15 | ORIFICE, BURNER (No.50-NAT) |
| 15 | ORIFICE, BURNER (No.56-LP) |
