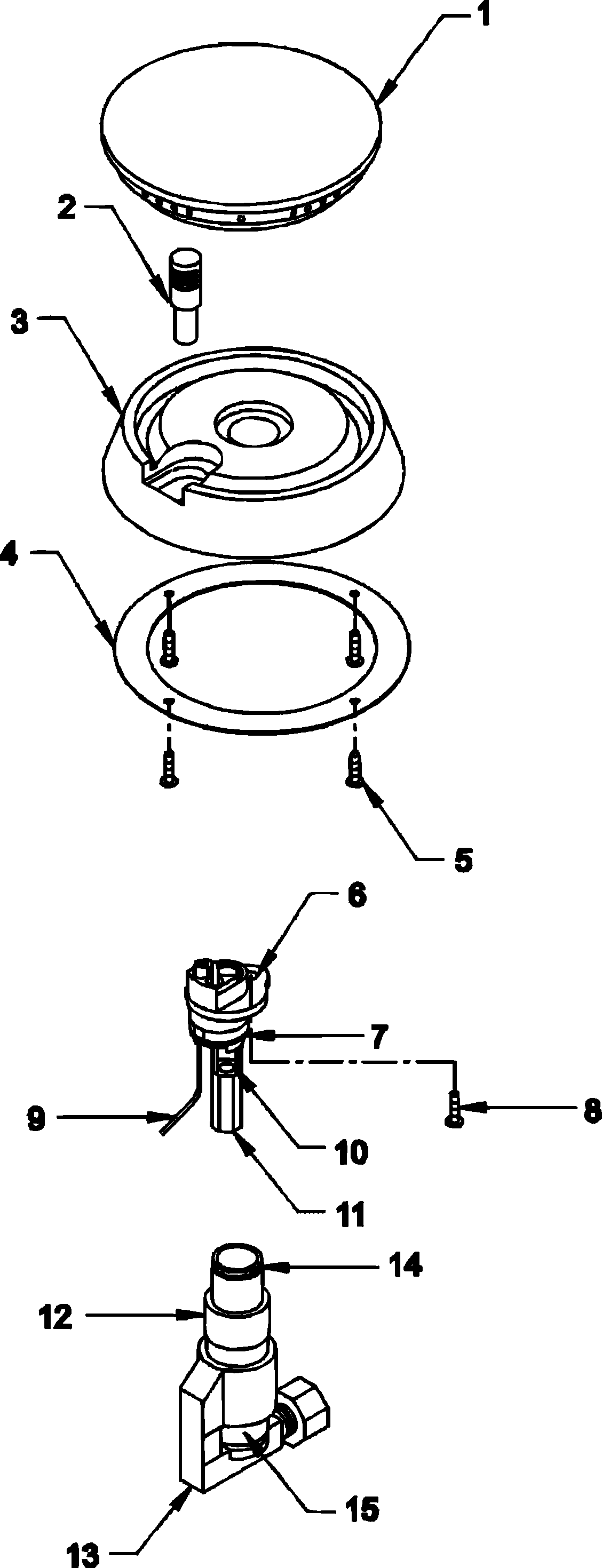

RJDF3681A 07 – SEALED BURNER DETAIL

RJDF3681A 07 – SEALED BURNER DETAIL

Written by

in

RJDF3681A 07 – SEALED BURNER DETAIL

Products

PositionProduct
NISIMMERMAX OB ASSY. NAT.
NISIMMERMAX OB ASSY, LP
1CAP, BURNER
2BASE, SIMMER
3BASE, BURNER
4GASKET, SEALED BURNER BASE
6MOUNT, SIMMER BURNER
8SCREW, M5 X 8MM-BURNER MOUNT
9IGNITER/WIRE/TERMINAL(380 MM)
10VALVE (W/.42 LP ORIFICE) 3/8“
10ORIFICE, SIMMER (LP) .0086“
10ORIFICE, SIMMER (NAT) .0125“
10VALVE (W/.70 NAT ORIFICE) 3/8“
11VENTURY, SIMMER
12VENTURI, SEALED BURNER
13FLARE, ELBOW-D/JBQ,RJDF
14RING, RETAINING
15ORIFICE, BURNER (No.50-NAT)
15ORIFICE, BURNER (No.56-LP)
