RJDF3683A 04 – OPEN BURNER – Aparts

RJDF3683A 04 – OPEN BURNER

Products

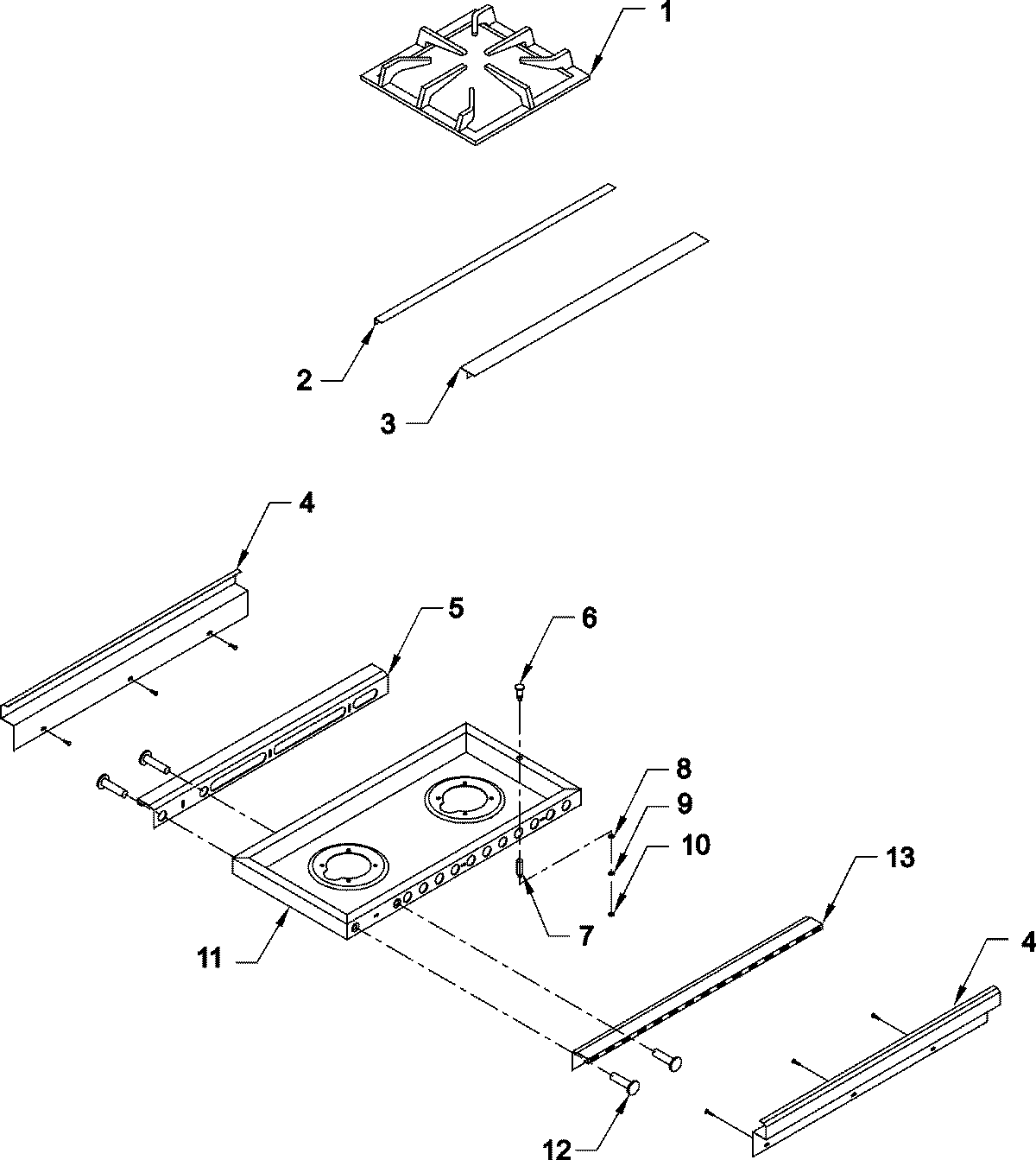

Position	Product
NI	MAY 16022834
NI	MAY 16022772
NI	MAY 16022771
1	GRATE, SEALED BURNER
1	MAY 70002391
2	MAY 70002364
3	STRIP, CENTER - RJDF
4	MAY 70002366
5	MAY 70002367
6	FASTENER, BRASS
7	INSERT, THREAD
8	WASHER, PLAIN
9	WASHER, LOCK
10	NUT (FASTENER/INSERT)
11	SUPPORT, GRATE
12	SCREW
13	MAY 70002368
