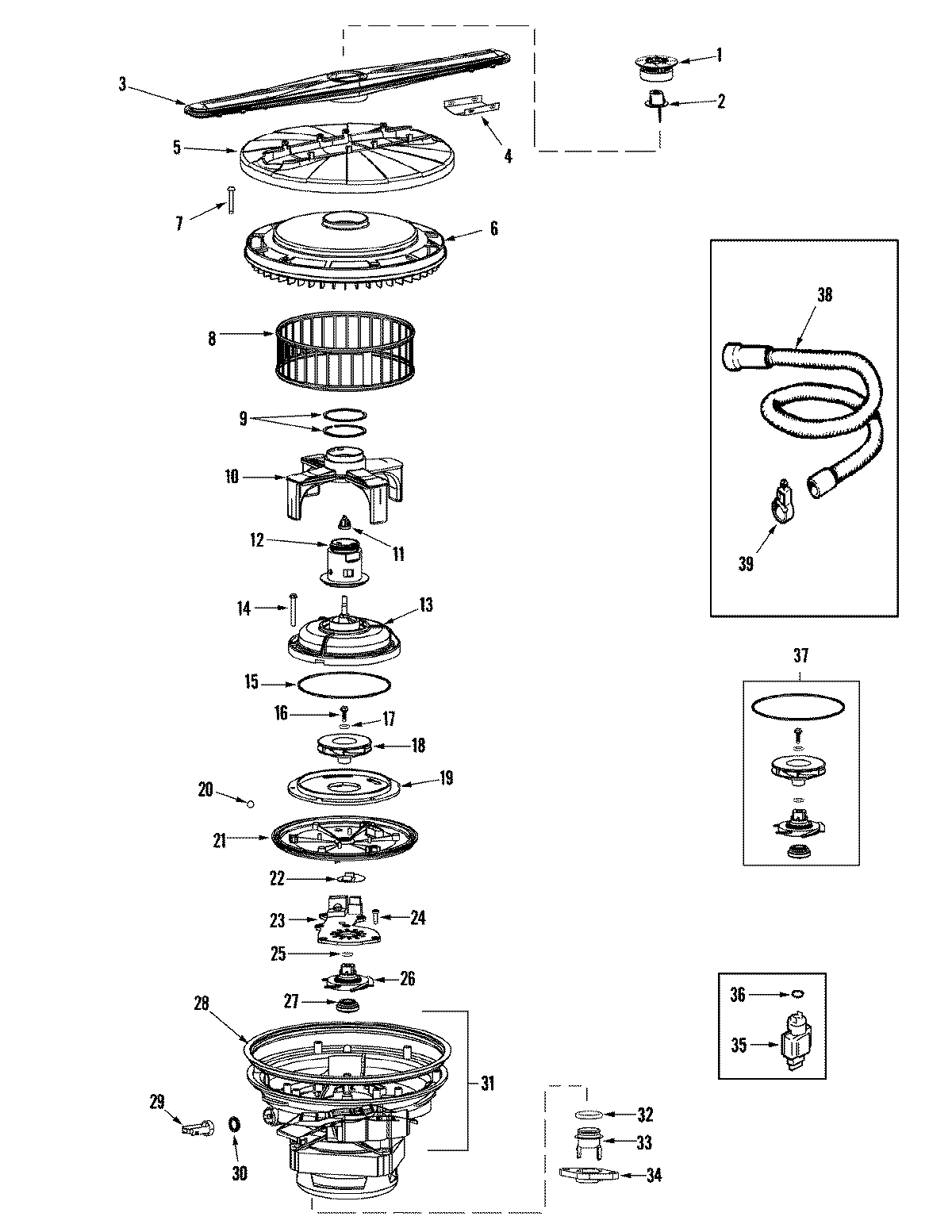

RJDW2470A 05 – PUMP & MOTOR

Products

Position	Product
1	WP99001428 Whirlpool Dishwasher Nut
2	WP99001787 Whirlpool Dishwasher Tower
3	WP99001788 Whirlpool Dishwasher Spray Arm
4	MAY 99002288
5	WP99001796 Whirlpool Dishwasher Guard
6	MAY 99001789
7	MAY 99001790
8	WP99001791 Whirlpool Dishwasher Pump Filter
9	MAY 912313
10	MAY 99002043
11	MAY 99001426
13	MAY 99002461
14	MAY 912383
15	MAY 99001326
16	MAY 910654
17	WP910934 Whirlpool Dishwasher O-Ring
18	WP99002069 Whirlpool Dishwasher Impeller
19	MAY 99002279
20	MAY 99002281
21	MAY 99002280
22	MAY 912310
23	MAY 99001795
24	61002031 Whirlpool Air Conditioner Handle Screw
25	MAY 912510
26	MAY 903304
27	MAY 902882
28	MAY 912529
29	MAY 99001800
30	MAY 99001799
31	MAY 99002481
32	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
33	MAY 99001981
34	MAY 99001980
34	SCREW, No.8X1/2 HEX WASHER HEAD
35	MAY 99002103
36	MAY Y913156
36	MAY 99001425
36	MAY 912365
37	MAY 99002175
38	WP616099 Whirlpool Clamp
