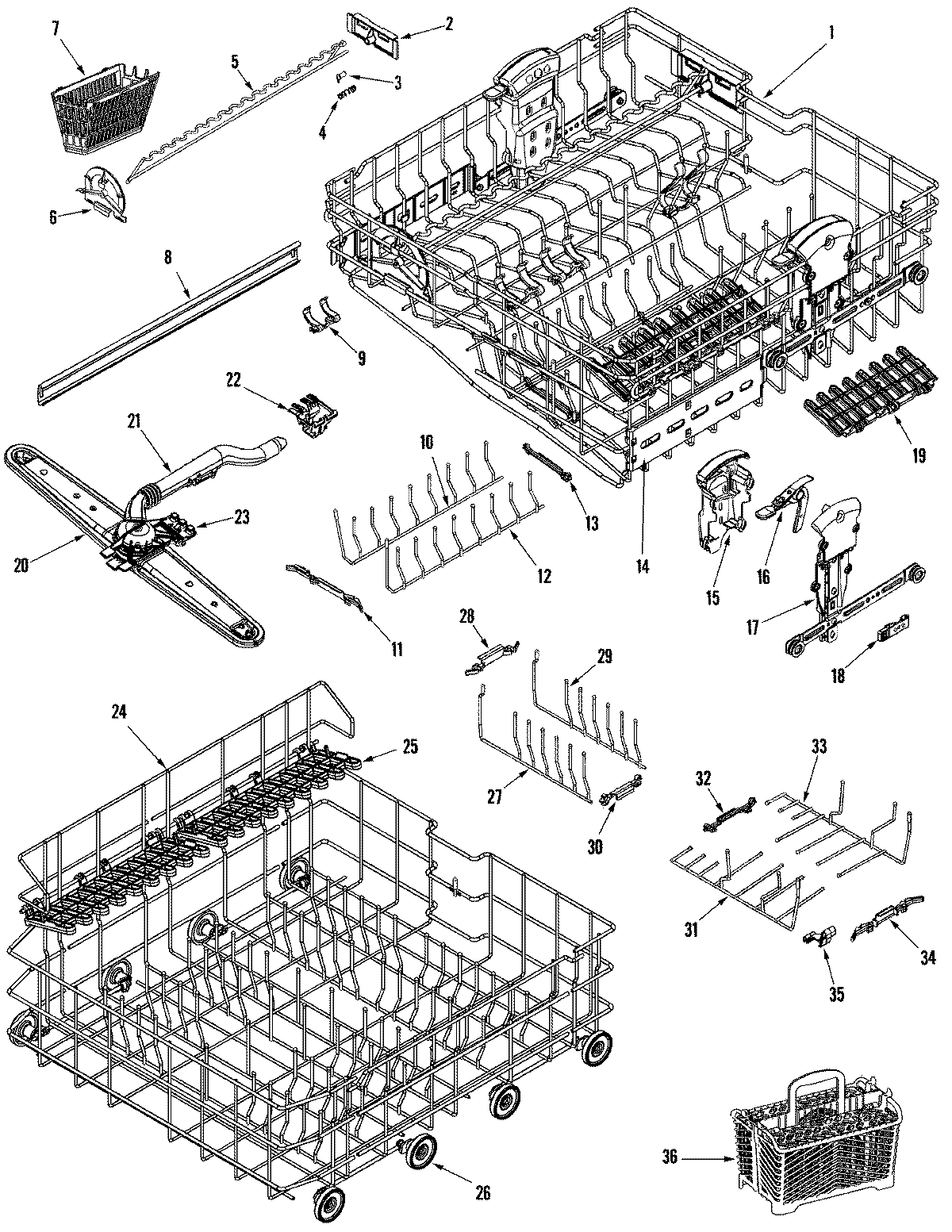

RJDW2481B 03 – RAIL & RACK ASSEMBLY

Products

PositionProduct
NIMAY 99003278
1MAY 99003295
2VARILOCK (REAR)
3MAY 99003245
4MAY 99002715
5MAY 99003246
6VARILOCK (FRT)
7MAY 99003248
8WP99003068 Whirlpool Dishwasher Bearing
8WP99003282 Whirlpool Dishwasher Rail Stop
8MAY 99003066
8MAY 99003069
9MAY 99003249
11MAY 99003250
11MAY 99003251
12SHELF, CUP (UPR)
13TINE, FOLD AWAY (RT)
14MAY 99003254
15TINE, FOLD AWAY (LT)
16MAY 99003256
17WP99003070 Whirlpool Dishwasher Wash Arm
18MAY 99003142
1999003071 Whirlpool Dishwasher Upper Wash Manifold Clip
20MAY 99003072
21MAY 99003257
21MAY 99003273
22SHELF, CUP (LWR)
23MAY 99003259
24PIVOT, CONVERTIBLE TINE
25MAY 99003261
26MAY 99003262
27MAY 99003263
28WHEEL ASSEMBLY (LWR)
29BASKET, SILVERWARE (SPLIT/FIT)
29BASKET, SILVERWARE (HALF)
29MAY 99003270
30MAY 99003264
31MAY 99003265
32MAY 99003266
33MAY 99003267
34MAY 99003277
35MAY 99003276
36MAY 99003010
36MAY 99003274
36MAY 99003275
