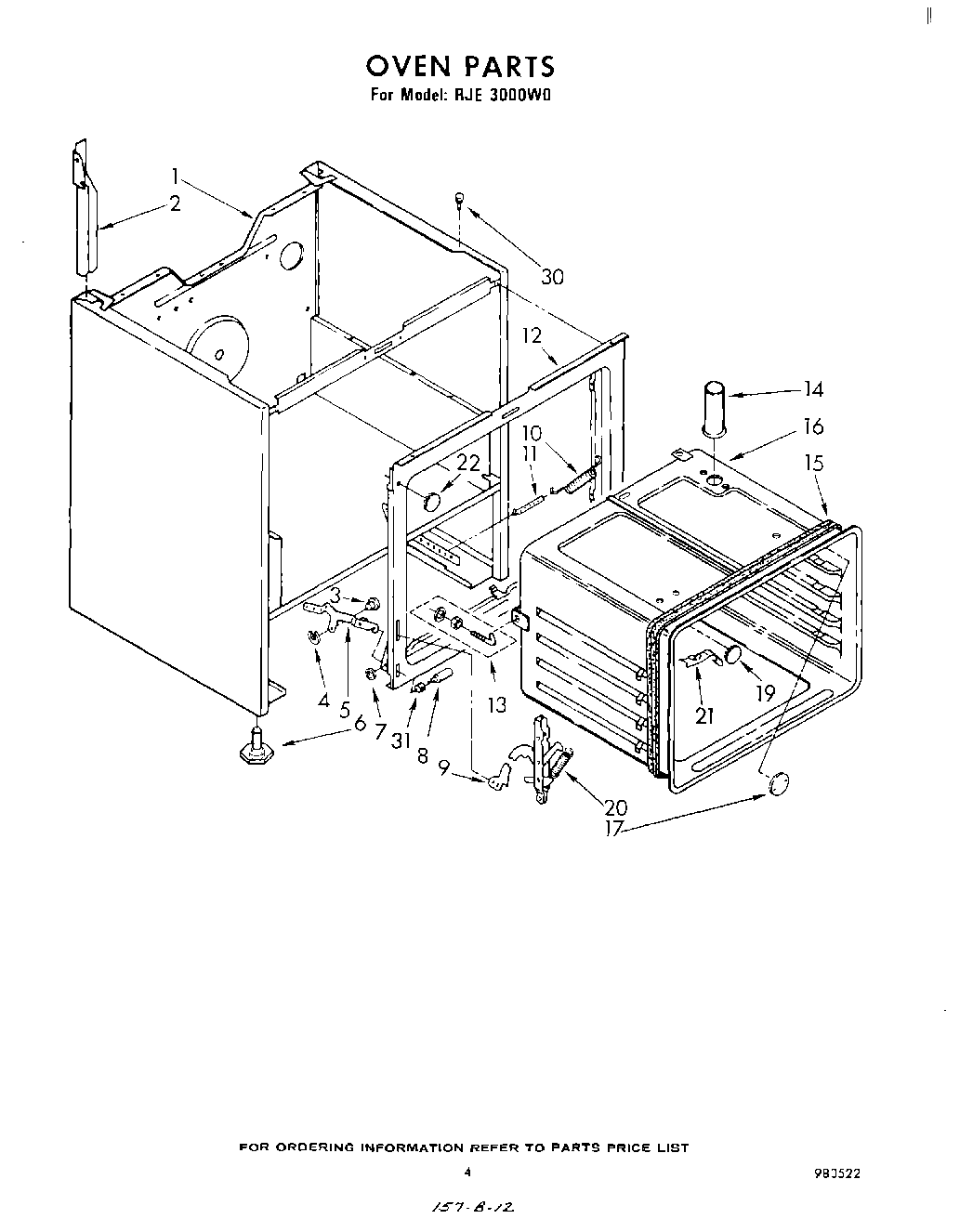

RJE3000W0 04 – OVEN

Products

Position	Product
1	main chassis (almond)
1	Lining-Compartment Door (16331A,2A
1	Griddle Cover (Almond 1633L1A, L2A)
1	WPL 327872
1	Main Chassis (Coffee)
2	Support, Channel (R.H.)
2	Support, Channel (L.H.)
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	SCREW
5	Hinge (L.H.)
5	Hinge (R.H.)
6	WP233550 Whirlpool Leveling Feet
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel Arm (2)
10	Spring, Oven Door (2)
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
13	Oven Mounting Kit
14	Vent, Oven
14	WP308685 Whirlpool Microwave Screw
15	Heat Seal
16	Extension-Handle
17	Screw (3)
17	Cover, Plate
19	Plug Button
20	Spring, Door Stop
21	98005642 Whirlpool Clip
22	Plug Button
30	238614 Whirlpool Bumper Hinge
31	Snubber, Door (2)
