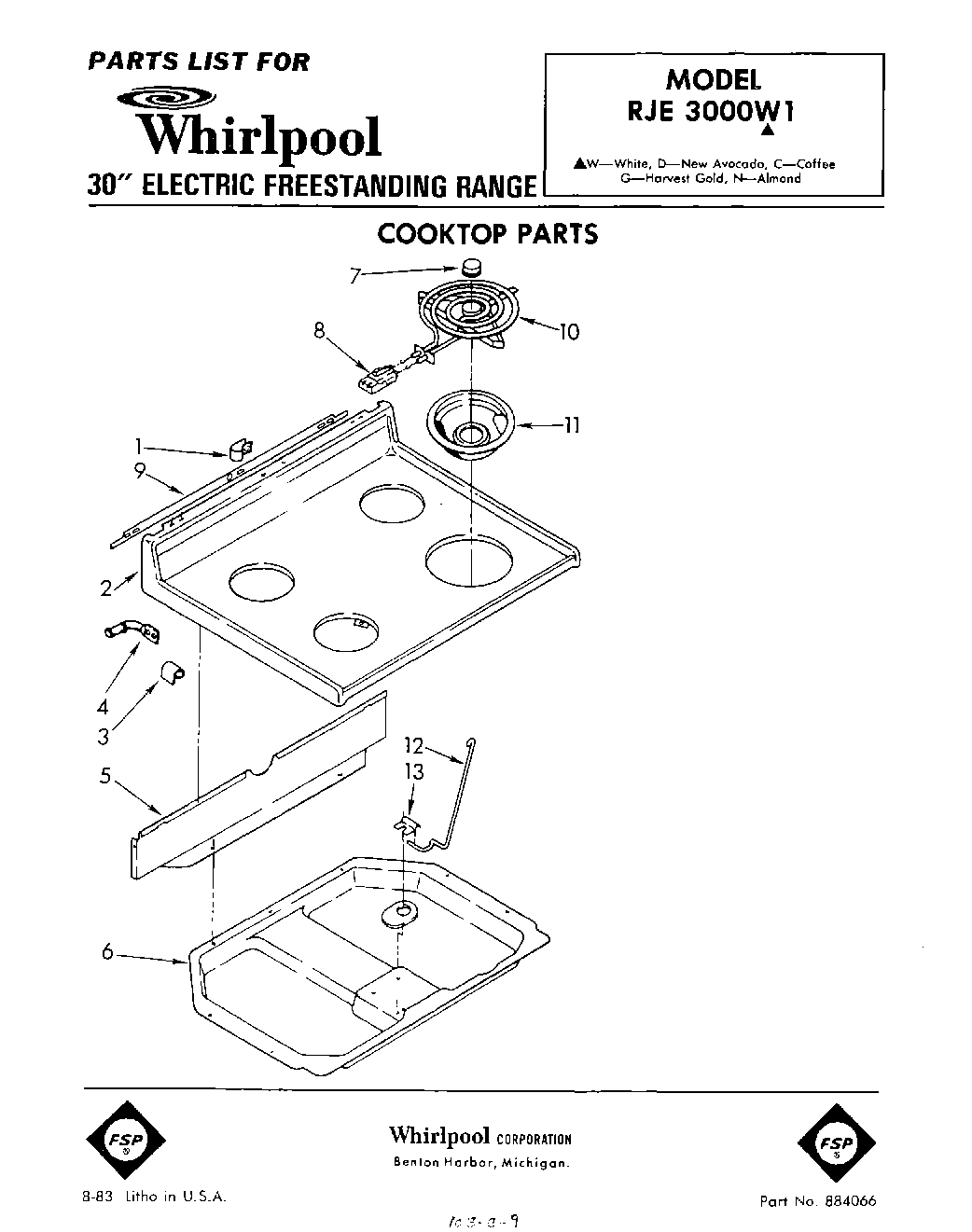

RJE3000W1 01 – COOK TOP

Products

Position	Product
1	WP308605 Whirlpool Refrigerator Clamp
2	Cooktop (New Avocado)
2	Cooktop (Coffee)
2	Cooktop (Harvest Gold)
2	Cooktop (White)
2	Cooktop (Almond)
3	Bracket, Cooktop (2)
4	WP308544 Whirlpool Screw
4	Pin, Cooktop (2)
5	SCREW
5	Shield, Wiring
6	Burner Box
7	Medallion (4)
8	WP313808 Whirlpool Screw
8	BURNER RECEPTACLE KIT
9	Barrier
10	WP660532 Whirlpool Oven Surface Element
10	Unit, Surface (8“ (208V) (2))
10	Unit, Surface (8“ (208V) (2) (Includes Illus. 20))
10	WP660533 Whirlpool Oven 8" Surface Element
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	Rod, Cooktop
13	Retainer, Cooktop
13	WP3390631 Whirlpool Screw
