RJE3000W1 05 – SECTION

Products

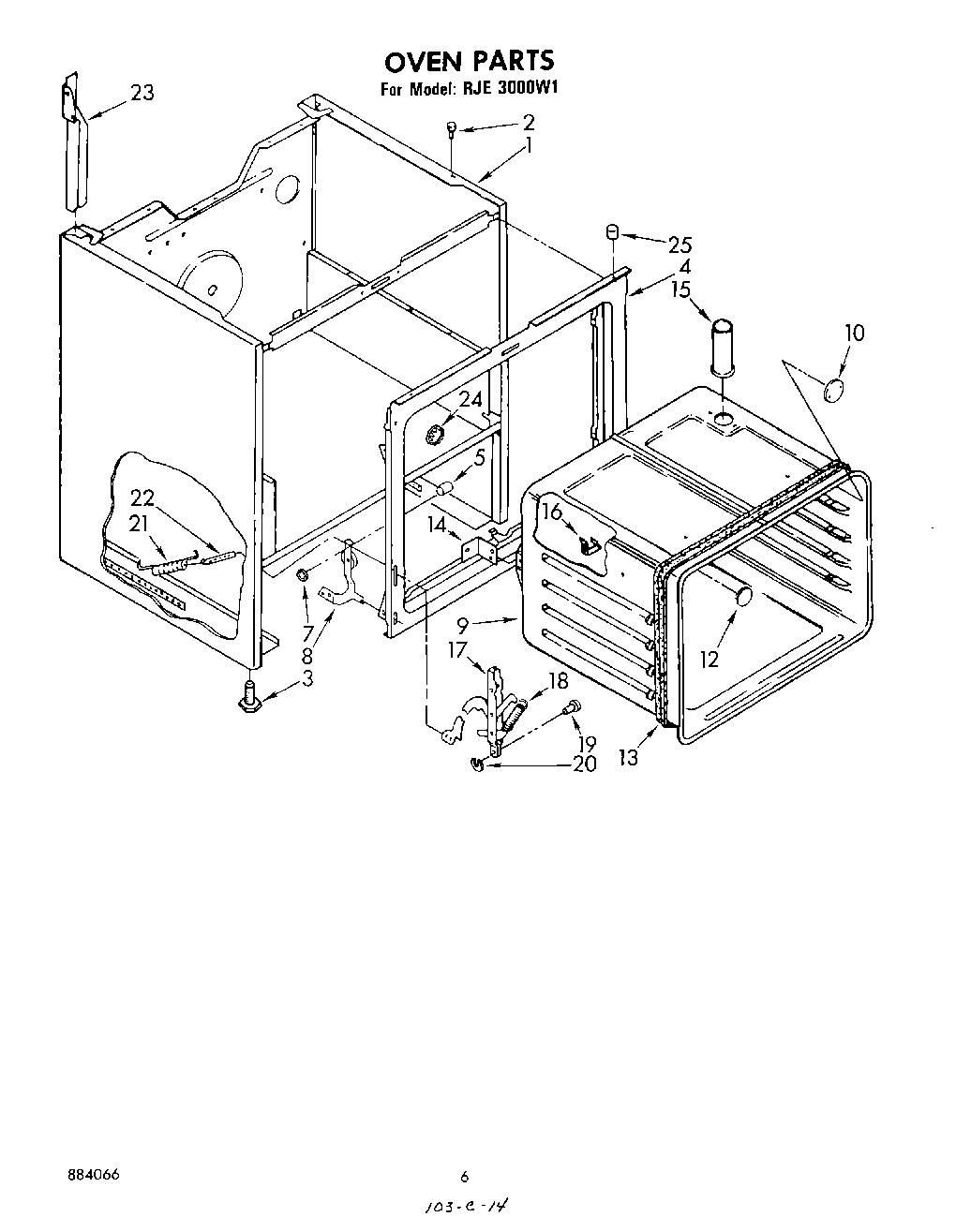

PositionProduct
1Main Chassis (White)
1Main Chassis (New Avocado)
1Main Chassis (Coffee)
1Main Chassis (Harvest Gold)
1Main Chassis (Almond)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (R.H.)
8Hinge (L.H.)
9WPL 329000
10Screw (3)
10Cover, Plate
12Plug Button
13Heat Seal
14Bracket, Oven (Mounting)
15Vent, Oven
15WP308685 Whirlpool Microwave Screw
1698005642 Whirlpool Clip
17Channel, Arm (2)
18Spring, Door Stop
19WP307986 Whirlpool Hinge Pin
20Retainer Ring (2)
21Spring, Oven Door (2)
22WP308125 Whirlpool Microwave Range/Cooktop Anchor
23Support, Channel (L.H.)
23Support, Channel (R.H.)
23SCREW
24Plug Button
25locator, cooktop
25Screw, 8-32 x 5/16 (2)
