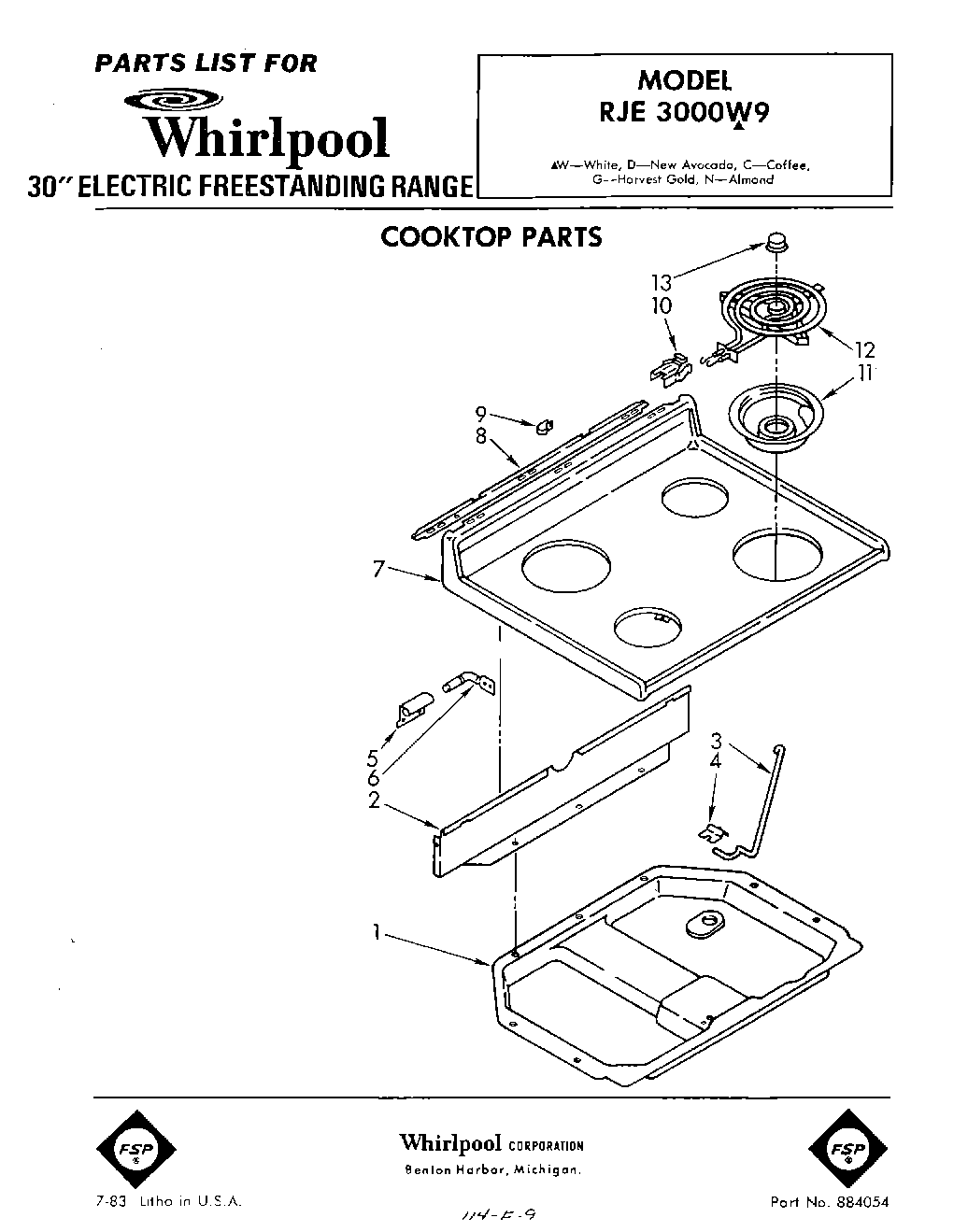

RJE3000W9 01 – COOKTOP

Products

PositionProduct
1Burner Box
2SCREW
2Shield, Wiring
3Rod, Cooktop
4WP3390631 Whirlpool Screw
4Retainer, Cooktop
5Bracket, Cooktop (2)
6Pin, Cooktop (2)
7Cooktop (White)
7Cooktop (New Avocado)
7Cooktop (Coffee)
7Cooktop (Almond)
7Cooktop (Harvest Gold)
8Barrier
9WP308544 Whirlpool Screw
9WP308605 Whirlpool Refrigerator Clamp
10BURNER RECEPTACLE KIT
10WP313808 Whirlpool Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12Unit, Surface (6“ (3))
12Unit, Surface (8“ (1) (Includes Illus. 13))
13Medallion (4)
