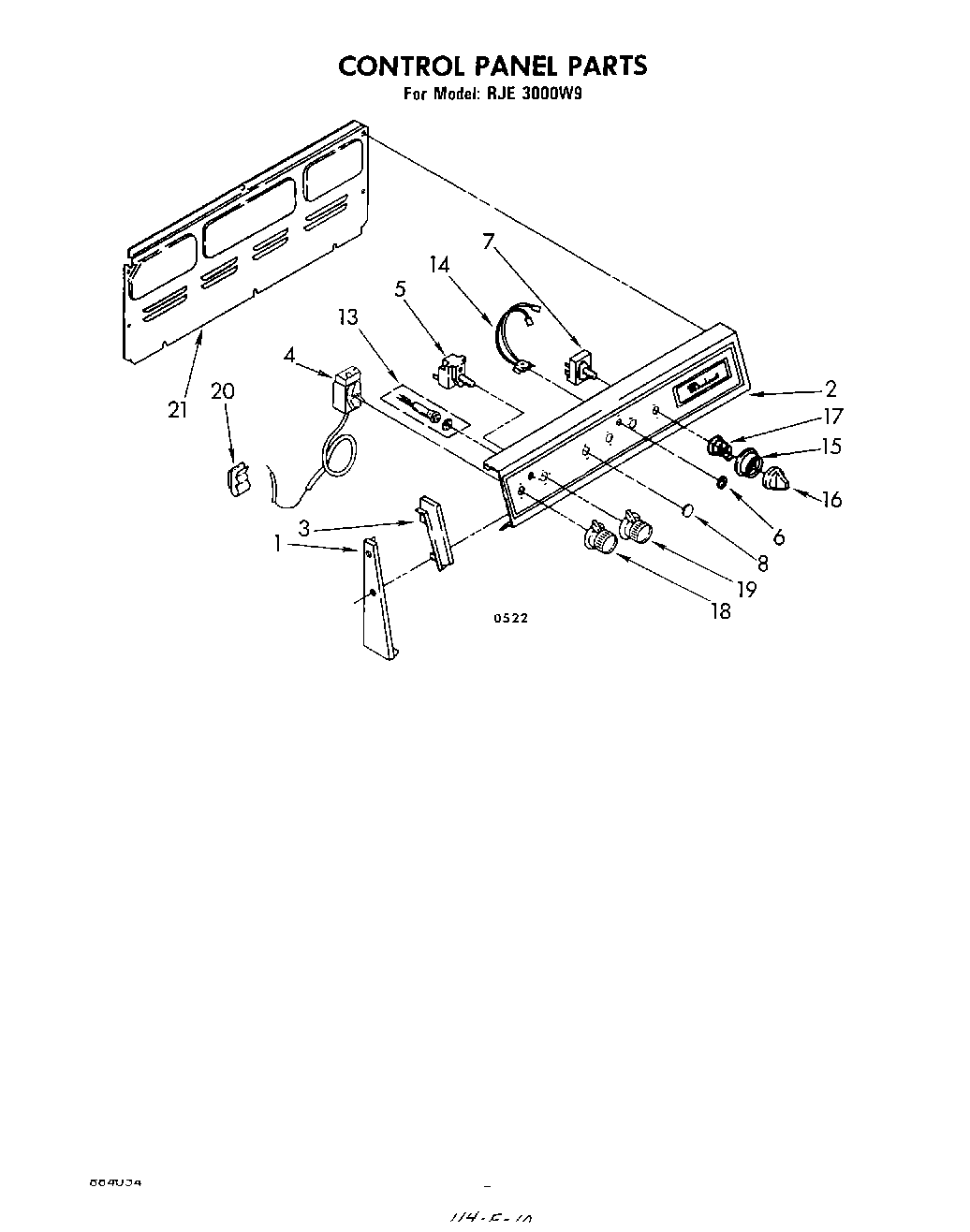

RJE3000W9 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (L.H.)
1	WP3390631 Whirlpool Screw
1	End Trim (R.H.)
2	Screw
2	Control Panel (New Avocado)
2	Control Panel (Harvest Gold)
2	Control Panel (Almond)
2	Control Panel (White)
2	Control Panel (Coffee)
3	End Cap, L.H.
3	WP488627 Whirlpool Refrigerator Screw
3	W11693756 Whirlpool Screw Assembly
3	End Cap, R.H.
3	Clip (4)
4	Thermostat, Oven (Alternate)
4	screw, 6-32 x 1/4 (2)
4	Thermostat, Oven (Alt.)
5	Switch, Selector
6	Lens, Red (2)
7	WP3149401 Whirlpool Infinite Burner Switch
7	WP486579 Whirlpool Air Conditioner Screw
7	W10900107 Whirlpool Oven Surface Element Switch
8	Plug Button
13	Light, Indicator (Oven)
14	Light, Indicator (Surface Unit) (Includes Illus. 22)
15	W11194997 Whirlpool Knob Bezel
16	WP307458 Whirlpool Knob
17	Spring, Bezel (4)
18	Knob, Thermostat
19	Knob, Selector
19	WP688805 Whirlpool Spring Clip
20	WPL 309211
21	Cover, Rear
21	SCREW
