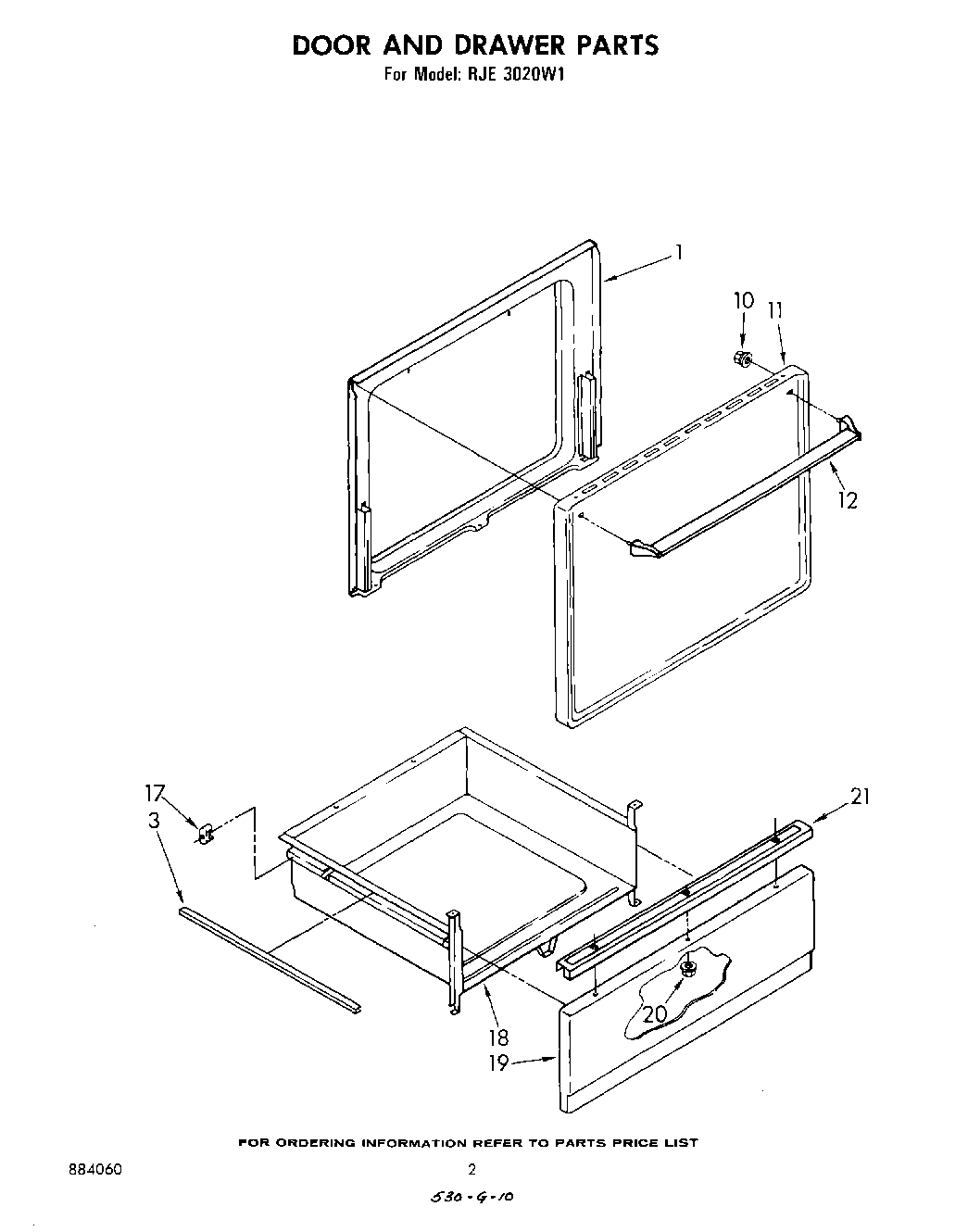

RJE3020W1 02 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Protector, Drawer (2)
10	WP308499 Whirlpool Nut
11	Panel, Door (Screw, 8A x 1/2 (2))
11	Panel, Oven Door (White)
11	Panel, Oven Door (Almond)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Toast)
11	Panel, Door (Platinum)
11	Panel, Door (New Avocado)
11	Panel, Door (Coffee)
12	Handle, Door
17	Glide, Rear (2)
17	Screw, 10A x 1/2 (2) (Black)
18	Drawer, Utility
19	Panel, Lower (Coffee)
19	Panel, Drawer (New Avocado)
19	Panel Drawer (White)
19	Panel, Drawer (Almond)
19	WP488787 Whirlpool Refrigerator Screw
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Toast)
19	Panel, Drawer (Platinum)
20	WP486255 Whirlpool Air Conditioner Nut
21	Handle, Drawer
21	WP912618 Whirlpool Dishwasher Screw
