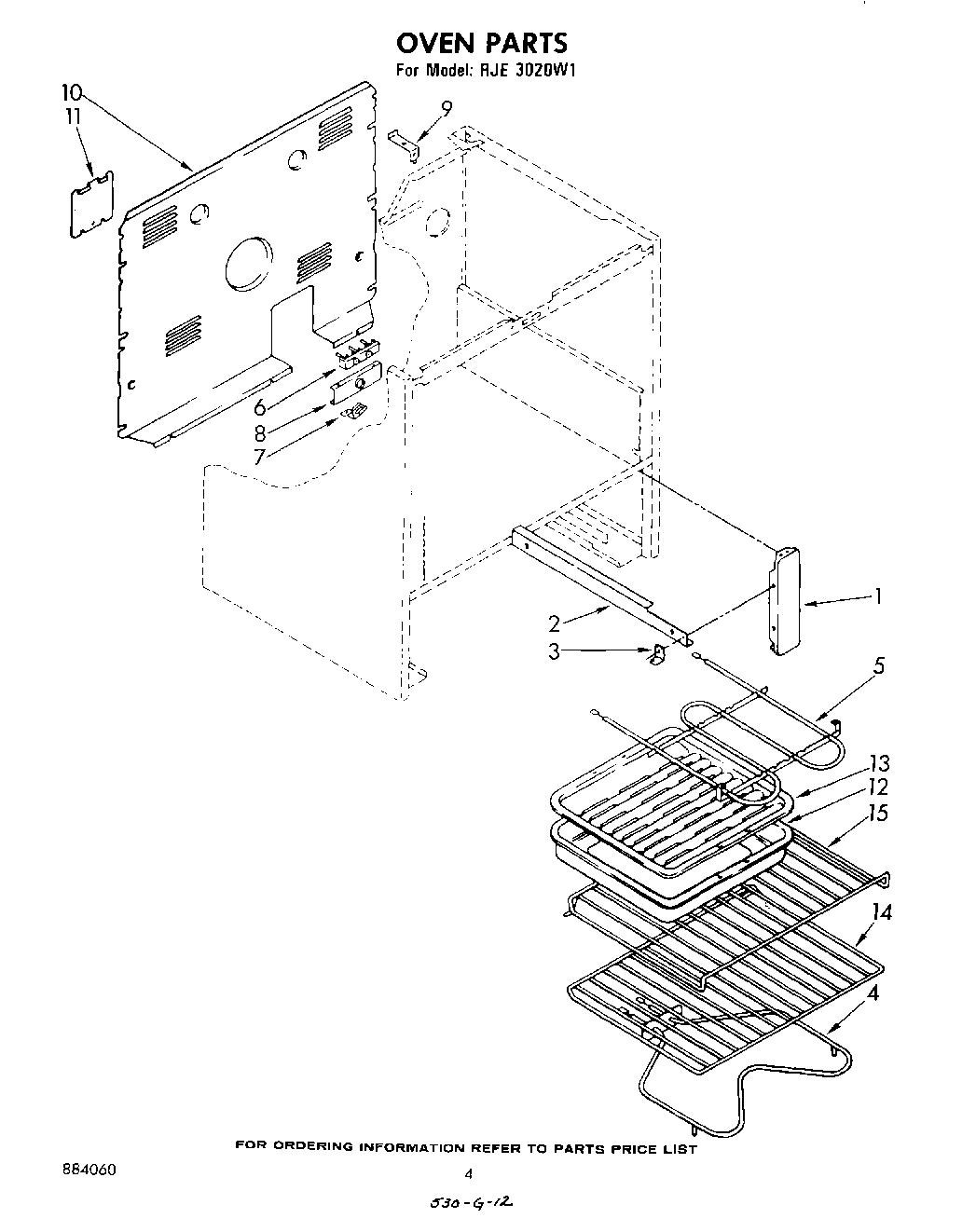

RJE3020W1 04 – OVEN , LITERATURE AND OPTIONAL

RJE3020W1 04 – OVEN , LITERATURE AND OPTIONAL

Written by

in

RJE3020W1 04 – OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	511873 Whirlpool Refrigerator Paint
	Almond (Uncut)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
8	Bracket, Service
9	WPL 309102
10	SCREW
10	Cover, Rear
11	Cover, Service
11	WP308544 Whirlpool Screw
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Wire (14 Ga. 150 c Orange)
15	Wire (14 Ga. 200 c Brown)
15	1
15	Wire (12 Ga. 150 c Black)
15	Wire (14 Ga. 150 c Yellow)
15	18 Ga. 80~c Rating (Red)
15	350930 Whirlpool White Spray Paint
15	Leveler (Thinner) (2oz.)
15	Grease
15	WPL 799351
15	WPL 308500
15	WPL 312718
15	WPL 310593
15	WPL 884060
15	WPL 308172
15	WPW10208653 Whirlpool Insulation
15	WPL 799832
15	350942 Whirlpool Spray Paint
15	WPL 72112
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest
15	72113 Whirlpool Touch-Up Paint
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	WP72107 Whirlpool Touchup
15	72017 Whirlpool Appliance Touch-Up Paint White
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	Wire, 25` Roll (Black 14 Ga.)
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Blue)
15	242831 Whirlpool Oven Wire
15	Touch-Up Oven (1 Oz.)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	285006 Whirlpool Spray
15	Wire, 25“ Roll (White 14 GA.)
15	350956 Whirlpool Spray Assembly
