RJE3020W1 05 – SECTION

RJE3020W1 05 – SECTION

Written by

in

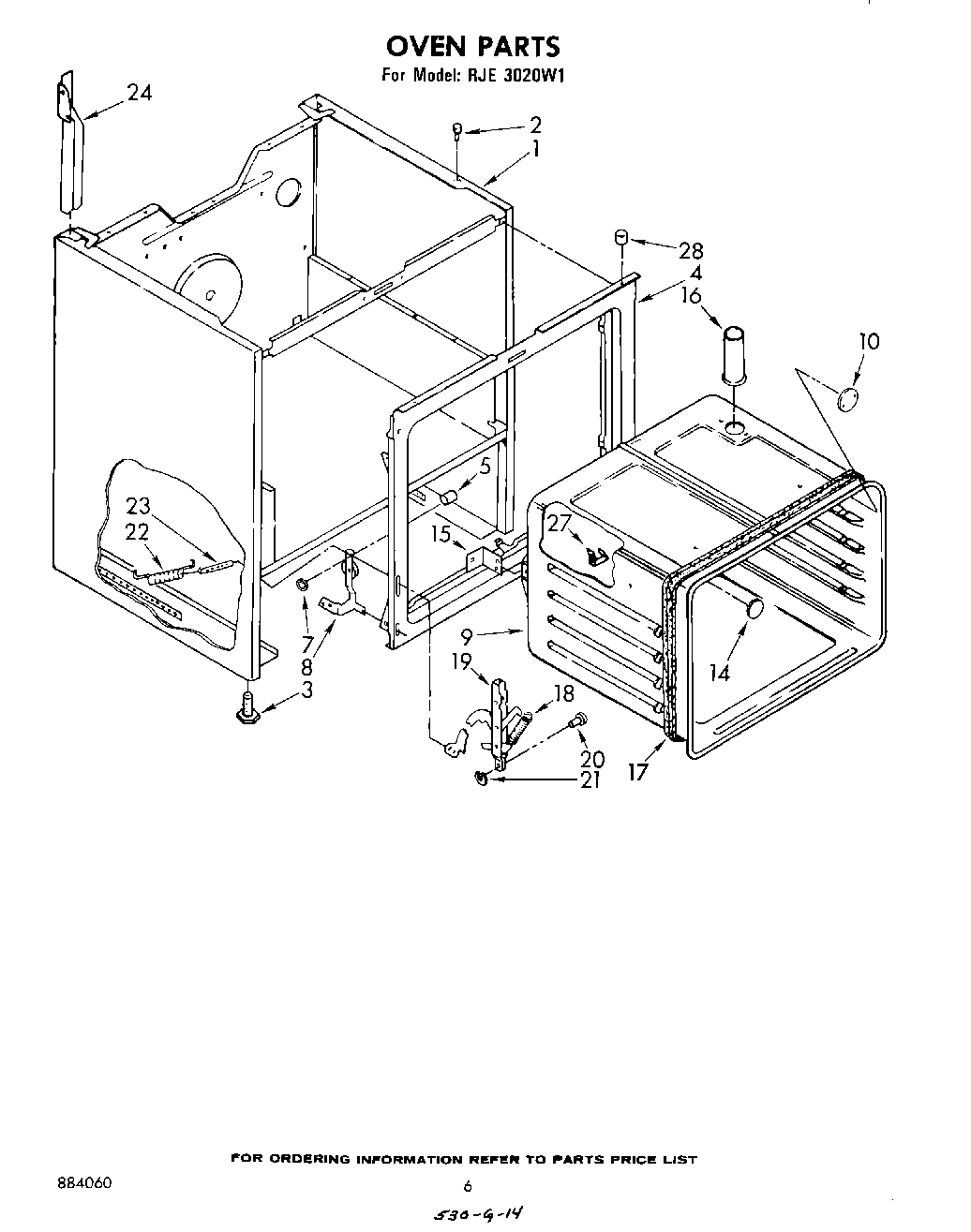

RJE3020W1 05 – SECTION

Products

PositionProduct
1Main Chassis (Platinum)
1Main Chassis (New Avocado)
1Main Chassis (Coffee)
1Main Chassis (Harvest Gold)
1Main Chassis (Almond)
1Main Chassis (White)
1Main Chassis (Toast)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (R.H.)
8Hinge (L.H.)
9Screw (3)
9WPL 329000
10Cover, Plate
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16Screw, 10A x 1/2 (2) (Black)
17Heat Seal
18Spring, Door Stop
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Support, Channel (R.H.)
24Support, Channel (L.H.)
24SCREW
2798005642 Whirlpool Clip
28locator, cooktop
28Screw, 8-32 x 5/16 (2)
