RJE3021W1 04 – OVEN, LITERATURE AND OPTIONAL

RJE3021W1 04 – OVEN, LITERATURE AND OPTIONAL

Written by

in

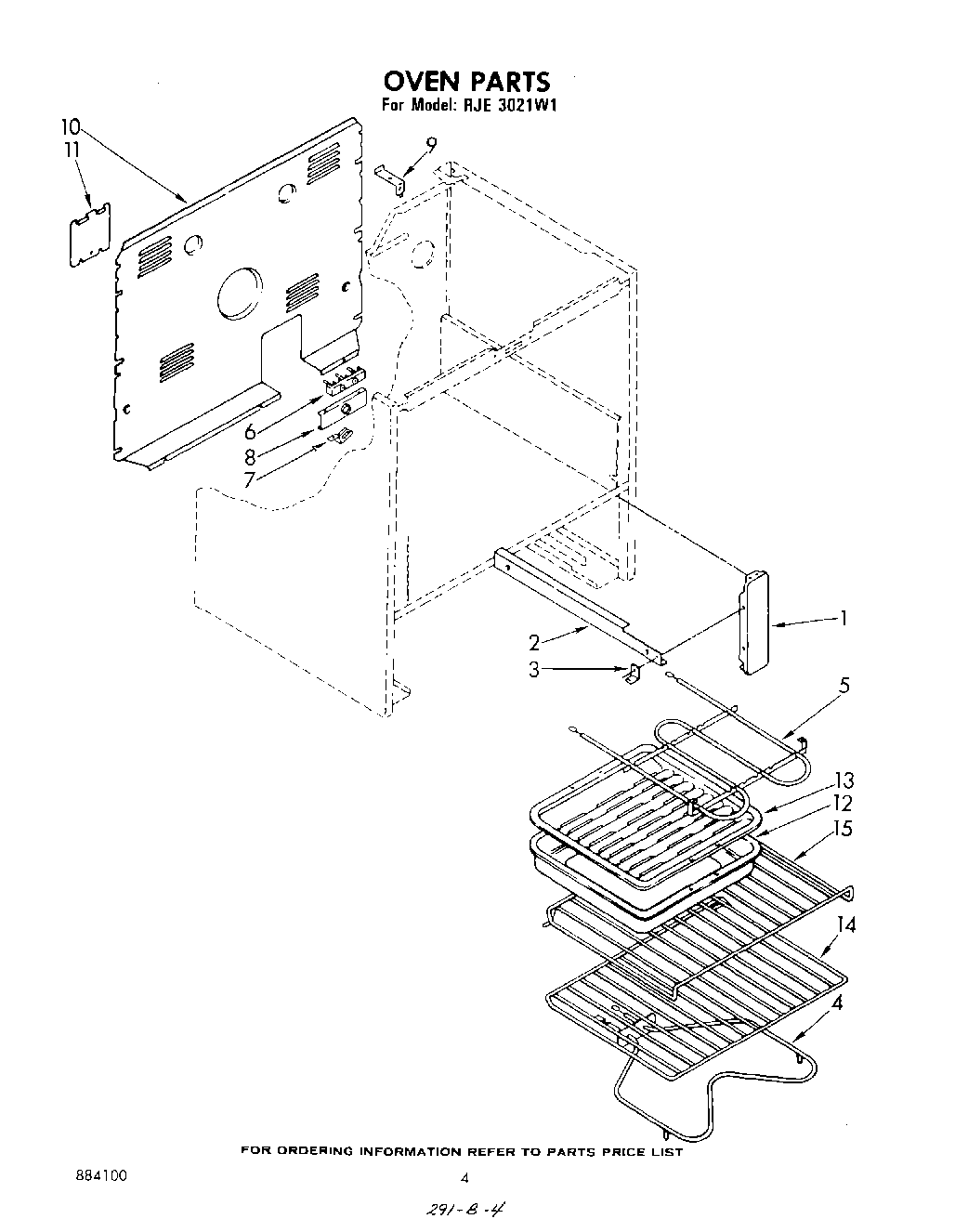

RJE3021W1 04 – OVEN, LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, Coffee (1 Qt. Uncut)
	511873 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	Screw, 10-32 x 5/8 (4)
5	Unit, Broil (208V)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
8	Bracket, Service
9	WPL 309102
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Leveler (Thinner) (2oz.)
15	Wire (14 Ga. 150 c Yellow)
15	Wire (12 Ga. 150 c Black)
15	18 Ga. 80~c Rating (Red)
15	Wire (14 Ga. 200 c Brown)
15	WPL 884100
15	WPL 310593
15	WPL 312718
15	WPL 799351
15	Grease
15	WPL 308500
15	1
15	Wire (14 Ga. 150 c Orange)
15	WPL 308172
15	WPW10208653 Whirlpool Insulation
15	WPL 799832
15	350942 Whirlpool Spray Paint
15	WPL 72112
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest
15	350930 Whirlpool White Spray Paint
15	72113 Whirlpool Touch-Up Paint
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	WP72107 Whirlpool Touchup
15	72017 Whirlpool Appliance Touch-Up Paint White
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	Wire, 25` Roll (Black 14 Ga.)
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Blue)
15	242831 Whirlpool Oven Wire
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	Touch-Up Oven (1 Oz.)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	285006 Whirlpool Spray
15	Wire, 25“ Roll (White 14 GA.)
15	Wire, 25` Roll (Red 14 Ga.)
15	350956 Whirlpool Spray Assembly
