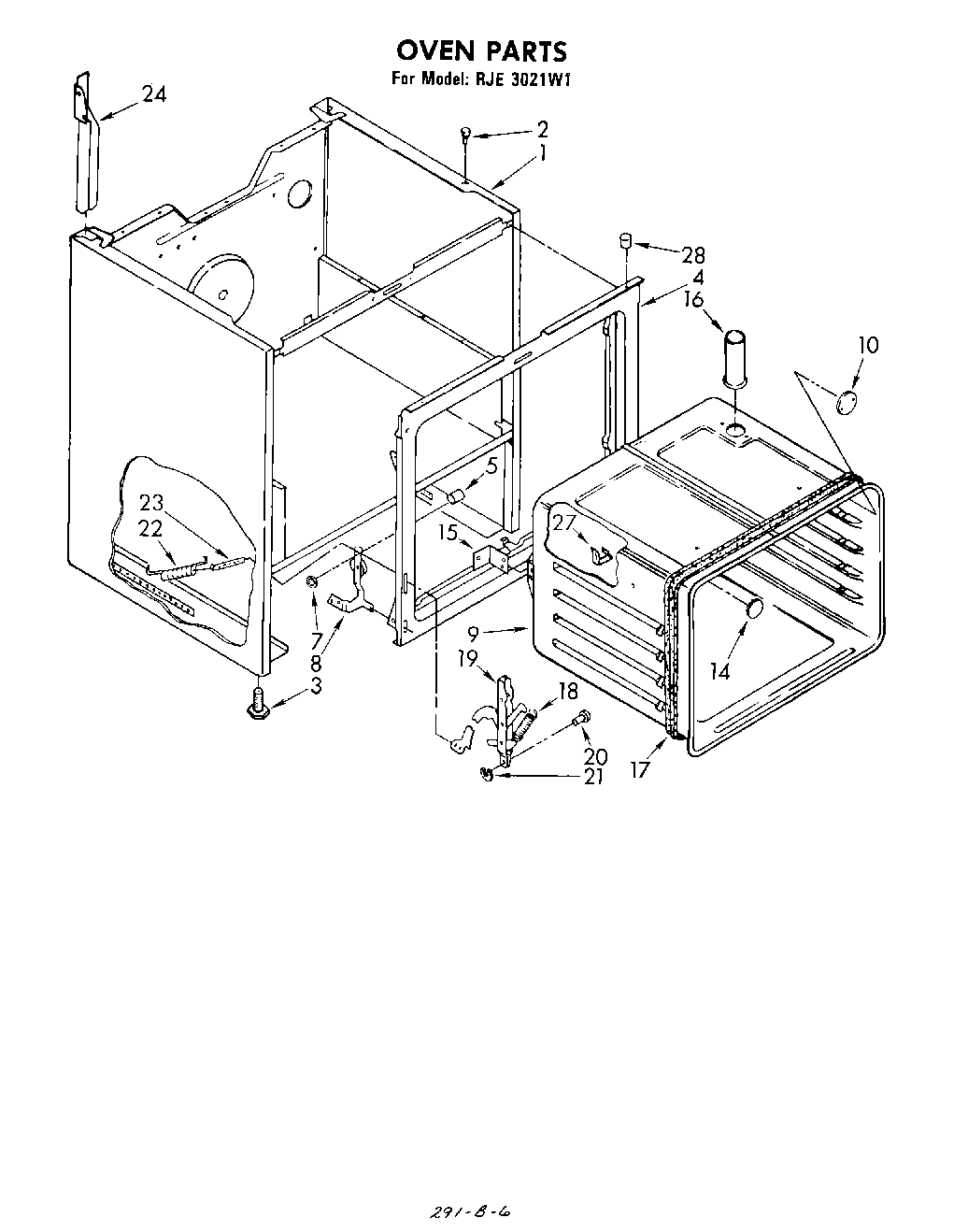

RJE3021W1 05 – SECTION

Products

Position	Product
1	Main Chassis (Coffee)
1	Main Chassis (White)
1	Main Chassis (Almond)
1	Main Chassis (Harvest Gold)
1	Main Chassis (Toast)
1	Main Chassis (Platinum)
1	Main Chassis (New Avocado)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	WPL 329000
9	Screw (3)
10	Cover, Plate
14	Plug Button
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Heat Seal
18	Spring, Door Stop
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Support, Channel (R.H.)
24	Support, Channel (L.H.)
24	SCREW
27	98005642 Whirlpool Clip
28	Screw, 8-32 x 5/16 (2)
28	locator, cooktop
