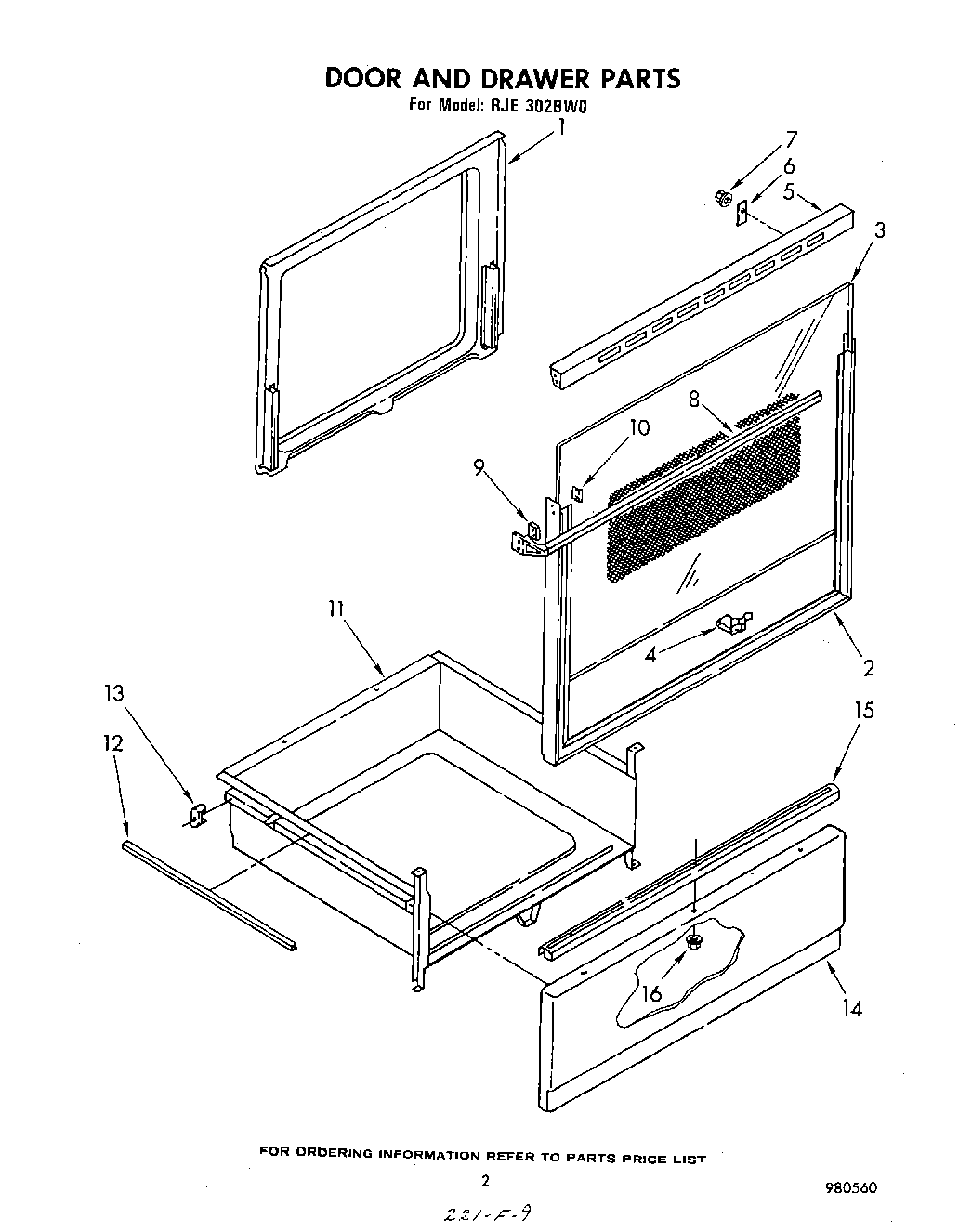

RJE302BW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

RJE302BW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

RJE302BW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	511873 Whirlpool Refrigerator Paint
	Almond (Uncut)
1	panel, top (screw, 10a x 3/8 (3))
1	Clip (2)
1	Liner, Door
2	frame, door 30“
3	Glass, Outer
4	clip, glass (10)
5	Screw, 10A x 1/2 (2) (Black)
5	Top, Door Frame
6	hold down, glass (2)
7	WP90296 Whirlpool Clip
8	Handle, Door
9	Spacer, Door Handle (2)
10	screw (3)
11	Drawer, Utility
12	Protector, Drawer (2)
13	Glide, Rear (2)
13	WP308685 Whirlpool Microwave Screw
14	Panel, Lower (Coffee)
14	Panel Drawer (Black)
14	Panel Drawer (White)
14	Panel, Drawer (Almond)
14	Panel Drawer (Harvest Gold)
14	Panel, Drawer (Screw, 8-32 (3))
14	Panel, Drawer (New Avocado)
15	WP912618 Whirlpool Dishwasher Screw
15	Handle, Drawer
16	WP486255 Whirlpool Air Conditioner Nut
16	WPW10208653 Whirlpool Insulation
16	Wire (12 Ga. 150 c Black)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25“ Roll (White 14 GA.)
16	WPL 799832
16	350942 Whirlpool Spray Paint
16	350930 Whirlpool White Spray Paint
16	Golden Harvest
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	WP72107 Whirlpool Touchup
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	WPL 310594
16	285006 Whirlpool Spray
16	WPL 308500
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	1
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Blue)
16	Leveler (Thinner) (2oz.)
16	Grease
16	WPL 799351
16	242831 Whirlpool Oven Wire
16	Wire (14 Ga. 150 c Brown)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	WPL 308494
16	WPL 980560
