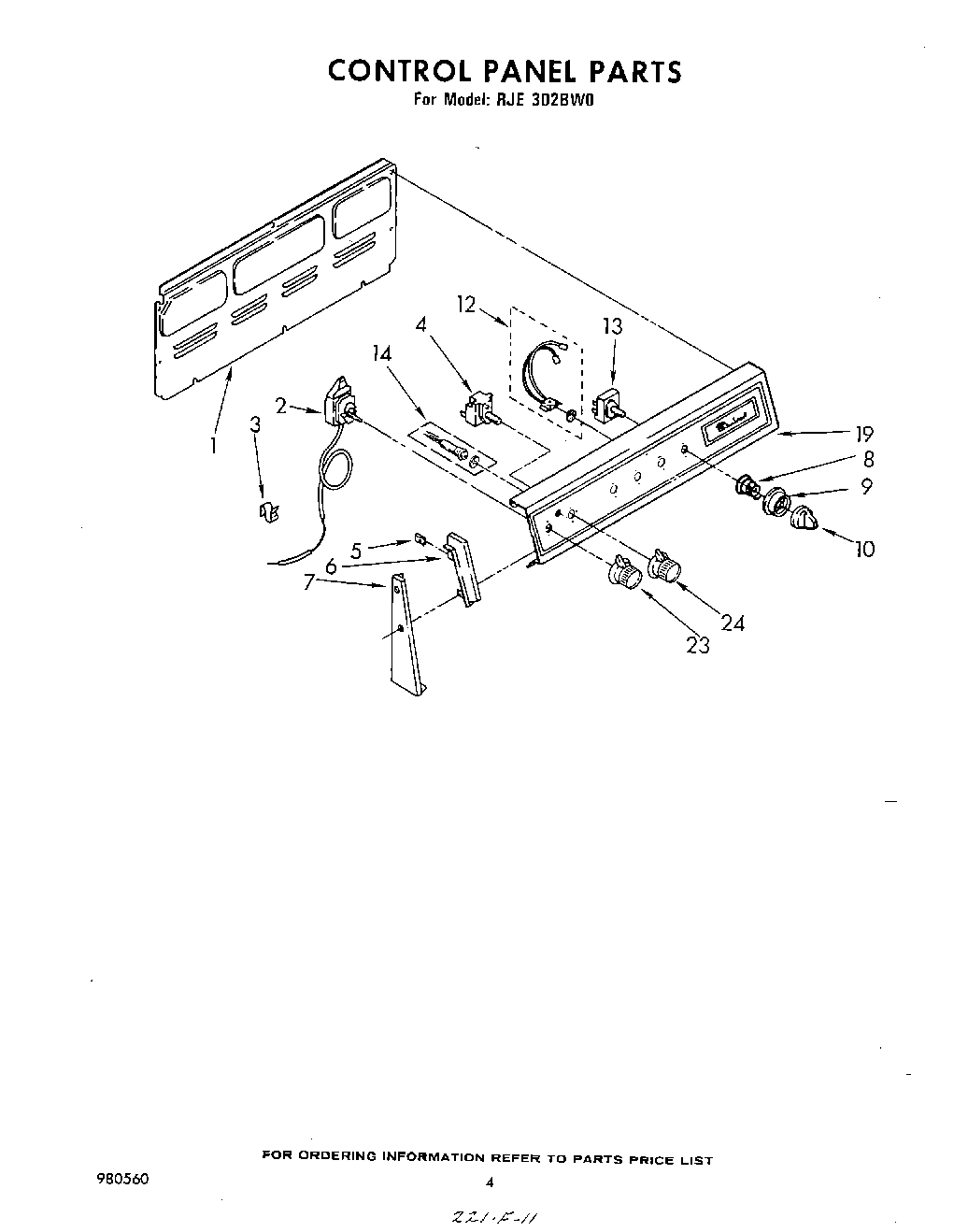

RJE302BW0 03 – CONTROL PANEL

RJE302BW0 03 – CONTROL PANEL

Written by

in

RJE302BW0 03 – CONTROL PANEL

Products

PositionProduct
1Cover, Rear
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alternate)
2screw, 6-32 x 1/4 (2)
3WPL 309211
4WP486579 Whirlpool Air Conditioner Screw
4Switch, Selector
5Clip (4)
6End Cap, L.H.
6End Cap, R.H.
7End Trim (L.H.)
7End Trim (R.H.)
7WP965173 Whirlpool Dishwasher Screw
7SCREW
8Spring, Bezel (4)
9W11194997 Whirlpool Knob Bezel
10WP307458 Whirlpool Knob
12Light, Indicator (Surface Unit) (Includes Illus. 22)
13WP3149401 Whirlpool Infinite Burner Switch
13Screw, 8-32 x 1/4 (8)
13W10900107 Whirlpool Oven Surface Element Switch
14Light, Indicator (Oven) (Alternate)
14Light, Indicator (Oven) (Alternate)
19Control Panel (Coffee)
19Control Panel (Almond)
19Control Panel (Golden Harvest)
19Control Panel (New Avocado)
19Control Panel (White)
19Screw
19W11693756 Whirlpool Screw Assembly
19WP488627 Whirlpool Refrigerator Screw
23Knob, Thermostat
24Knob, Selector
