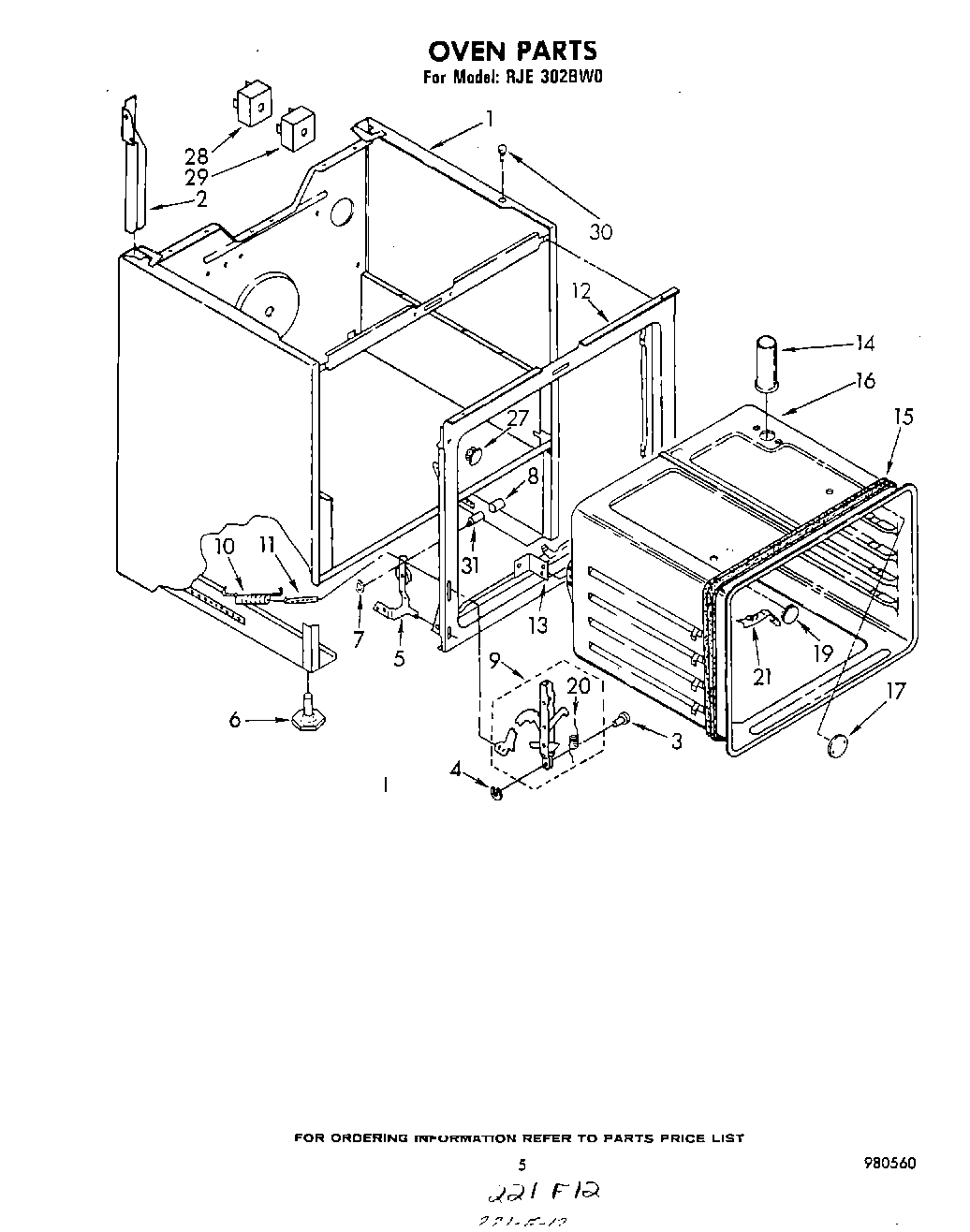

| 1 | Main Chassis (Coffee) |
| 1 | main chassis (almond) |
| 1 | Lining-Compartment Door (16331A,2A |
| 1 | Griddle Cover (Almond 1633L1A, L2A) |
| 1 | WPL 327872 |
| 2 | Support, Channel (R.H.) |
| 2 | Support, Channel (L.H.) |
| 3 | WP307986 Whirlpool Hinge Pin |
| 4 | Retainer Ring (2) |
| 5 | SCREW |
| 5 | Hinge (L.H.) |
| 5 | Hinge (R.H.) |
| 6 | WP233550 Whirlpool Leveling Feet |
| 7 | Pushnut (2) |
| 8 | Pin, Hinge Ear (2) |
| 9 | Channel Arm (2) |
| 10 | Spring, Oven Door (2) |
| 11 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 12 | Frame, Front |
| 13 | Bracket, Oven (Mounting) |
| 13 | W10841059 Whirlpool Screw |
| 14 | Vent, Oven |
| 14 | WP308685 Whirlpool Microwave Screw |
| 15 | Heat Seal |
| 16 | WPL 329000 |
| 17 | Screw (3) |
| 17 | Cover, Plate |
| 19 | Plug Button |
| 20 | Spring, Door Stop |
| 21 | 98005642 Whirlpool Clip |
| 27 | Plug Button |
| 28 | Switch, Broil |
| 29 | Switch, Bake |
| 30 | 238614 Whirlpool Bumper Hinge |
| 31 | Snubber, Door (2) |
