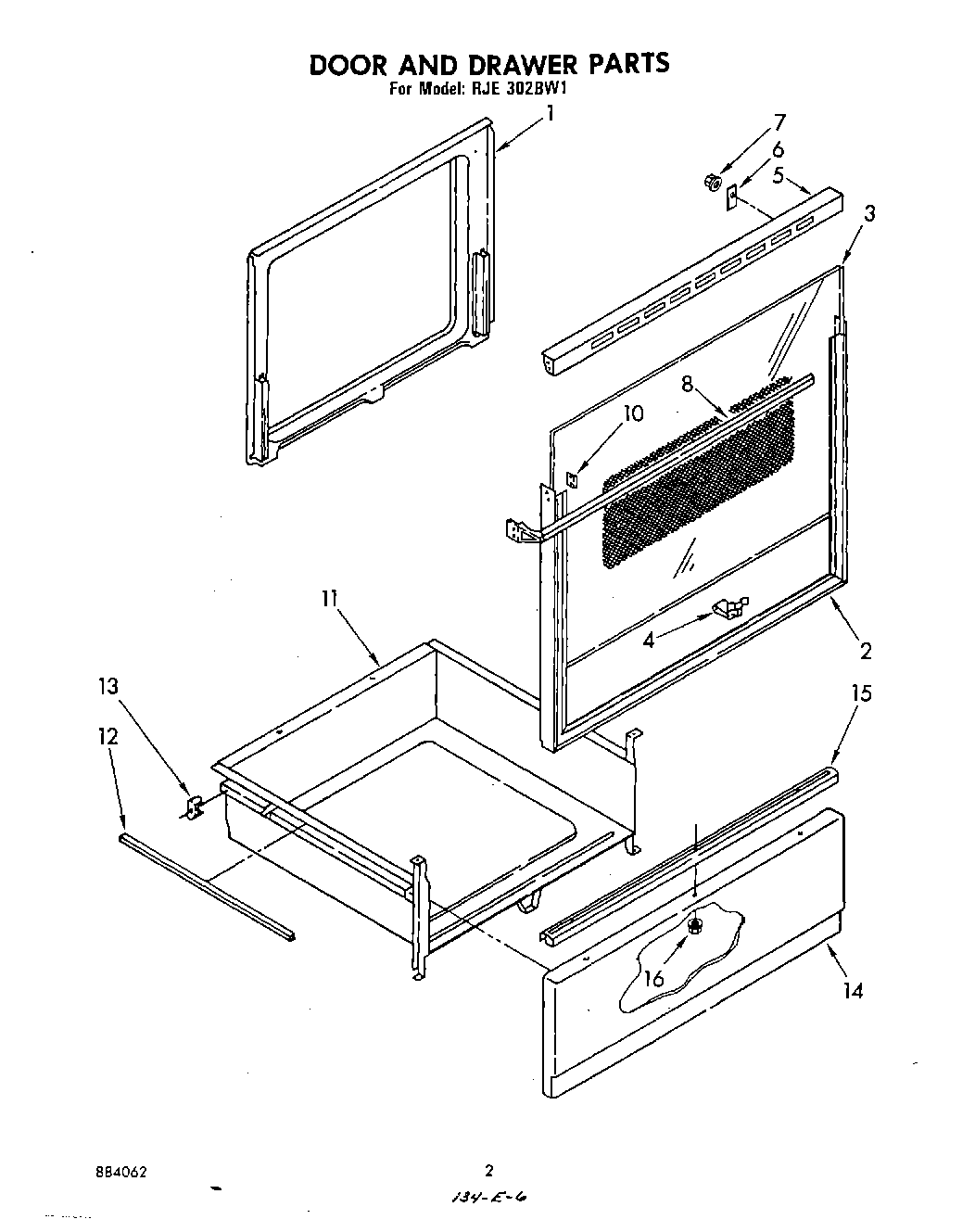

RJE302BW1 02 – DOOR AND DRAWER

RJE302BW1 02 – DOOR AND DRAWER

Written by

in

RJE302BW1 02 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2frame, door 30“
3Glass, Outer
4clip, glass (10)
5Top, Door Frame
6hold down, glass (2)
7WP90296 Whirlpool Clip
8Handle, Oven Door
8WP912618 Whirlpool Dishwasher Screw
10screw (3)
11Drawer, Utility
12Protector, Drawer (2)
13Glide, Rear (2)
13Screw, 10A x 1/2 (2) (Black)
14Panel, Drawer (New Avocado)
14Panel Drawer (White)
14WP488787 Whirlpool Refrigerator Screw
14Panel, Drawer (Platinum)
14Panel, Drawer (Toast)
14Panel Drawer (Harvest Gold)
14Panel, Lower (Coffee)
14Panel Drawer (Black)
14Panel, Drawer (Almond)
15Handle, Drawer
16WP486255 Whirlpool Air Conditioner Nut
