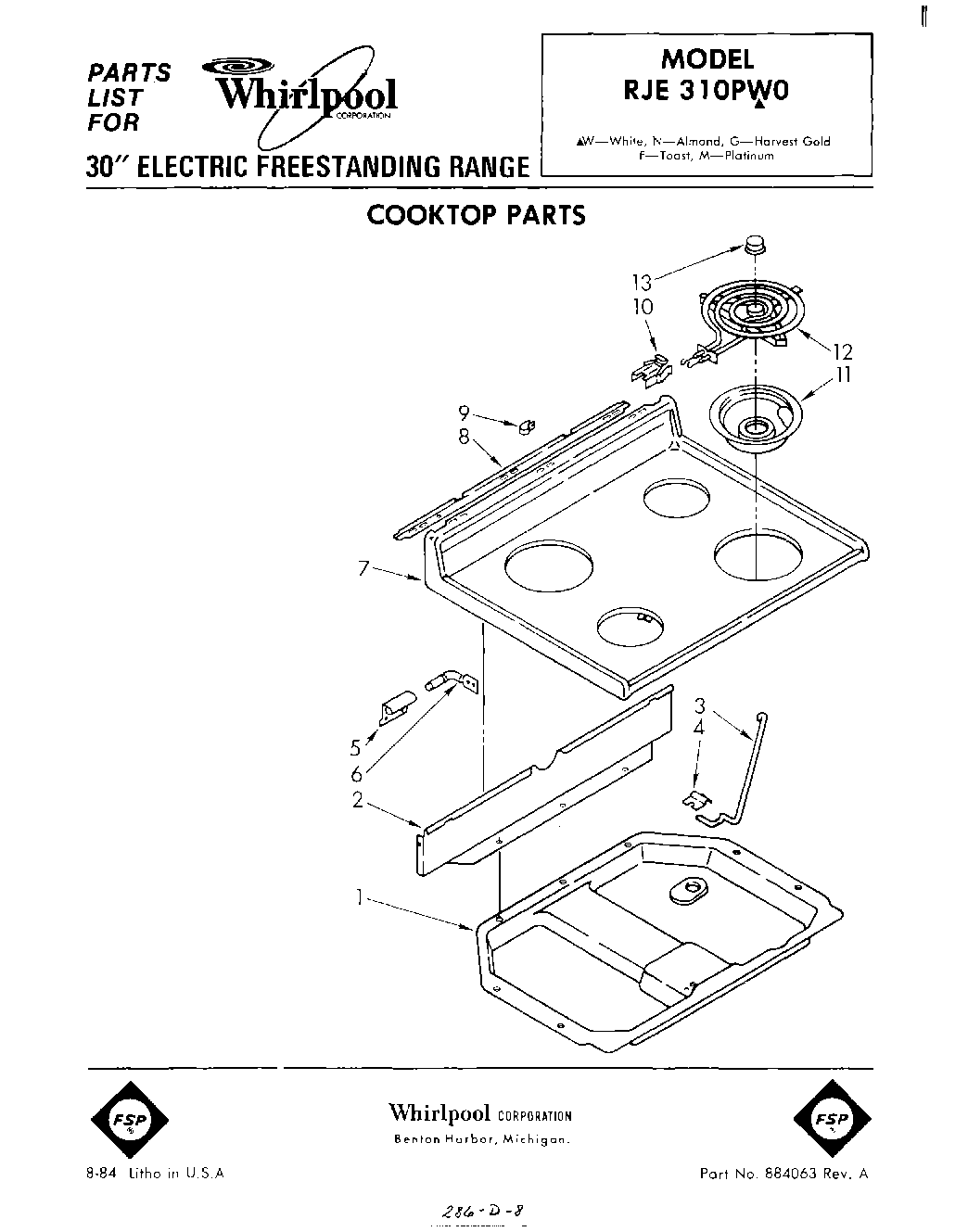

RJE310PW0 01 – COOKTOP

RJE310PW0 01 – COOKTOP

Written by

in

RJE310PW0 01 – COOKTOP

Products

PositionProduct
Unit, Surface (8“ (208V) (2))
WP660533 Whirlpool Oven 8" Surface Element
1Burner Box
2Shield, Wiring
3Rod, Cooktop
4WP3390631 Whirlpool Screw
4Retainer, Cooktop
5Bracket, Cooktop (2)
6Pin, Cooktop (2)
7Cooktop (White)
7Cooktop (Platinum)
7Cooktop (Toast)
7Cooktop (Almond)
7Cooktop (Harvest Gold)
8Barrier
9SCREW
9WP308605 Whirlpool Refrigerator Clamp
10BURNER RECEPTACLE KIT
10WP313808 Whirlpool Screw
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
12Unit, Surface (8“ (208V) (2) (Includes Illus. 20))
13Medallion (4)
