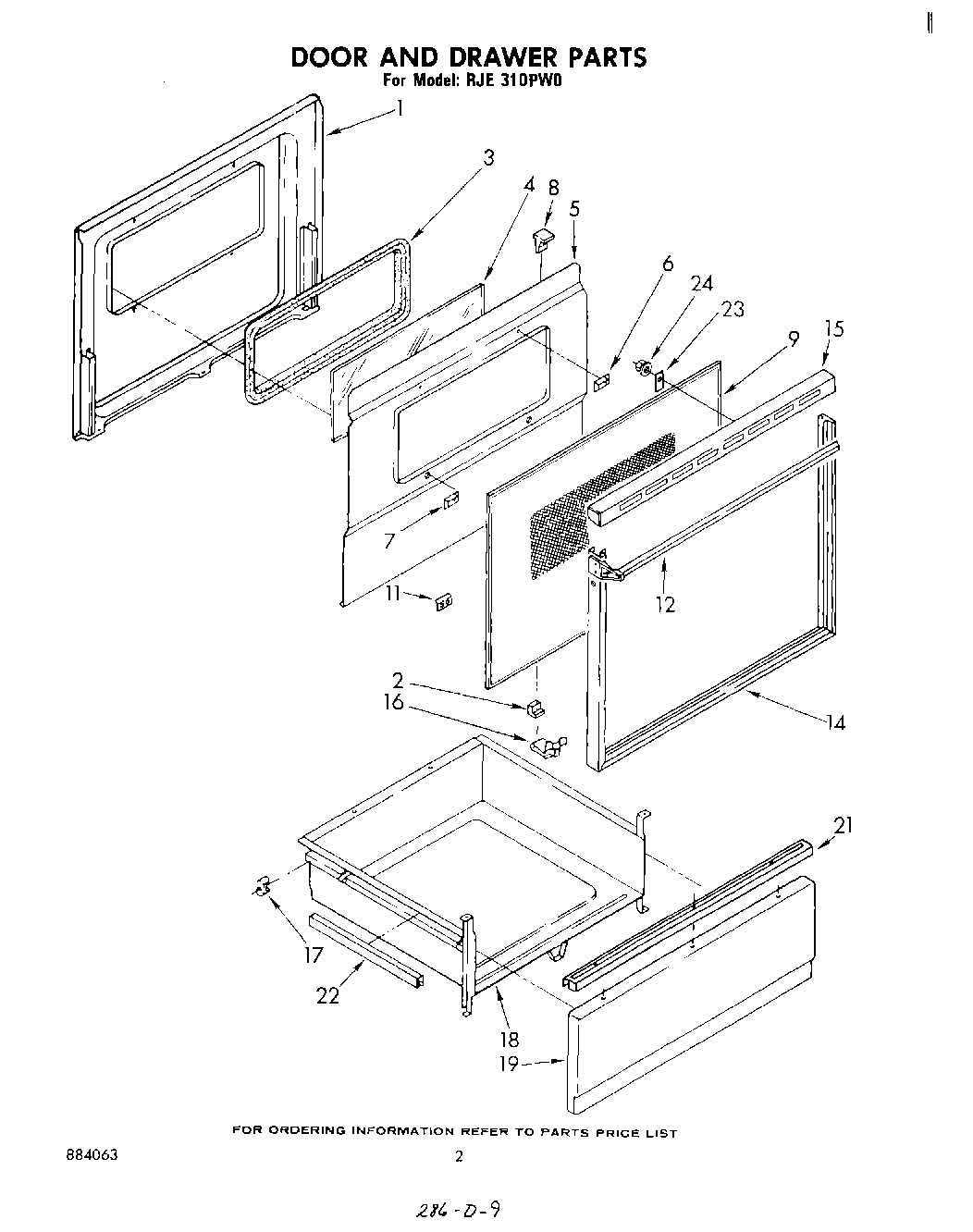

RJE310PW0 02 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Seal, Foam
3	seal, pano glass
4	glass, inner 30“
5	baffle, insulation
7	spacer, insulation baffle (4)
8	Channel, Rubber (4)
9	Glass, Outer
11	screw (3)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	frame, door 30“
15	Top, Door Frame
16	clip, glass (10)
17	Screw, 10A x 1/2 (2) (Black)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Toast)
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
19	Panel, Drawer (Platinum)
19	WP488787 Whirlpool Refrigerator Screw
21	Handle, Drawer
21	WP488627 Whirlpool Refrigerator Screw
22	Protector, Drawer (2)
23	hold down, glass (2)
24	WP90296 Whirlpool Clip
