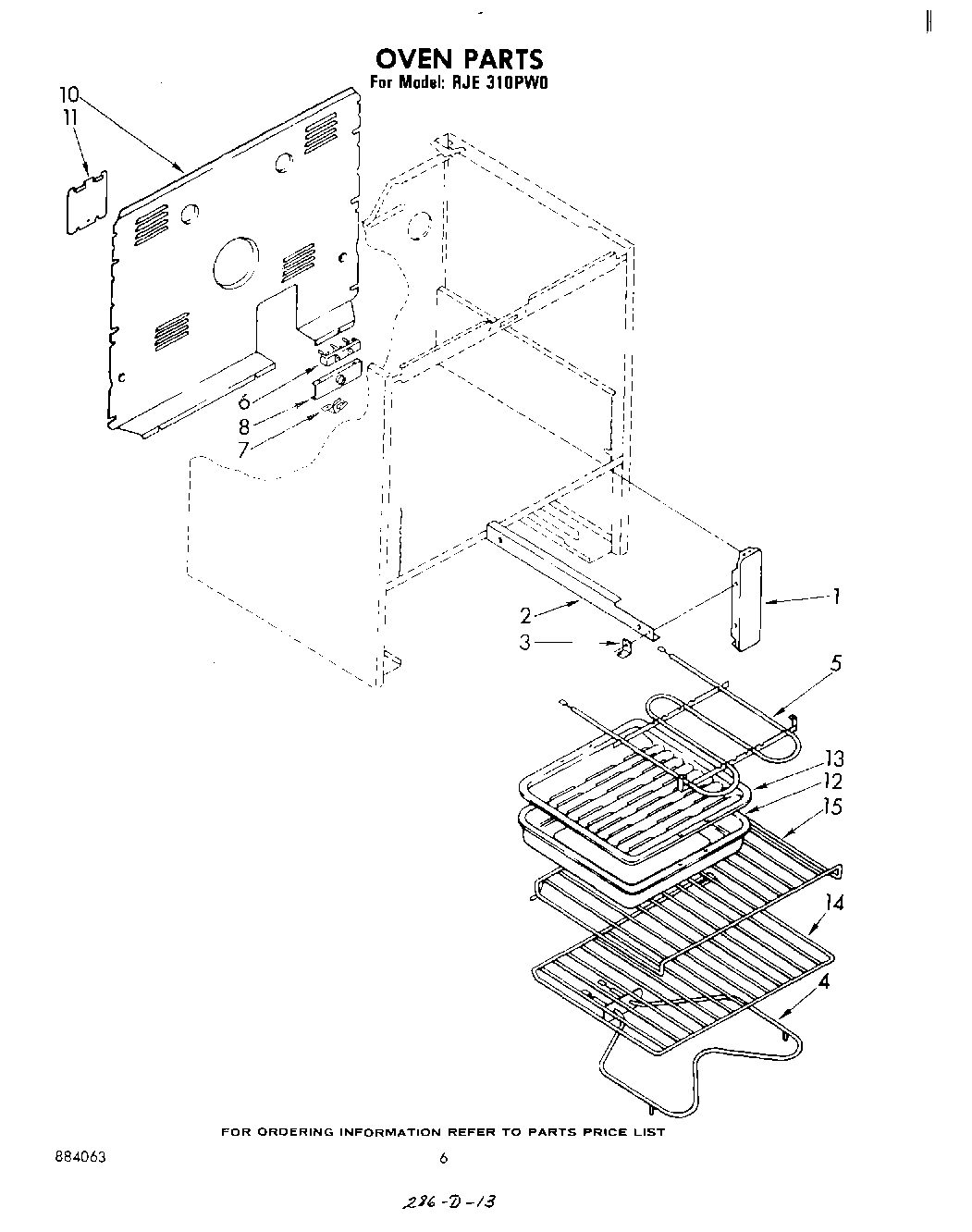

RJE310PW0 05 – LITERATURE AND OPTIONAL

Products

Position	Product
	Platinum (Uncut)
	511873 Whirlpool Refrigerator Paint
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Unit, Broil (208V)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Screw, 10A x 1/2 (2) (Black)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	WP312309 Whirlpool Bake Element
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 799351
15	Wire (14 Ga. 200 c Brown)
15	1
15	WPL 884063
15	WPL 310595
15	WPL 312718
15	Rotisserie Kit
15	72113 Whirlpool Touch-Up Paint
15	WPL 308500
15	Leveler (Thinner) (2oz.)
15	Grease
15	18 Ga. 80~c Rating (Red)
15	Wire (12 Ga. 150 c Black)
15	WPL 799832
15	350942 Whirlpool Spray Paint
15	WPL 72112
15	350930 Whirlpool White Spray Paint
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	WP72107 Whirlpool Touchup
15	72017 Whirlpool Appliance Touch-Up Paint White
15	WPW10208653 Whirlpool Insulation
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	Wire (14 Ga. 150 c Orange)
15	WPL 308172
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Blue)
15	242831 Whirlpool Oven Wire
15	285006 Whirlpool Spray
15	Wire, 25“ Roll (White 14 GA.)
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire, 25` Roll (Black 14 Ga.)
15	350956 Whirlpool Spray Assembly
