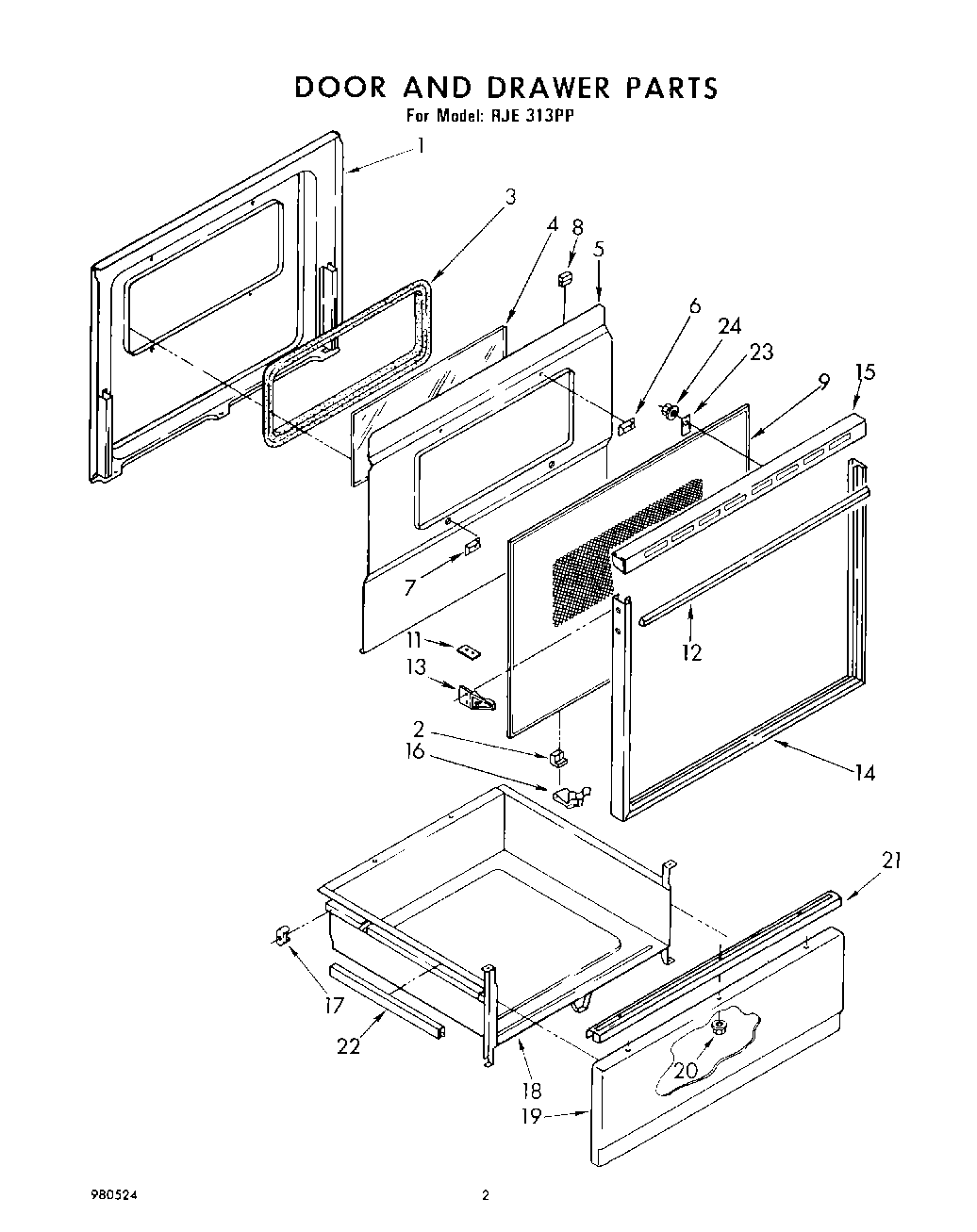

RJE313PP 02 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
1	Liner, Door
1	panel, top (screw, 10a x 3/8 (3))
1	Clip (2)
1	Grill, Bottom (Screw (3))
1	Screw (3)
2	Cushion, Oven Door (3)
3	seal, pano glass
4	glass, inner 30“
5	baffle, insulation
7	Screw, 10A x 1/2 (2) (Black)
7	spacer, insulation baffle (4)
8	channel, rubber (4)
9	Glass, Outer
11	Spacer, Door Handle (2)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
13	End Cap, Handle (2)
14	frame, door 30“
15	Top, Door Frame
15	Nut, Speed (4)
16	clip, glass (10)
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (Black)
19	Panel, Drawer (Screw, 8-32 (3))
20	WP486255 Whirlpool Air Conditioner Nut
21	WP912618 Whirlpool Dishwasher Screw
21	Handle, Drawer
22	Protector, Drawer (2)
23	hold down, glass (2)
24	350956 Whirlpool Spray Assembly
24	Wire, 25` Roll (Red 14 Ga.)
24	WPL 310595
24	WPL 980524
24	WP72107 Whirlpool Touchup
24	WPL 308500
24	Wire, 25` Roll (Black 14 Ga.)
24	WPW10208653 Whirlpool Insulation
24	242831 Whirlpool Oven Wire
24	Wire (14 Ga. 150 c Blue)
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Yellow)
24	Wire (12 Ga. 150 c Black)
24	18 Ga. 80~c Rating (Red)
24	Wire (14 Ga. 200 c Brown)
24	1
24	WP90296 Whirlpool Clip
24	Almond (Uncut)
24	Grease
24	WPL 799351
24	Wire (14 Ga. 150 c Brown)
24	WPL 308494
24	Wire, 25“ Roll (White 14 GA.)
