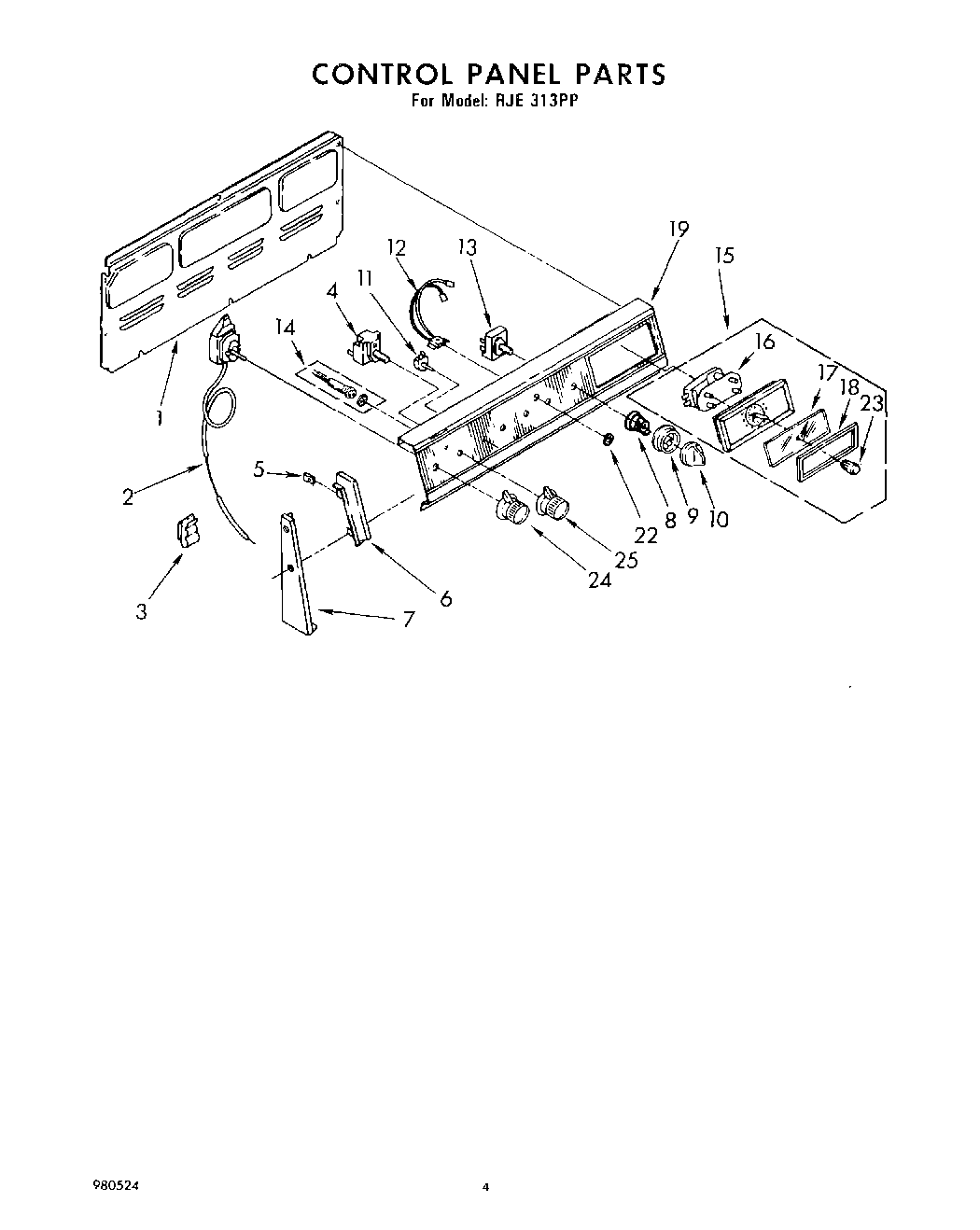

RJE313PP 03 – CONTROL PANEL

Products

Position	Product
1	Cover, Rear
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven (Alternate)
2	screw, 6-32 x 1/4 (2)
3	WPL 309211
4	Switch, Selector
5	Clip (4)
6	End Cap, R.H.
6	End Cap, L.H.
7	End Trim (R.H.)
7	WP965173 Whirlpool Dishwasher Screw
7	End Trim (L.H.)
7	SCREW
8	Spring, Bezel (4)
9	W11194997 Whirlpool Knob Bezel
10	WP307458 Whirlpool Knob
11	Nut, 3/8-27
11	Switch, Pushbutton
12	Light, Indicator (Surface Unit) (Includes Illus. 22)
13	WP3149401 Whirlpool Infinite Burner Switch
13	WP486579 Whirlpool Air Conditioner Screw
13	WP3149399 Whirlpool Infinite Switch
13	Switch Infinite (Alternate Use w/6`` Surface Unit)
14	Light, Indicator (Oven) (Alternate)
14	Light, Indicator (Oven) (Alternate)
15	Clock, Complete (Includes Illus. 16, 17, 18 & 23)
16	Motor, Timer
17	Glass, Timer
18	Bezel
19	Control Panel
19	W11693756 Whirlpool Screw Assembly
19	Screw
19	WP488627 Whirlpool Refrigerator Screw
22	Lens, Red (2)
23	Knob, Timer (3)
24	Knob, Thermostat
25	Knob, Selector
