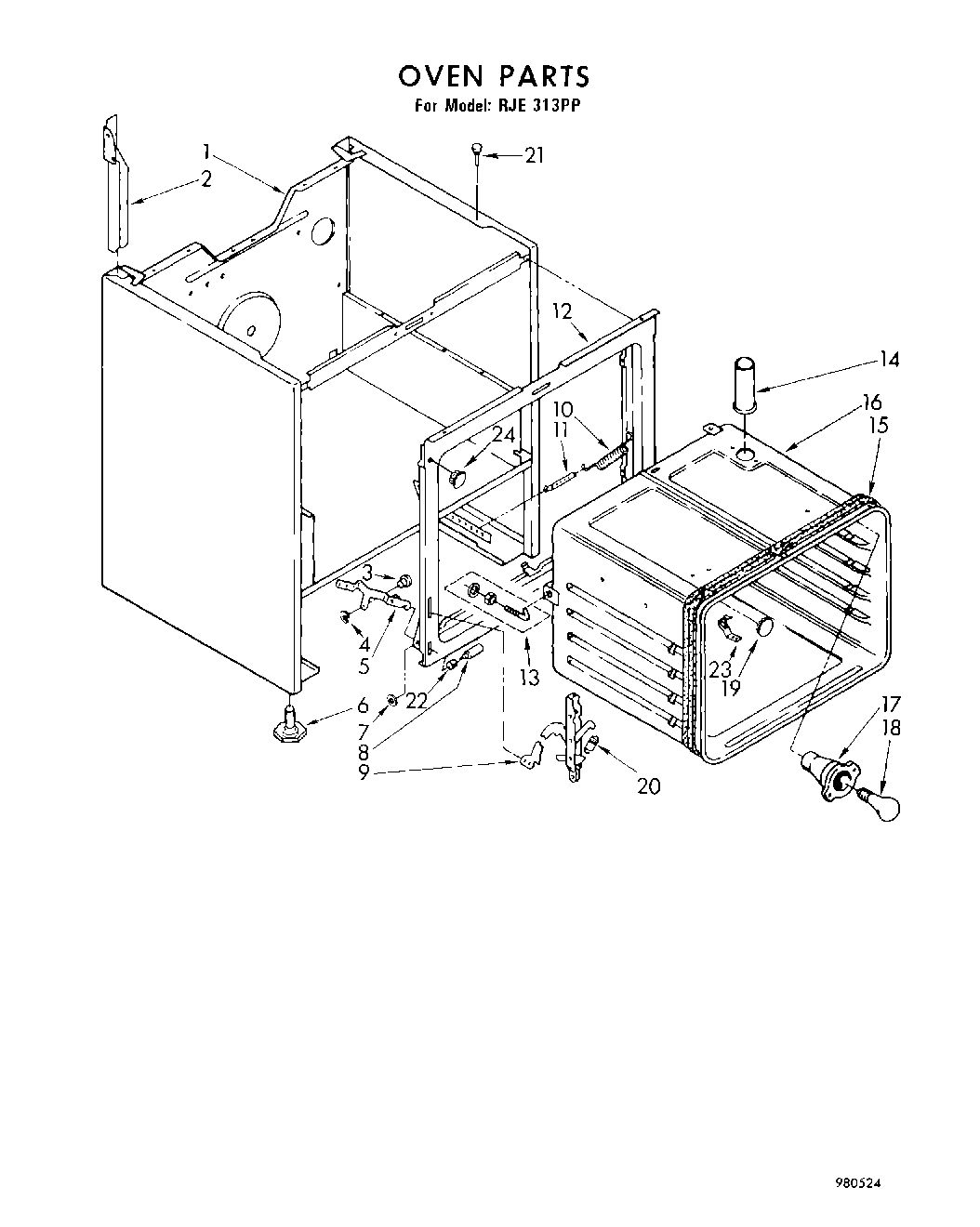

RJE313PP 04 – OVEN

RJE313PP 04 – OVEN

Written by

in

RJE313PP 04 – OVEN

Products

PositionProduct
1main chassis (almond)
2Support, Channel (L.H.)
2Support, Channel (R.H.)
3WP307986 Whirlpool Hinge Pin
4Retainer Ring (2)
5SCREW
5Hinge (L.H.)
5Hinge (R.H.)
6WP233550 Whirlpool Leveling Feet
7Pushnut (2)
8Pin, Hinge Ear (2)
9Channel Arm (2)
10Spring, Oven Door (2)
11WP308125 Whirlpool Microwave Range/Cooktop Anchor
12Frame, Front
13Oven Mounting Kit
14WP308685 Whirlpool Microwave Screw
14Vent, Oven
15Heat Seal
16Extension-Handle
16Screw (3)
17Socket, Oven Light (Alt.)
17Screw (10-12 x .875)
17Socket, Oven Light (Alt.)
18RANGE ONLY 40W 120V APPL BULB
19Plug Button
20Spring, Door Stop
21238614 Whirlpool Bumper Hinge
22Snubber, Door (2)
2398005642 Whirlpool Clip
24Plug Button
