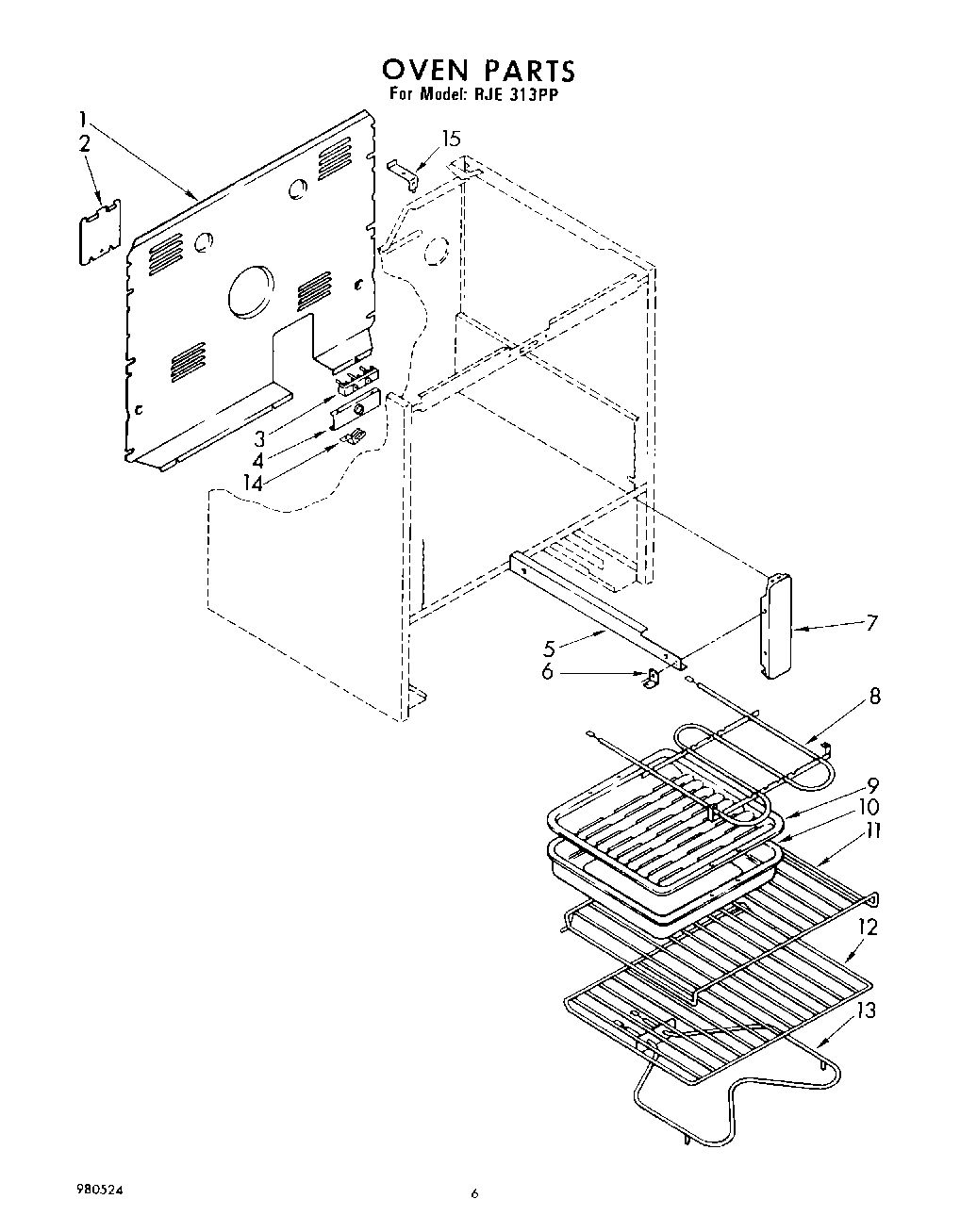

RJE313PP 05 – SECTION

RJE313PP 05 – SECTION

Written by

in

RJE313PP 05 – SECTION

Products

PositionProduct
1Cover, Rear
3Terminal, 1/4
3Cover, Service
3WP8203546 Whirlpool Terminal Block
3W10841059 Whirlpool Screw
3WP308544 Whirlpool Screw
3WP112432 Whirlpool Nut Assembly
4Bracket, Service
5rail l.h. (includes illus. 3)
5Rail R.H. (Includes Illus. 3)
6WP308685 Whirlpool Microwave Screw
6Glide, Front (2)
7Bracket, Mounting (2)
8Washer
8W11656009 Whirlpool Broil Element
94396923 Whirlpool Broil Pan Set Gray Porcelain
11WPL 308172
12WPL 308173
13Screw, 10-32 x 5/8 (4)
13ELMNT-BAKE
14SCREW
14WPL 308498
15WPL 309102
