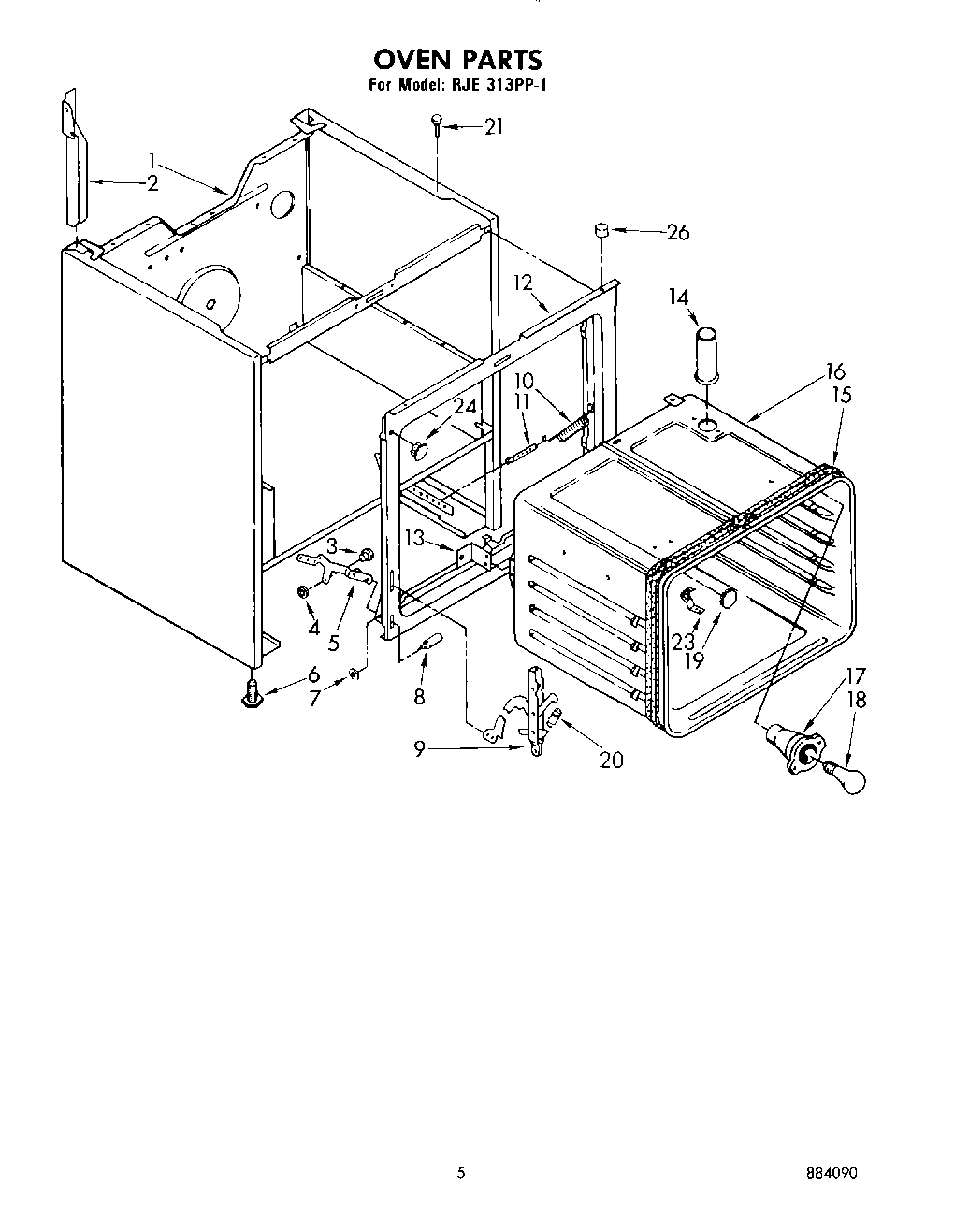

RJE313PP1 04 – OVEN

Written by

RJE313PP1 04 – OVEN

Products

Position	Product
1	Main Chassis (Platinum)
2	Support, Channel (L.H.)
2	Support, Channel (R.H.)
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	Hinge (L.H.)
5	Hinge (R.H.)
5	SCREW
6	WPW10058460 Whirlpool Appliance Levelling Leg
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel, Arm (2)
10	Spring, Oven Door (2)
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
13	Bracket, Oven (Mounting)
14	Vent, Oven
14	Screw, 10A x 1/2 (2) (Black)
15	Heat Seal
16	Screw (3)
16	WPL 329000
17	Screw (10-12 x .875)
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light (Alt.)
18	RANGE ONLY 40W 120V APPL BULB
19	Plug Button
20	Spring, Door Stop
21	238614 Whirlpool Bumper Hinge
23	98005642 Whirlpool Clip
24	Plug Button
26	locator, cooktop
26	Screw, 8-32 x 5/16 (2)
