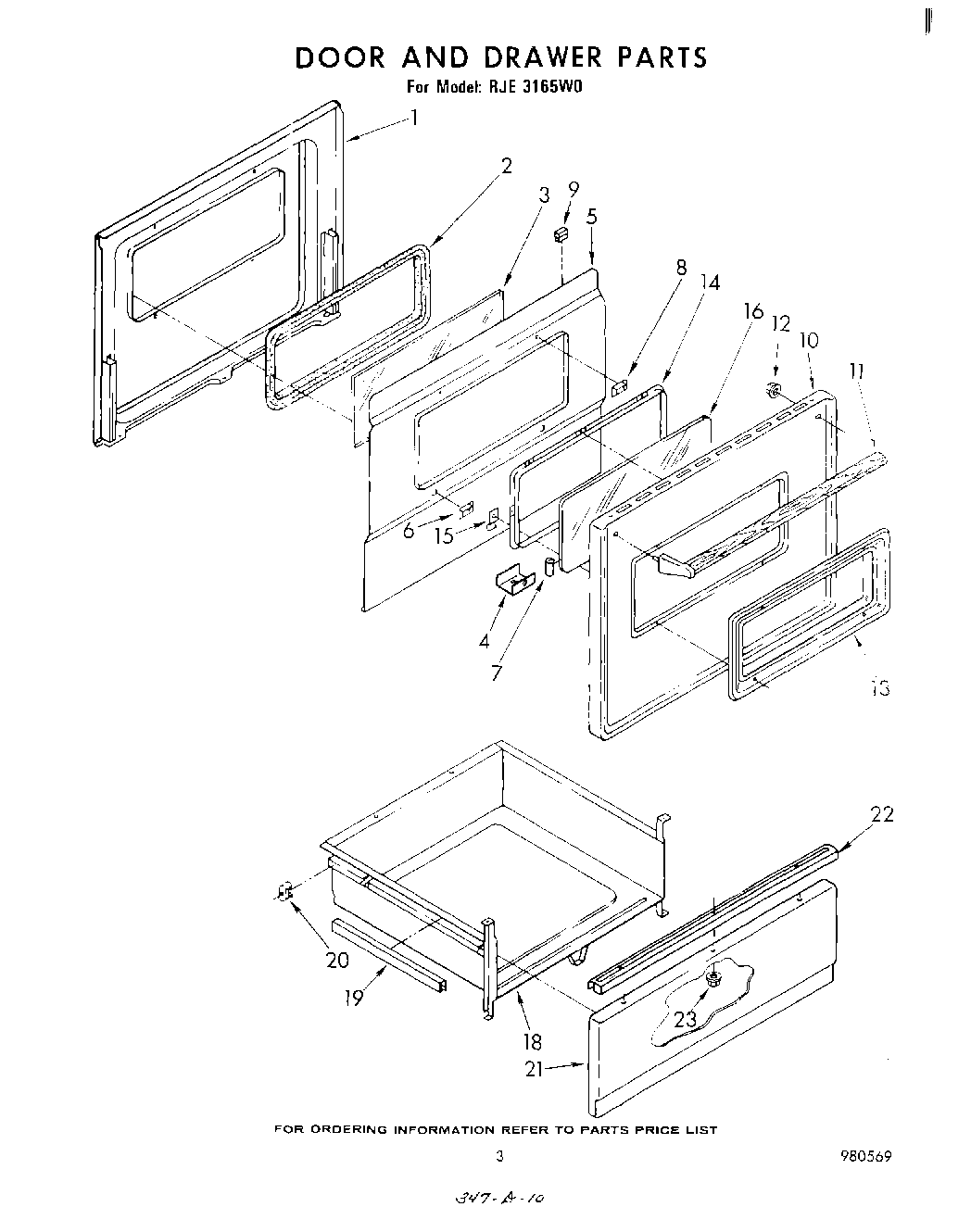

RJE3165W0 03 – DOOR AND DRAWER

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
1	Liner, Door
1	Screw (3)
1	Clip (2)
2	Seal, Window (Large)
3	Glass, Inner
4	Spacer, Baffle (2)
5	Baffle, Insulation
6	Screw, 10A x 1/2 (2) (Black)
7	Cushion, Oven Door (3)
8	spacer, insulation baffle (4)
9	channel, rubber (4)
10	Panel, Oven Door (New Avocado)
10	Panel, Oven Door (White)
10	Panel, Oven Door (Coffee)
10	Panel, Oven Door (Harvest Gold)
10	Panel, Oven Door (Almond)
11	Handle, Oven Door
12	WP308499 Whirlpool Nut
13	Frame, Window (30“ Large)
14	Screw
14	Retainer, Glass
15	Clip, Frame
16	Glass, Outer
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	WP308685 Whirlpool Microwave Screw
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	Panel, Drawer (Screw, 8-32 (3))
21	Panel Drawer (Black)
21	Panel Drawer (Harvest Gold)
21	Panel, Drawer (New Avocado)
21	Panel, Lower (Coffee)
22	WP912618 Whirlpool Dishwasher Screw
22	Handle, Drawer
23	WP486255 Whirlpool Air Conditioner Nut
