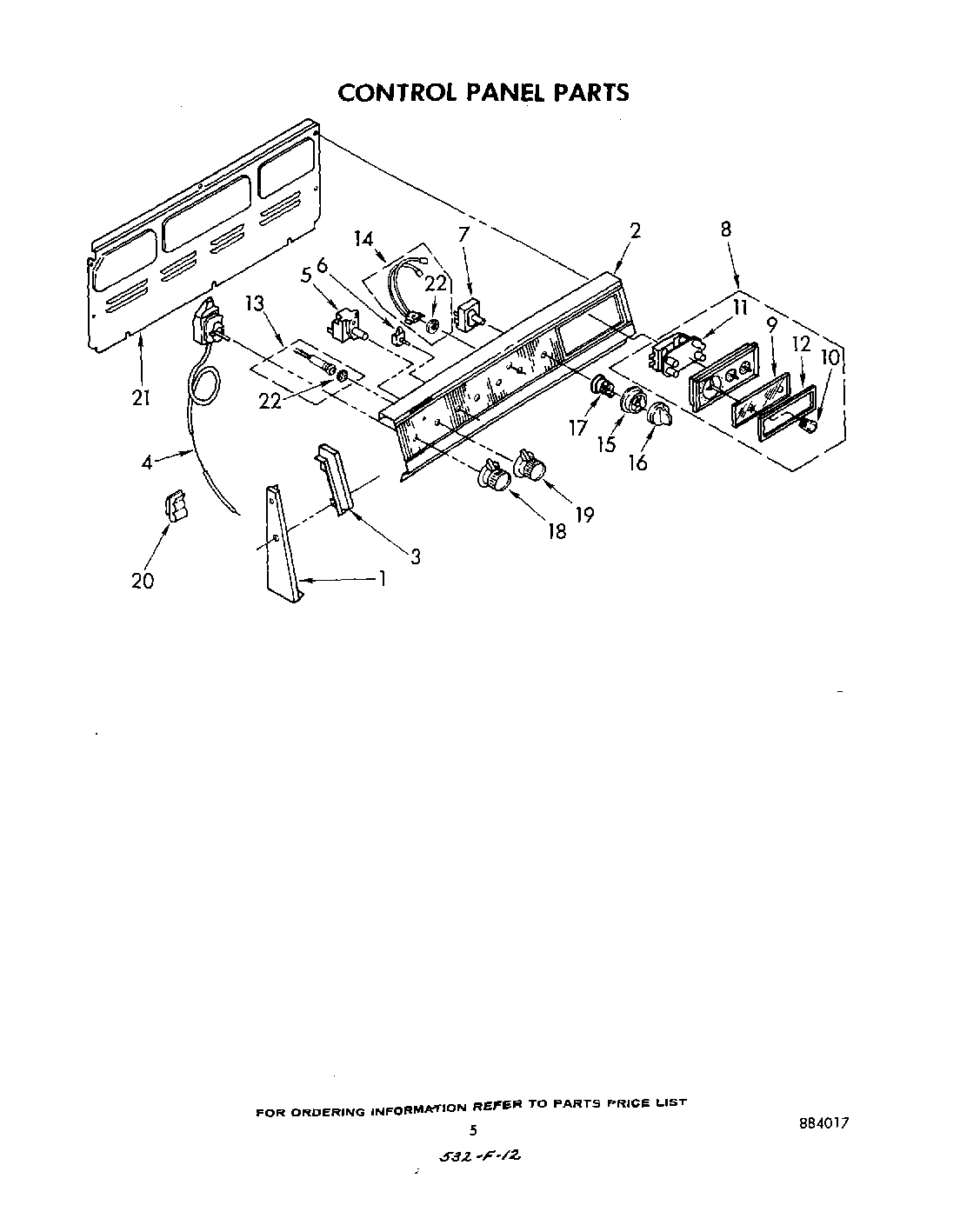

RJE3165W1 04 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	End Trim (L.H.)
1	End Trim (R.H.)
2	Control Panel
2	Washer
3	WP488627 Whirlpool Refrigerator Screw
3	End Cap, L.H.
3	W11693756 Whirlpool Screw Assembly
3	End Cap, R.H.
4	Thermostat, Oven (Alternate)
4	Thermostat, Oven (Alt.)
4	screw, 6-32 x 1/4 (2)
5	Switch, Selector (4 Position)
6	Switch, Pushbutton
7	WP486579 Whirlpool Air Conditioner Screw
7	W10900107 Whirlpool Oven Surface Element Switch
8	Timer, Automatic (Includes Illus. 9, 10, 11 & 12)
9	Glass, Timer
10	Knob, Timer (3)
11	Motor, Timer
12	Bezel, Timer
13	Light, Indicator (Oven)
14	Light, Indicator (Surface Unit) (Includes Illus. 22)
15	W11194997 Whirlpool Knob Bezel
16	WP307458 Whirlpool Knob
17	Spring, Bezel (4)
18	Knob, Thermostat
19	Knob, Selector
19	WP688805 Whirlpool Spring Clip
20	WPL 309211
21	Cover, Rear
21	SCREW
22	Lens (4)
