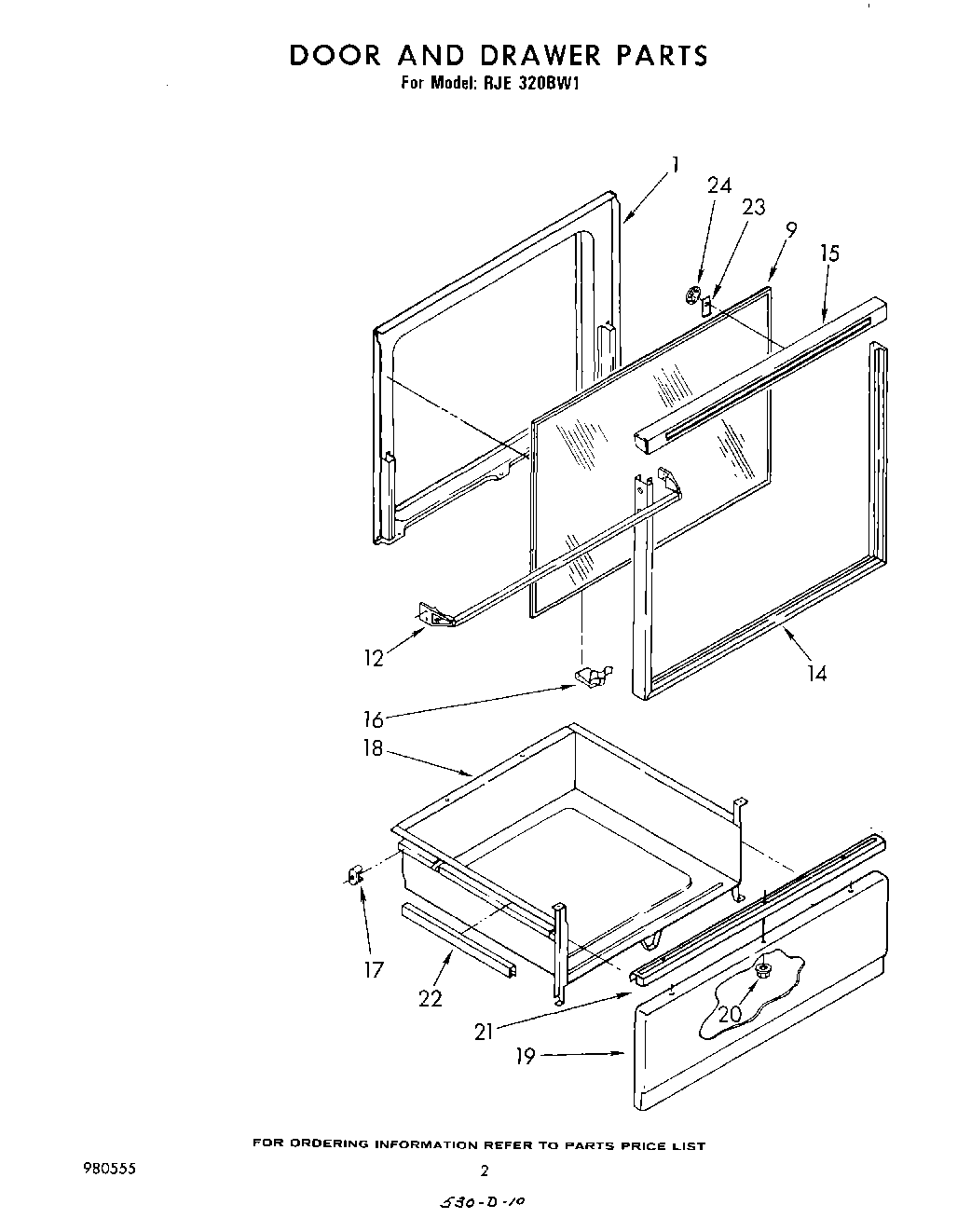

RJE320BW1 02 – DOOR AND DRAWER

Products

PositionProduct
1Knob-Upper Thermostat
9Glass, Outer
12WP355515 Whirlpool Screw
12Handle, Oven Door
14frame, door 30“
15Top, Door Frame
16clip, glass (10)
17Glide, Rear (2)
17Screw, 10A x 1/2 (2) (Black)
18Drawer, Utility
19Panel, Drawer (New Avocado)
19Panel, Drawer (Platinum)
19Panel, Drawer (Toast)
19Panel Drawer (Harvest Gold)
19Panel Drawer (White)
19WP488787 Whirlpool Refrigerator Screw
19Panel, Lower (Coffee)
19Panel, Drawer (Almond)
20WP486255 Whirlpool Air Conditioner Nut
21WP912618 Whirlpool Dishwasher Screw
21Handle, Drawer
22Protector, Drawer (2)
23hold down, glass (2)
24WP90296 Whirlpool Clip
