RJE320BW1 04 – LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Almond (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, Coffee (1 Qt. Uncut)
	511873 Whirlpool Refrigerator Paint

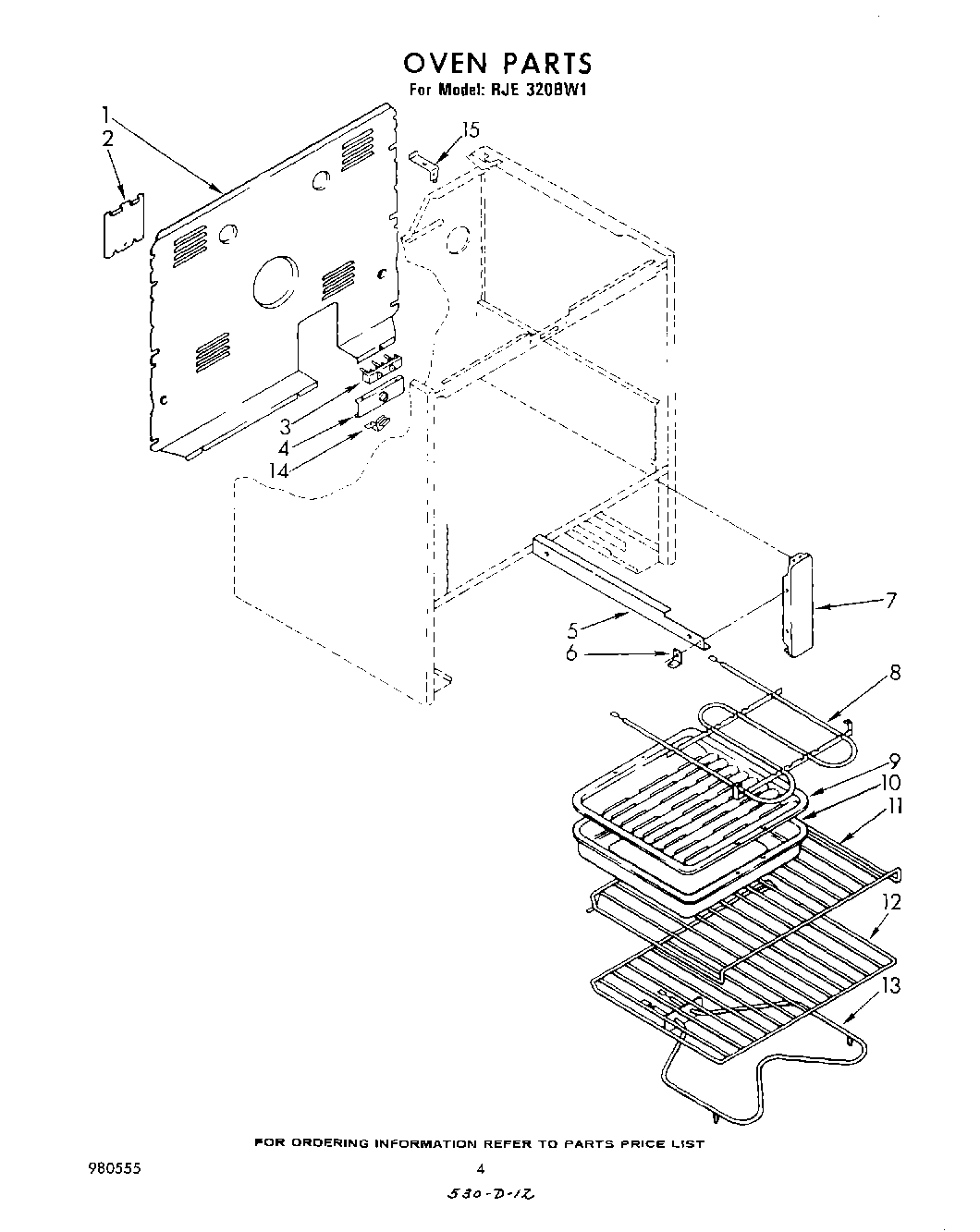

1	Cover, Rear
2	WP308544 Whirlpool Screw
2	Cover, Service
3	Screw, (2) 10-16 x 1
3	WP8203546 Whirlpool Terminal Block
3	WP112432 Whirlpool Nut Assembly
4	Bracket, Service
5	rail l.h. (includes illus. 3)
5	Rail R.H. (Includes Illus. 3)
6	Glide, Front (2)
6	Screw, 10A x 1/2 (2) (Black)
7	Bracket, Mounting (2)
8	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
9	4396923 Whirlpool Broil Pan Set Gray Porcelain
11	WPL 308172
12	WPL 308173
13	Screw, 10-32 x 5/8 (4)
13	ELMNT-BAKE
14	WPL 308498
15	WPL 799351
15	Grease
15	Leveler (Thinner) (2oz.)
15	Golden Harvest
15	Toast
15	Paint, Spray (13 Oz.) (Platinum)
15	WPL 72112
15	350942 Whirlpool Spray Paint
15	WPL 308500
15	WPL 980555
15	WPL 310597
15	WPL 312718
15	350930 Whirlpool White Spray Paint
15	350956 Whirlpool Spray Assembly
15	72017 Whirlpool Appliance Touch-Up Paint White
15	WP72107 Whirlpool Touchup
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	SCREW
15	72113 Whirlpool Touch-Up Paint
15	1
15	Wire (14 Ga. 200 c Brown)
15	WPL 309102
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	285006 Whirlpool Spray
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	Wire, 25` Roll (Red 14 Ga.)
15	WPW10208653 Whirlpool Insulation
15	242831 Whirlpool Oven Wire
15	Wire (14 Ga. 150 c Blue)
15	18 Ga. 80~c Rating (Red)
15	Wire (12 Ga. 150 c Black)
15	Wire (14 Ga. 150 c Yellow)
15	Wire, 25“ Roll (White 14 GA.)
15	Wire (14 Ga. 150 c Orange)
15	WPL 799832
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire, 25` Roll (Black 14 Ga.)
