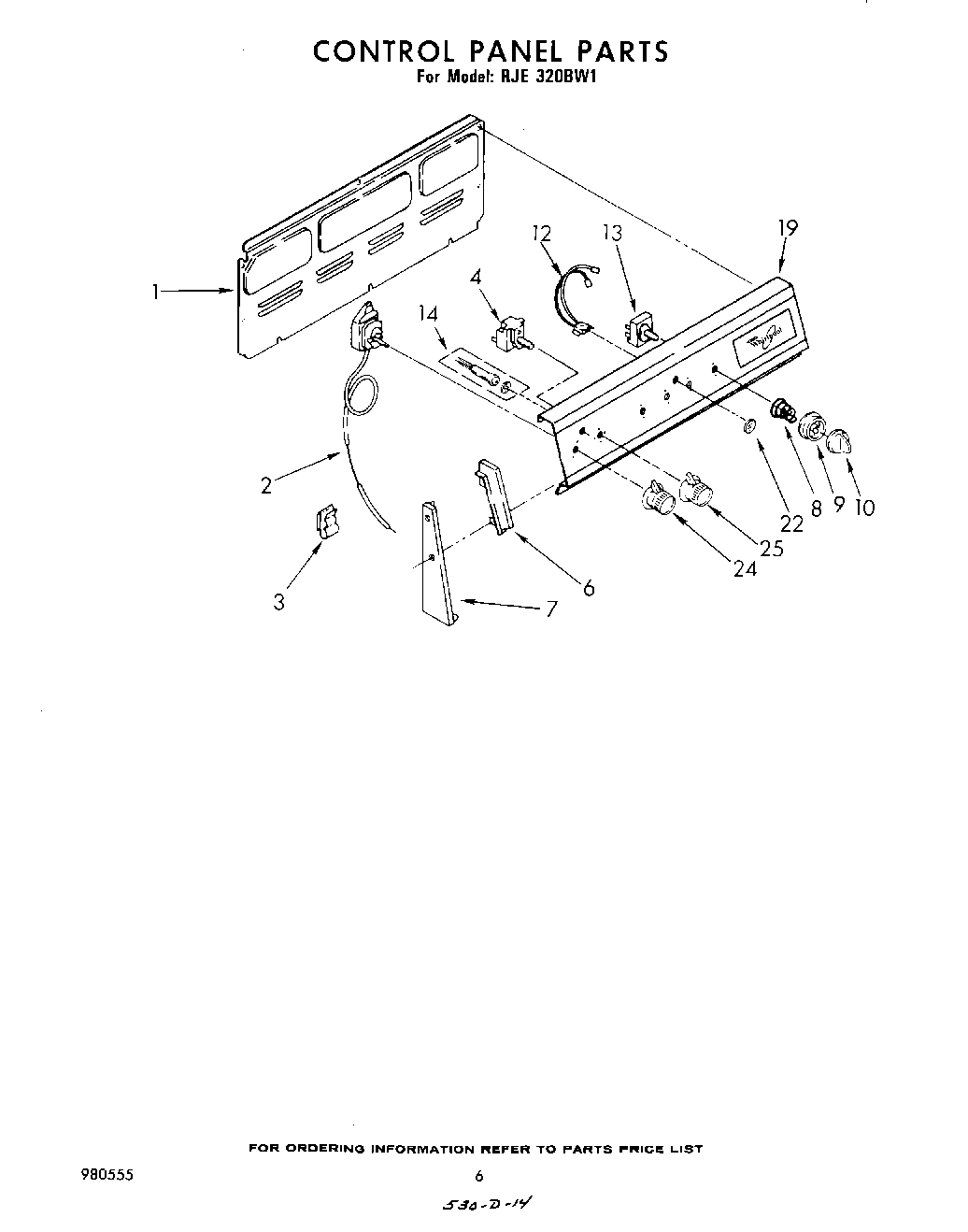

RJE320BW1 05 – CONTROL PANEL

Products

PositionProduct
1Cover, Rear
2Thermostat, Oven (Alt.)
2Thermostat, Oven (Alternate)
2screw, 6-32 x 1/4 (2)
3WPL 309211
4Switch, Selector
6WP488627 Whirlpool Refrigerator Screw
6End Cap, R.H.
6End Cap, L.H.
7SCREW
7End Trim (R.H.)
7End Trim (L.H.)
7WP3390631 Whirlpool Screw
8Spring, Bezel (4)
9W11194997 Whirlpool Knob Bezel
10WP307458 Whirlpool Knob
12Light, Indicator (Surface Unit) (Includes Illus. 22)
13W10900107 Whirlpool Oven Surface Element Switch
13WP486579 Whirlpool Air Conditioner Screw
14Light, Indicator (Oven)
19Control Panel (Coffee)
19Control Panel (Almond)
19Control Panel (Toast)
19Control Panel (Harvest Gold)
19Control Panel (New Avocado)
19Control Panel (White)
19Control Panel (Platinum)
19Washer
19W11693756 Whirlpool Screw Assembly
22Lens, Red (2)
24Knob, Thermostat
25Knob, Selector
25WP688805 Whirlpool Spring Clip
