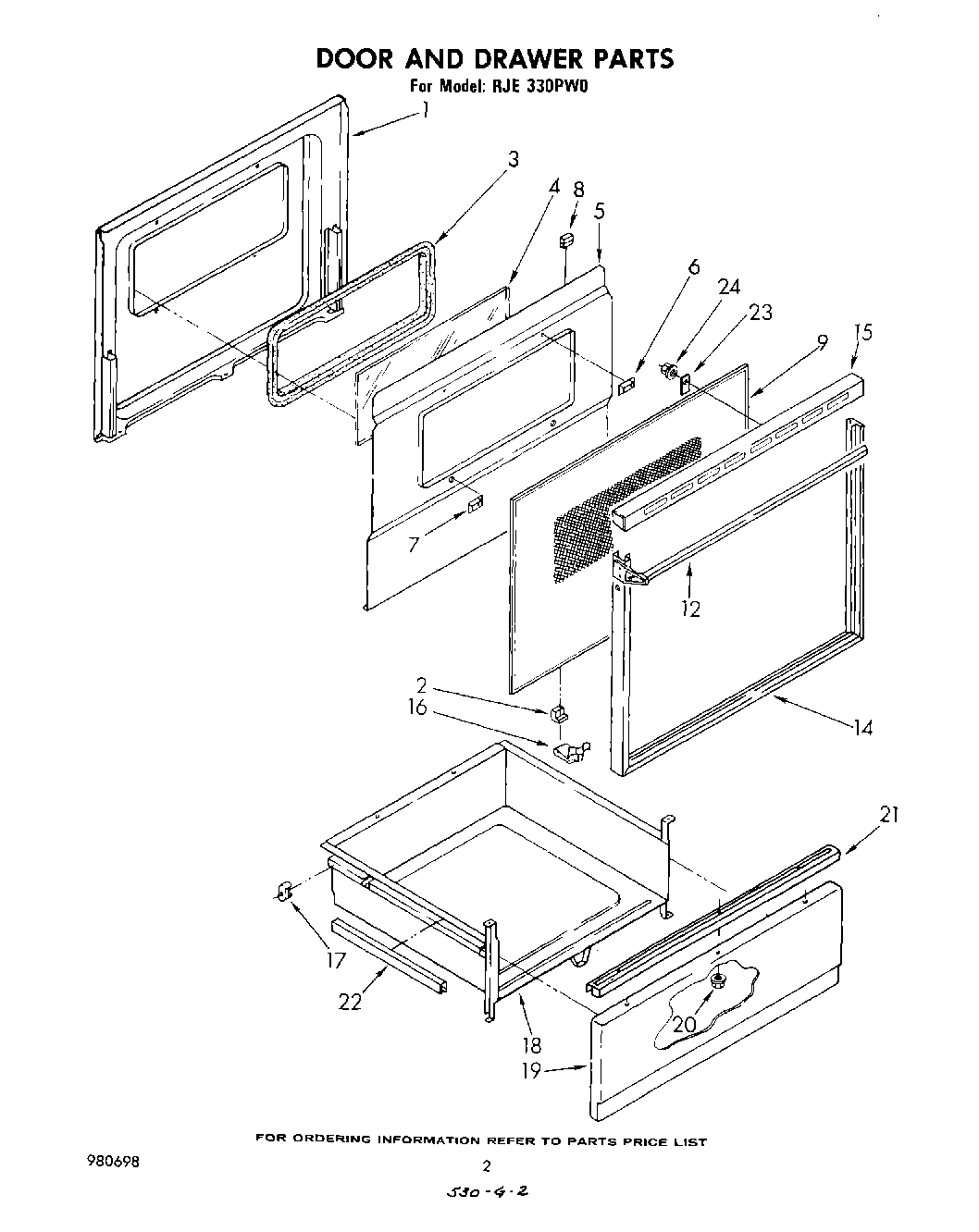

RJE330PW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

RJE330PW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

RJE330PW0 02 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
Almond (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
1liner, door
1Screw (3)
2Seal, Foam
3seal, pano glass
4glass, inner 30“
5baffle, insulation
7spacer, insulation baffle (4)
8Channel, Rubber (4)
9Glass, Outer
12Handle, Oven Door
12WP355515 Whirlpool Screw
14frame, door 30“
15Top, Door Frame
15screw (3)
16clip, glass (10)
17Screw, 10A x 1/2 (2) (Black)
17Glide, Rear (2)
18Drawer, Utility
19Panel Drawer (White)
19Panel, Drawer (Almond)
19Panel, Lower (Coffee)
19Panel, Drawer (New Avocado)
19Panel, Drawer (Platinum)
19Panel, Drawer (Toast)
19Panel Drawer (Harvest Gold)
19WP488787 Whirlpool Refrigerator Screw
20WP486255 Whirlpool Air Conditioner Nut
21Handle, Drawer
21WP912618 Whirlpool Dishwasher Screw
22Protector, Drawer (2)
23hold down, glass (2)
24WPL 310598
24WPL 799351
24242831 Whirlpool Oven Wire
24WPL 308500
24WPL 980698
24Leveler (Thinner) (2oz.)
24Grease
24WPL 312618
241
24FOIL, ALUMINUM OVEN (18“ X 25 )
24WPW10208653 Whirlpool Insulation
24WPL 799832
24WP90296 Whirlpool Clip
24350942 Whirlpool Spray Paint
24WPL 72112
24Paint, Spray (13 Oz.) (Platinum)
24Toast
24Golden Harvest
2472113 Whirlpool Touch-Up Paint
2472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
24WP72107 Whirlpool Touchup
2472017 Whirlpool Appliance Touch-Up Paint White
24350956 Whirlpool Spray Assembly
24Wire, 25` Roll (Black 14 Ga.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Blue)
24Paint, Spray 13 Oz. (Avocado)
24paint, spray 13 oz. (coffee)
24Paint, Touch-Up 1/2 Oz. (Coffee)
2472109 Whirlpool Dacor Avocado Touch-Up Paint
24285006 Whirlpool Spray
24Wire, 25“ Roll (White 14 GA.)
24350930 Whirlpool White Spray Paint
