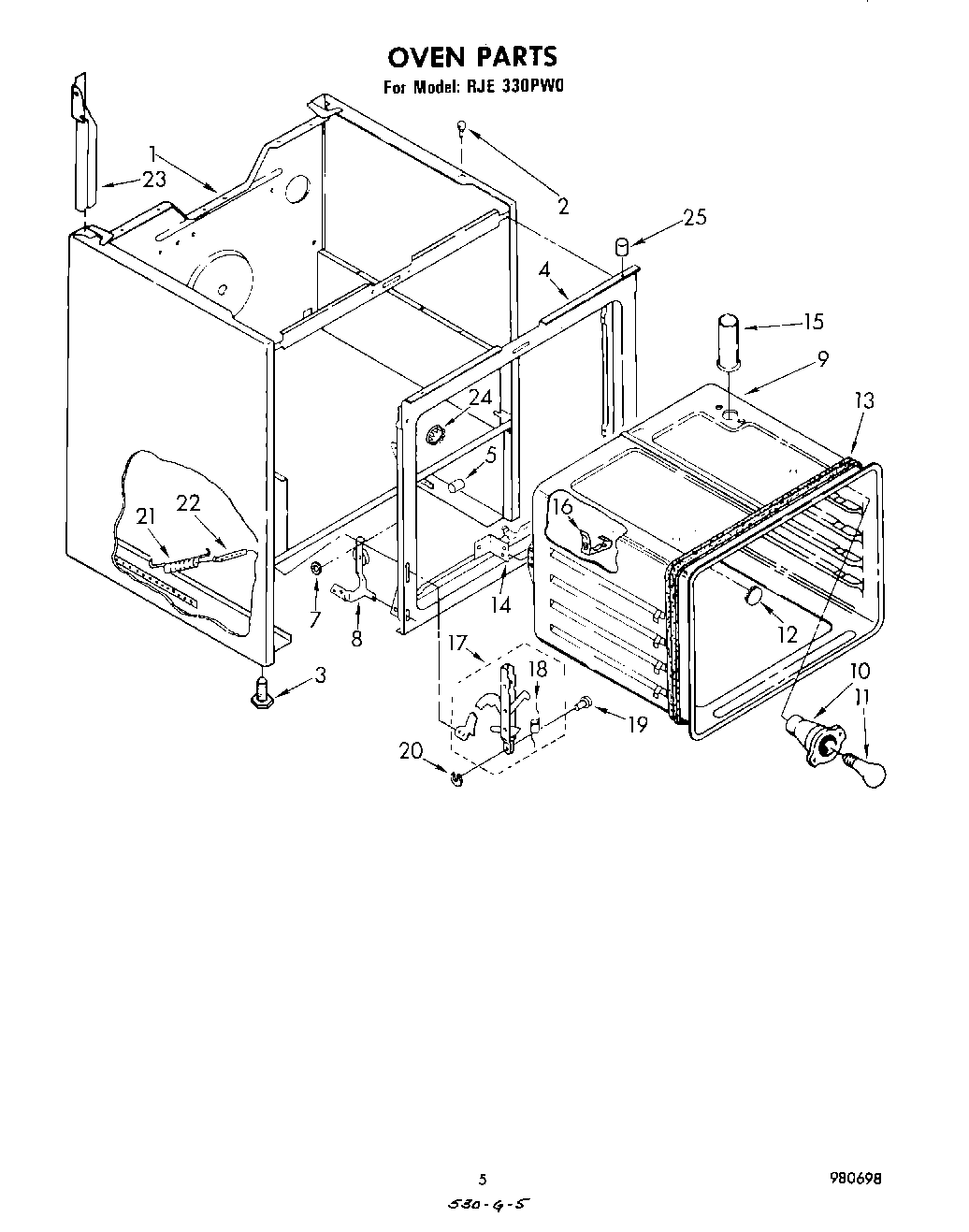

RJE330PW0 04 – OVEN

Products

Position	Product
1	Main Chassis (Platinum)
1	Main Chassis (Toast)
1	Main Chassis (White)
1	Main Chassis (Almond)
1	Main Chassis (Harvest Gold)
1	Main Chassis (New Avocado)
1	Main Chassis (Coffee)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
8	SCREW
9	Screw (3)
9	oven (30“ continous clean)
10	Screw (10-12 x .875)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Plug Button
13	Heat Seal
14	Bracket, Oven (Mounting)
15	Vent, Oven
15	Screw, 10A x 1/2 (2) (Black)
16	98005642 Whirlpool Clip
17	Channel, Arm (2)
18	Spring, Door Stop
19	WP307986 Whirlpool Hinge Pin
20	Retainer Ring (2)
21	Spring, Oven Door (2)
22	WP308125 Whirlpool Microwave Range/Cooktop Anchor
23	Support, Channel (R.H.)
23	Support, Channel (L.H.)
24	Plug Button
25	locator, cooktop
25	Screw, 8-32 x 5/16 (2)
