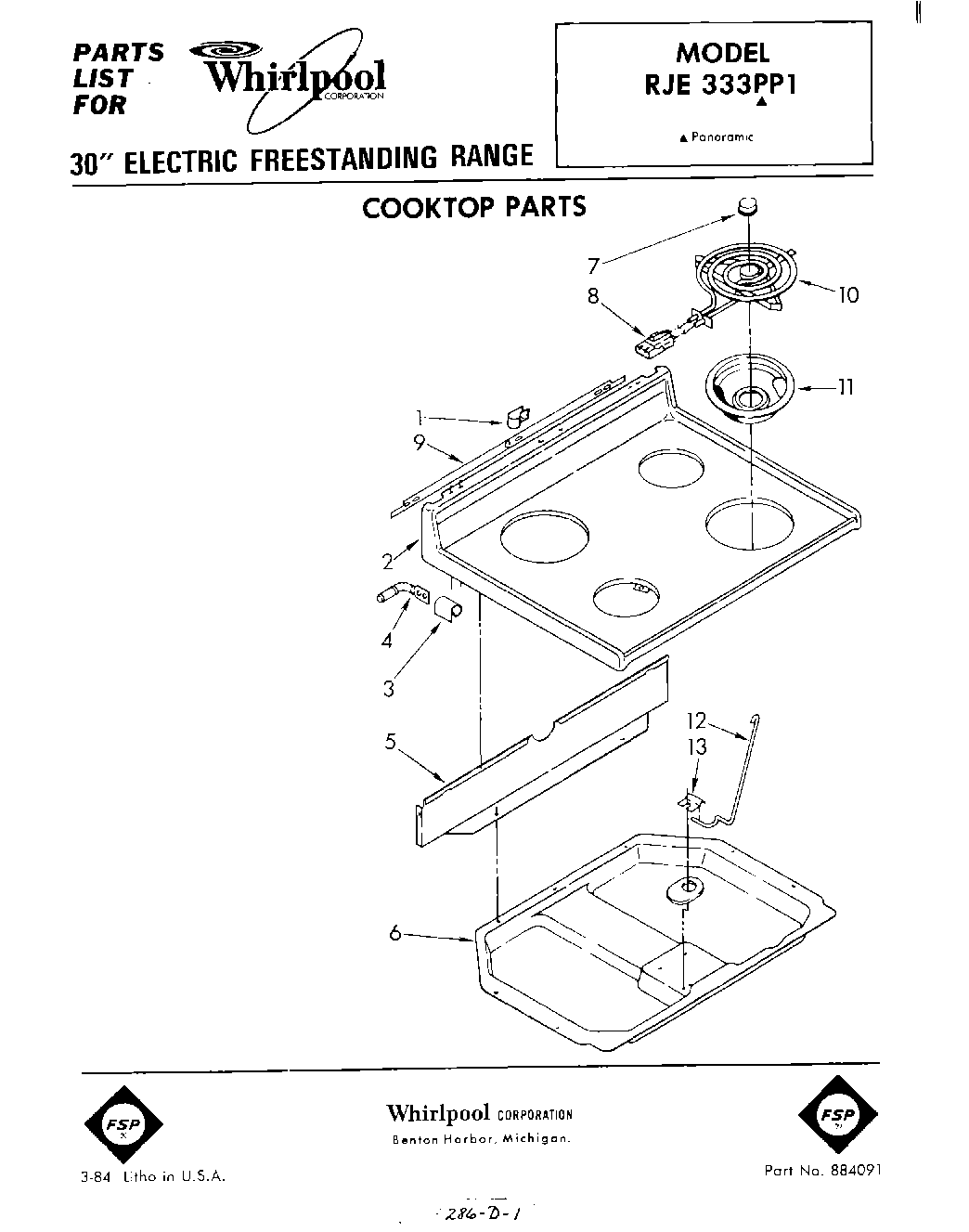

RJE333PP1 01 – COOKTOP

RJE333PP1 01 – COOKTOP

Written by

in

RJE333PP1 01 – COOKTOP

Products

PositionProduct
1WP308605 Whirlpool Refrigerator Clamp
2Cooktop (Chrome)
3Bracket, Cooktop (2)
4Pin, Cooktop (2)
5SCREW
5Shield, Wiring
6Burner Box
7Medallion (4)
8BURNER RECEPTACLE KIT
8WP313808 Whirlpool Screw
9Barrier
10WP660532 Whirlpool Oven Surface Element
10WP660533 Whirlpool Oven 8" Surface Element
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Rod, Cooktop
13Retainer, Cooktop
13WP3390631 Whirlpool Screw
