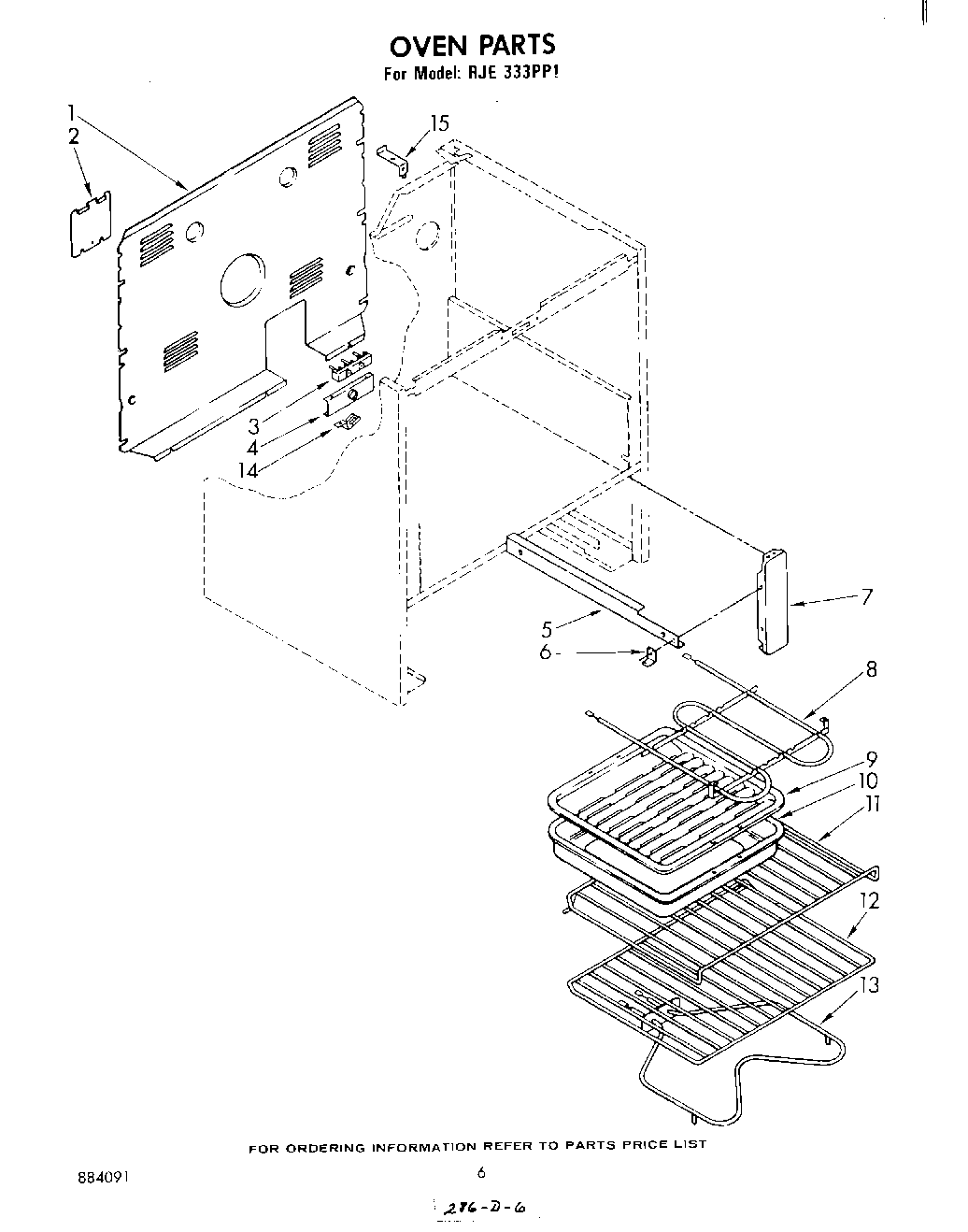

RJE333PP1 05 – SECTION

Products

Position	Product
1	Cover, Rear
2	Cover, Service
3	WP112432 Whirlpool Nut Assembly
3	Screw, (2) 10-16 x 1
3	WP8203546 Whirlpool Terminal Block
4	Bracket, Service
5	rail l.h. (includes illus. 3)
5	Rail R.H. (Includes Illus. 3)
6	Glide, Front (2)
6	Screw, 10A x 1/2 (2) (Black)
7	Bracket, Mounting (2)
8	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
9	4396923 Whirlpool Broil Pan Set Gray Porcelain
11	WPL 308172
12	WPL 308173
13	ELMNT-BAKE
13	Screw, 10-32 x 5/8 (4)
14	WPL 308498
15	16515 Whirlpool Clip
15	WPL 309102
15	SCREW
