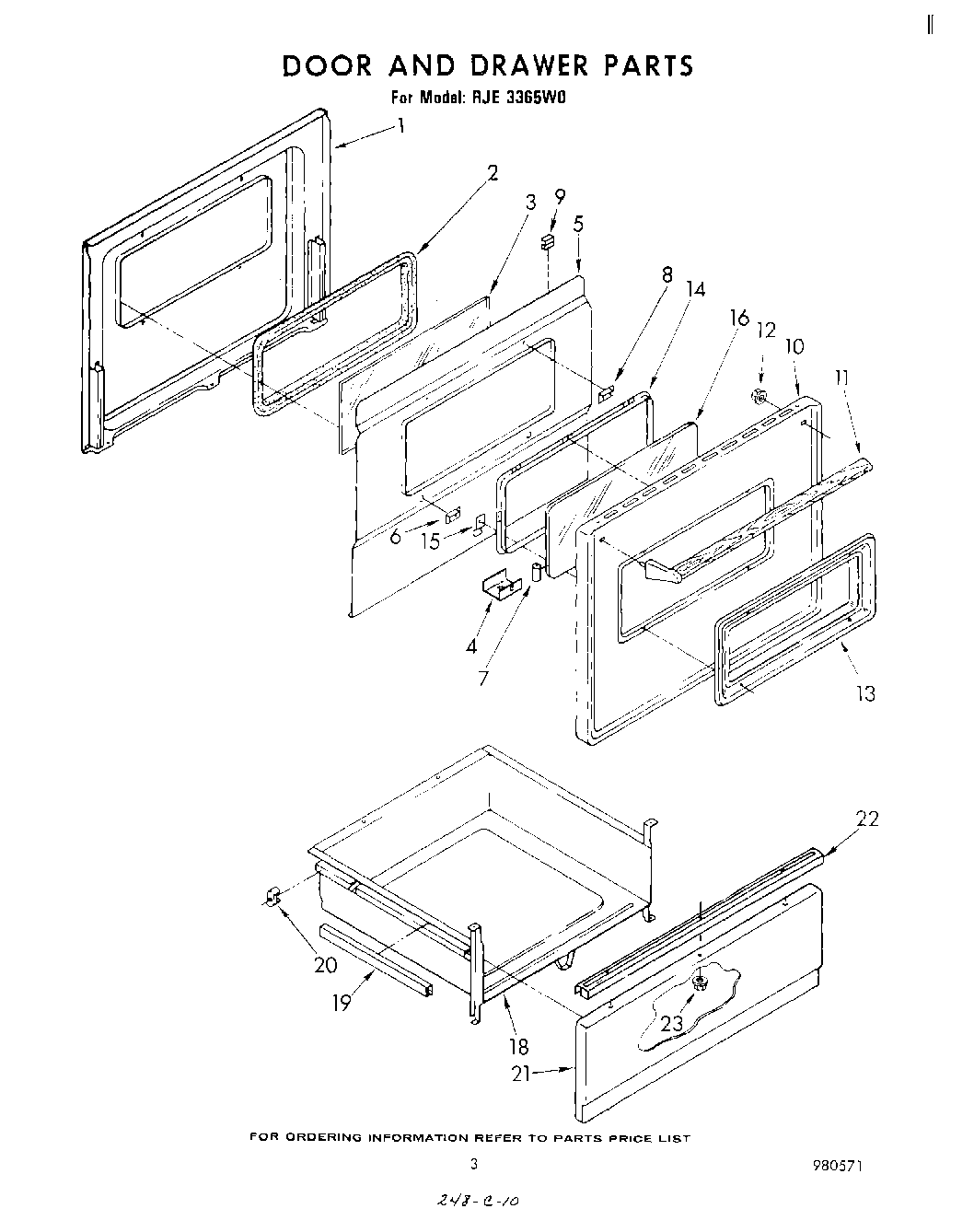

RJE3365W0 03 – DOOR AND DRAWER

Products

PositionProduct
1WP488627 Whirlpool Refrigerator Screw
1Liner, Door
1Clip (2)
1Screw (3)
2Seal, Window (Large)
3Glass, Inner
4Spacer, Baffle (2)
5Baffle, Insulation
6Screw, 10A x 1/2 (2) (Black)
7Cushion, Oven Door (3)
8spacer, insulation baffle (4)
9channel, rubber (4)
10Panel, Oven Door (White)
10Panel, Oven Door (New Avocado)
10Panel, Oven Door (Coffee)
10Panel, Oven Door (Harvest Gold)
10Panel, Oven Door (Almond)
11Handle, Oven Door
12WP308499 Whirlpool Nut
13Frame, Window (30“ Large)
14Retainer, Glass
14Screw
15Clip, Frame
16Screw
16Glass, Outer
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
20WP308685 Whirlpool Microwave Screw
21Panel, Lower (Coffee)
21Panel, Drawer (Almond)
21Panel Drawer (White)
21Panel, Drawer (Screw, 8-32 (3))
21Panel, Drawer (New Avocado)
21Panel Drawer (Harvest Gold)
21Panel Drawer (Black)
22WP912618 Whirlpool Dishwasher Screw
22Handle, Drawer
23WP486255 Whirlpool Air Conditioner Nut
